REAR BRAKE ASSEMBLY 2x4 300 W947530 (4926742674B014)

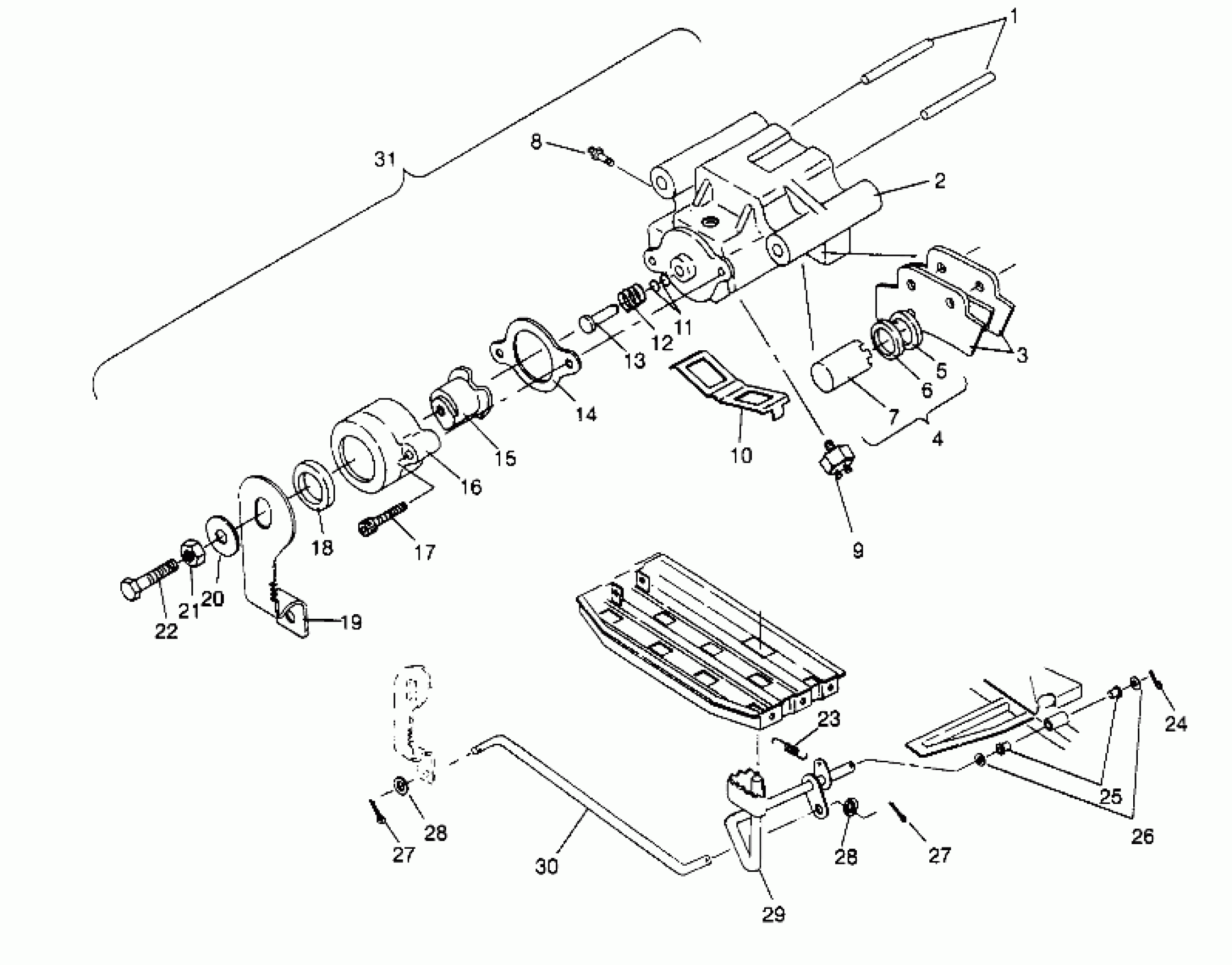

Polaris 300 2X4 - W947530 REAR BRAKE ASSEMBLY 2x4 300 W947530 (4926742674B014) Diagram
#
Description
Price
1
PIN, DOWEL(10)
7661820
$13.99
2
CALIPER,BRAKE,MACH. Substituted by 5131117
5130946
Unavailable
3
KIT,BRAKEPAD,REAR
2200464
$31.99
4
KIT-PISTON & SEAL (Incl. 5-7)
2200463
$87.99
5
Square Ring (.134 Sq.)
-------
Unavailable
6
Square Ring (.099 Sq.)
-------
Unavailable
7
PISTON,BRAKE Substituted by 2200463
5020667
$84.93
8
SCREW,BLEEDER
7080352
$3.19
9
SWITCH,STOPLIGHT
4110164
Unavailable
10
SPRING,ANTI-RATTLE
5222232
Unavailable
11
O RING-.364X.504X.07
5410542
Unavailable
12
SPRING,BRAKE,COMP.
7041219
$24.99
13
PIN,BRAKE CALIPER
5020666
Unavailable
14
GASKET, BRAKE
5830009
$9.99
15
RAMP,MOVEABLE BRAKE Substituted by 2200905
5630458
Unavailable
16
RAMP, STAT.BRAKE Substituted by 2200905
5630457
Unavailable
17
SCREW(10)
7512173
Unavailable
18
SEAL, BRAKE
3610026
$7.99
19
ARM,BRAKE CALIPER
5240624
Unavailable
20
WASHER, SPRING(10)
7555828
Unavailable
21
NUT(10)
7542129
$4.79
22
BOLT
7515145
Unavailable
23
SPRING-EXHAUST(10)
7042029
$4.84
24
COTTER PIN(10)
7661401
$1.49
25
BUSHING-PEDAL PIVOT
5431107
$8.79
26
WASHER THRUST(10)
7558702
$1.59
27
PIN COTTER(10)
7661203
$1.49
27
PIN COTTER(10)
7661203
$1.49
28
WASHER(10)
7555806
$1.49
28
WASHER(10)
7555806
$1.49
29
FOOTBRAKE,BLK.
1910144-067
Unavailable
30
ROD, BRAKE
5224531
$51.99
31
CAL.ASM,REAR BRAKE Substituted by 1910180 (Incl. 1-22)
1910156
Unavailable
