Description

Price

-

RING,PISTON,(.50MM O/S),(2) (.020"/0.50mm O/S)

3084811

Unavailable

1

RING,PISTON,(.25MM O/S),(2) (.010"/0.25mm O/S)

3084810

Unavailable

1

RING,PISTON,STD.(2) (Std.)

3084809

Unavailable

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

PISTON ASM,STD. Substituted by 3085099 (Std.)

3084806

Unavailable

3

PISTON ASM,(.25MM O/S) Substituted by 3085100 (.010"/0.25mm O/S)

3084807

Unavailable

3

PISTON ASM,(.50MM O/S) Substituted by 3085101 (.020"/0.50mm O/S)

3084808

Unavailable

4

PIN, PISTON

3083858

$23.99

5

ROD CONNECTING

3082790

Unavailable

6

BEARING, SMALL END

3083626

Unavailable

7

Bearing, Ball

3084580

$31.99

8

GEAR,CRANKSHAFT

3083745

Unavailable

9

KEY WOODRUFF

3081543

$12.94

10

WASHER Substituted by 3086767

3083904

Unavailable

11

LOCKNUT

3083905

Unavailable

12

CRANKSHAFT ASM. (Incl. 5,7,8,13-15,17)

3084803

Unavailable

12

CRANKSHAFT #1

3084804

Unavailable

13

Spacer

3083804

$19.99

14

BEARING,LGE.END

3083803

Unavailable

15

CRANKSHAFT #2

3084805

Unavailable

16

SPACER #2 Substituted by 3086766

3084779

Unavailable

16

SPACER #1 Substituted by 3086765

3084778

Unavailable

17

CRANK PIN PTO

3082796

$36.41

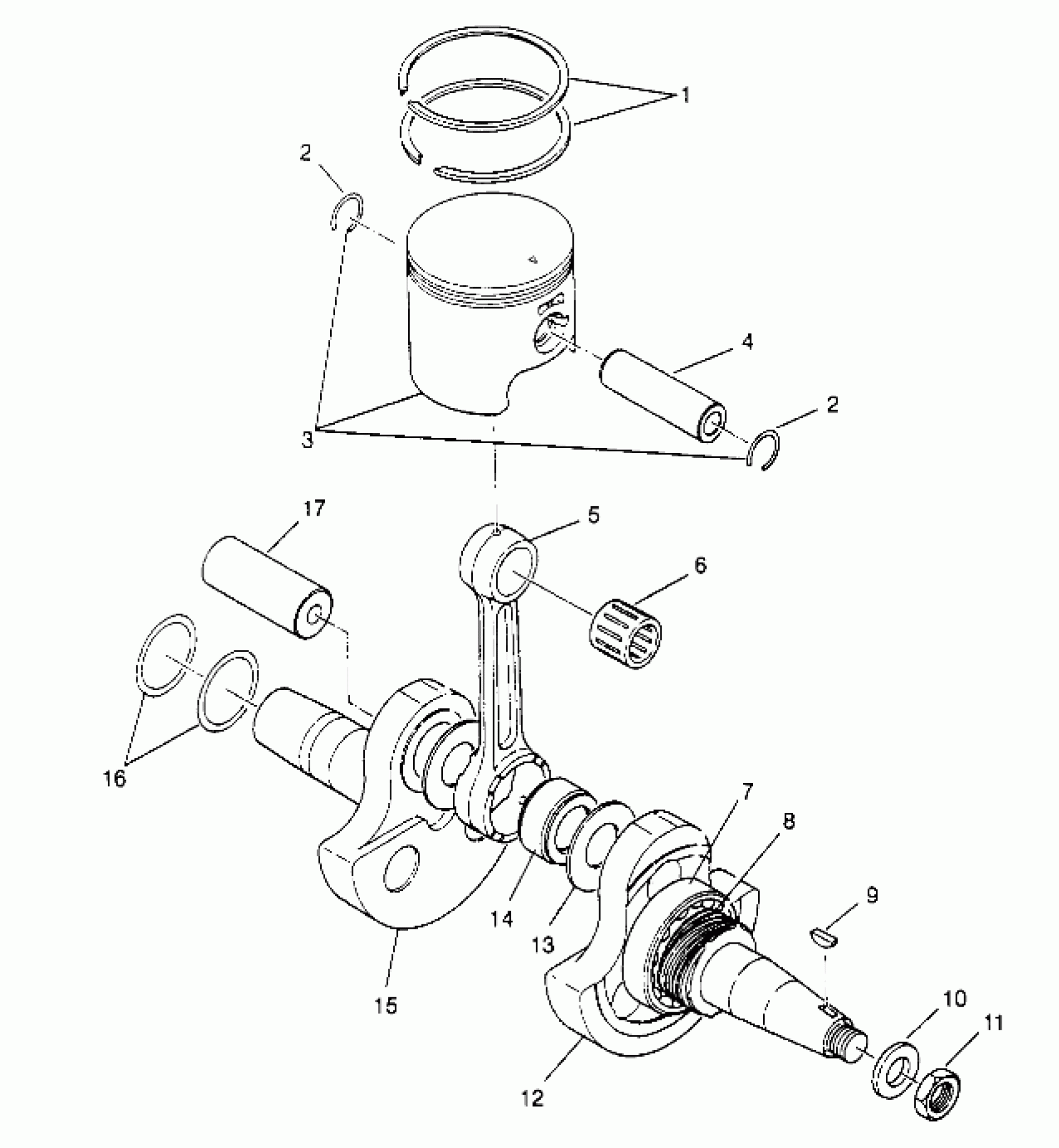

Polaris 300 2X4 - W947530 PISTON and CRANKSHAFT 2x4 300 W947530 (4926742674C009) Diagram

RING,PISTON,(.50MM O/S),(2) (.020"/0.50mm O/S)

RING,PISTON,(.25MM O/S),(2) (.010"/0.25mm O/S)

RING,PISTON,STD.(2) (Std.)

CLIP,(10)

CLIP,(10)

PISTON ASM,STD. Substituted by 3085099 (Std.)

PISTON ASM,(.25MM O/S) Substituted by 3085100 (.010"/0.25mm O/S)

PISTON ASM,(.50MM O/S) Substituted by 3085101 (.020"/0.50mm O/S)

PIN, PISTON

ROD CONNECTING

BEARING, SMALL END

Bearing, Ball

GEAR,CRANKSHAFT

KEY WOODRUFF

WASHER Substituted by 3086767

LOCKNUT

CRANKSHAFT ASM. (Incl. 5,7,8,13-15,17)

CRANKSHAFT #1

Spacer

BEARING,LGE.END

CRANKSHAFT #2

SPACER #2 Substituted by 3086766

SPACER #1 Substituted by 3086765

CRANK PIN PTO
