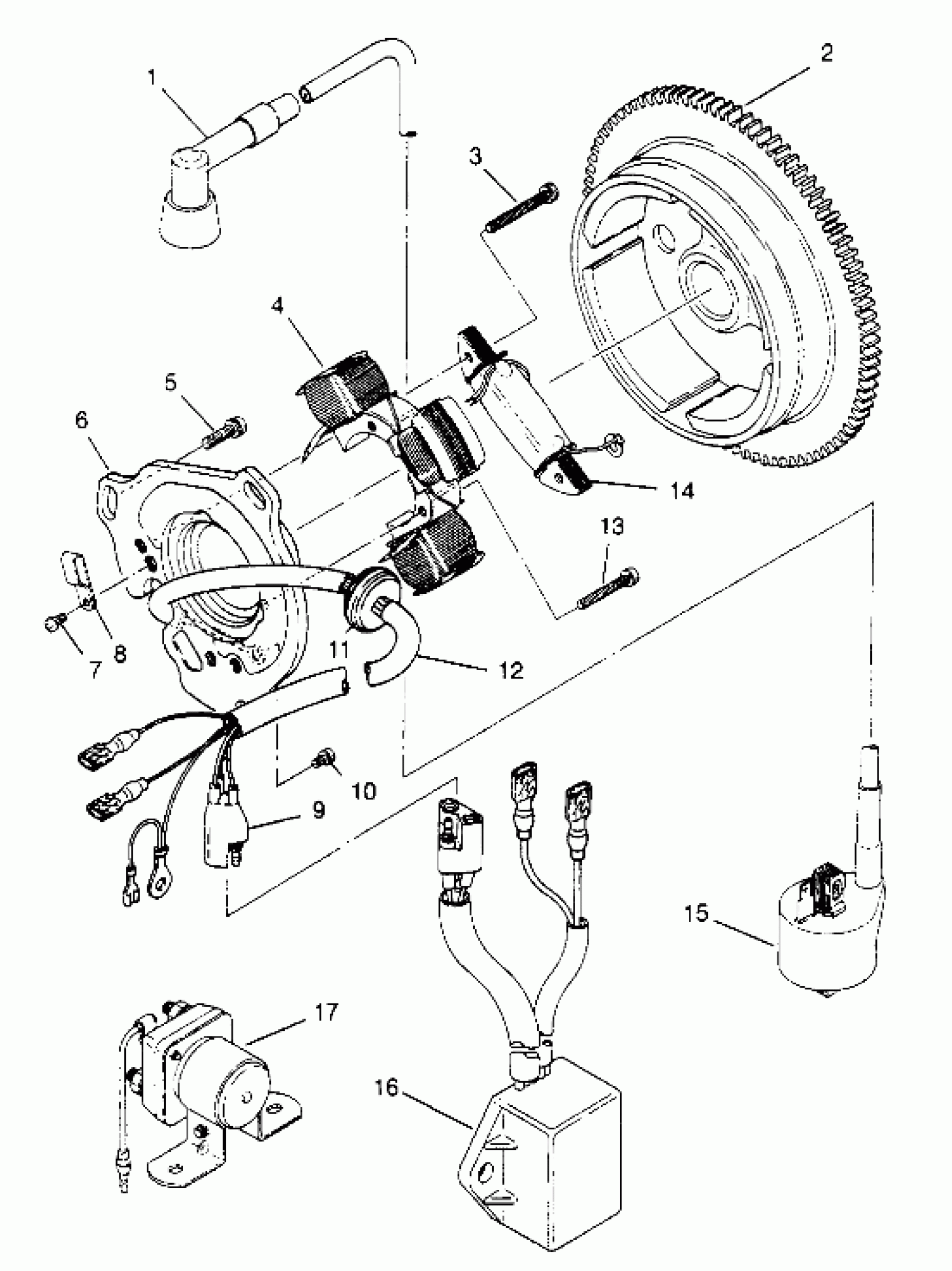

Polaris 300 2X4 - W947530 MAGNETO ASSEMBLY 2x4 300 W947530 (4926742674C014) Diagram

#

Description
Price

1

CAP SPARK PLUG,(10)

4020129

$9.70

2

FLYWHEEL,W/RING GEAR

3084813

Unavailable

3

SCREW W/WASHER

3081253

Unavailable

4

STATOR #1

3084817

Unavailable

5

SCREW AND WASHER ASSY.(10)

3082226

$1.49

6

PLATE ASM. (Incl. 3,4,7-14)

3084814

$368.99

6

PLATE,COIL

3084815

Unavailable

7

SCREW

3081467

Unavailable

8

Clamp

3081296

Unavailable

9

COUPLER

3083909

$23.99

10

SCREW&WASHER,(10)

3081260

$3.19

11

GROMMET

3084819

Unavailable

12

HARNESS,WIRE (Incl. 9,11)

3084816

Unavailable

13

SCREW&WASHER ASM.

3084818

$1.75

14

Coil, Exciting

3083422

Unavailable

15

COIL, IGNITION *

3083923

Unavailable

16

CDI SYSTEM

3084820

Unavailable

17

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable
