Description

Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

5

Asm., Brake Caliper , Rear (See Pg. A28, Ref. 31)

-------

Unavailable

6

PLATE,BOLT LOCK

5220958

$35.99

6

PLATE,BOLT LOCK

5220958

$35.99

7

BOLT, SHOULDER

7512702

Unavailable

8

DISC,BRAKE Substituted by 1910177

1910148

Unavailable

9

BRACE,BULKHEAD,BLK.

1040414-067

Unavailable

10

NUT,FLANGE LOCK(10)

7542449

$3.99

11

BOLT(10)

7515522

$3.99

11

BOLT(10)

7515522

$3.99

12

WASHER(10)

7552603

$1.49

12

WASHER(10)

7552603

$1.49

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

Asm., Gearcase (See Pg. A31)

-------

Unavailable

15

BOLT, SHOULDER (LH Side)

7512701

$23.99

16

BOLT(10)

7515472

$2.39

17

NUT LOCK(10)

7542403

$3.99

18

SPACER,BRAKE DISC GUARD

5333255

$5.03

19

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

20

BOLT(10) Substituted by 7515339

7515328

Unavailable

21

WASHER(10)

7552606

$4.79

22

WASHER(10) Substituted by 7558402

7555770

Unavailable

23

GUARD, BRAKE DISC

5431766

Unavailable

24

WASHER(10) Substituted by 7558301

7555776

Unavailable

25

SCREW(10)

7512252

Unavailable

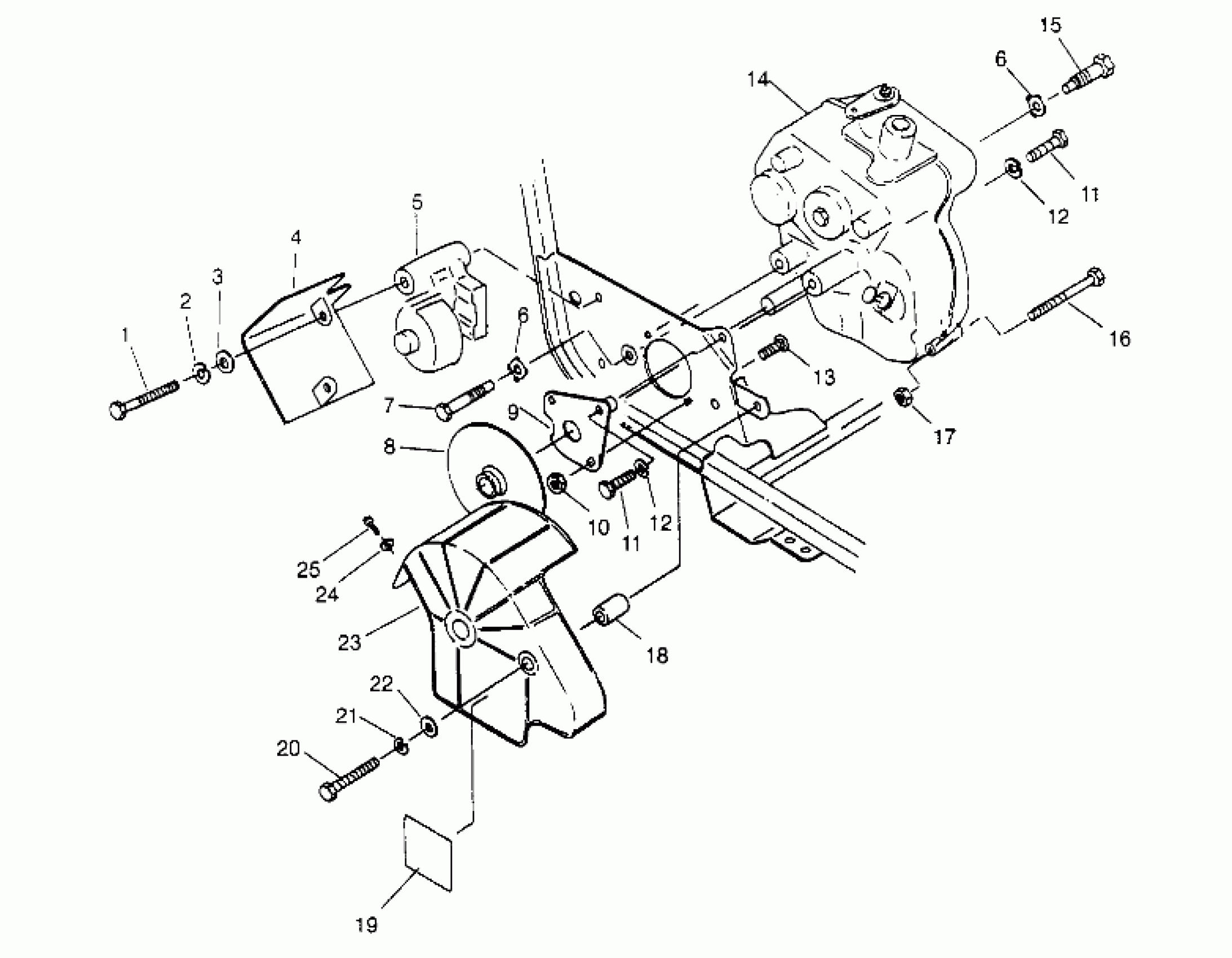

Polaris 300 2X4 - W947530 GEARCASE/BRAKE MOUNTING 2x4 300 W947530 (4926742674B013) Diagram

BOLT(10)

LOCK WASHER(10)

WASHER-.344X.688X.063 FL-Y

SHIELD,R.CALIPER,BLK.

Asm., Brake Caliper , Rear (See Pg. A28, Ref. 31)

PLATE,BOLT LOCK

PLATE,BOLT LOCK

BOLT, SHOULDER

DISC,BRAKE Substituted by 1910177

BRACE,BULKHEAD,BLK.

NUT,FLANGE LOCK(10)

BOLT(10)

BOLT(10)

WASHER(10)

WASHER(10)

BOLT,CARRIAGE(10)

Asm., Gearcase (See Pg. A31)

BOLT, SHOULDER (LH Side)

BOLT(10)

NUT LOCK(10)

SPACER,BRAKE DISC GUARD

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

BOLT(10) Substituted by 7515339

WASHER(10)

WASHER(10) Substituted by 7558402

GUARD, BRAKE DISC

WASHER(10) Substituted by 7558301

SCREW(10)
