GEARCASE ASSEMBLY 2x4 300 W947530 (4926742674C003)

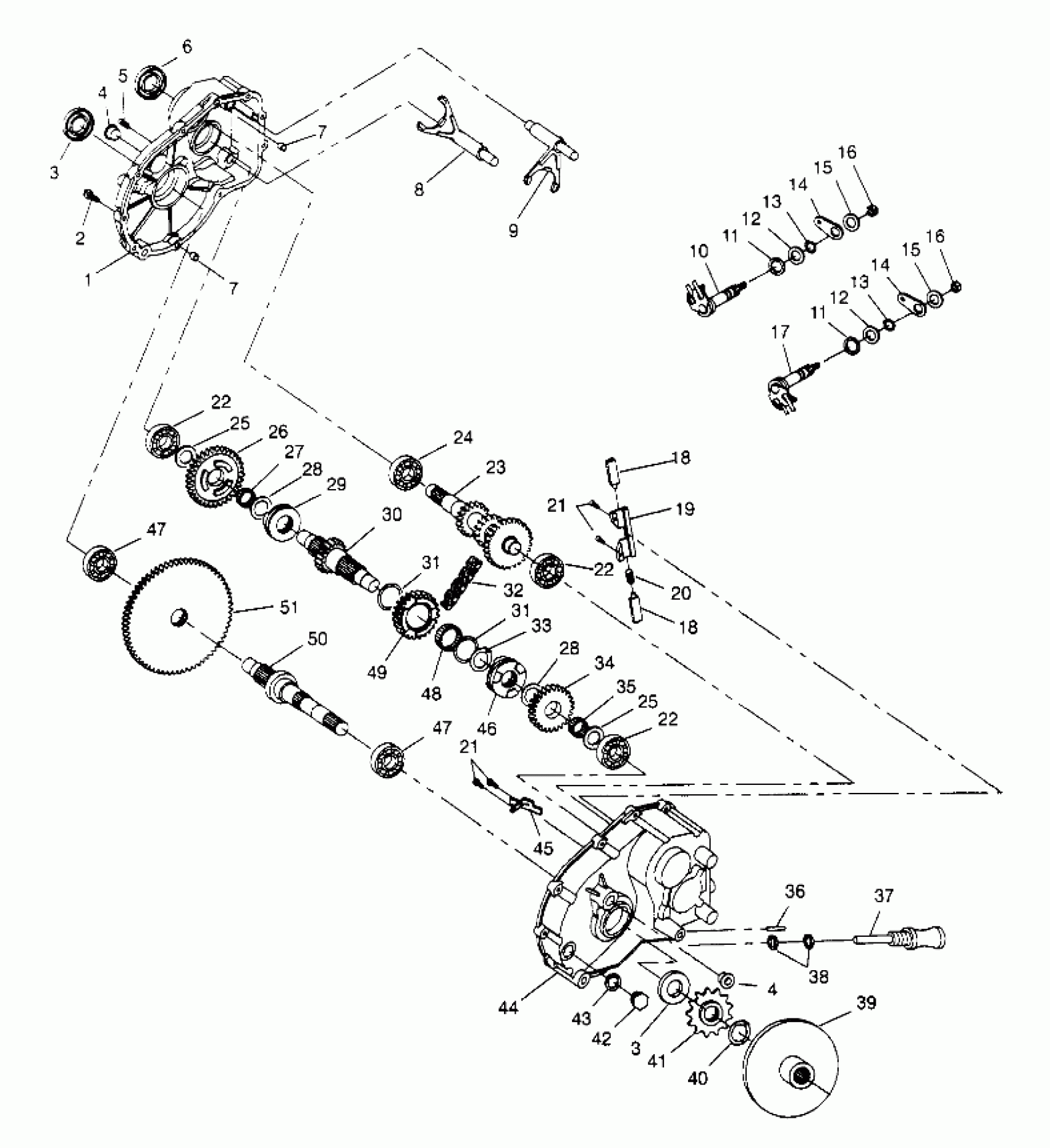

Polaris 300 2X4 - W947530 GEARCASE ASSEMBLY 2x4 300 W947530 (4926742674C003) Diagram
#
-
GEARCASE ASM,PRD. Substituted by 1341147 (Incl. 1-51)
1341125
Unavailable
1
CASE, LH
3233002
Unavailable
2
Screw
3233026
$6.46
3
SEAL Substituted by 3233248
3233096
Unavailable
3
SEAL Substituted by 3233248
3233096
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
5
STUD
3233025
Unavailable
6
SEAL Substituted by 3233248
3233097
$30.88
7
PIPE, KNOCK
3233021
Unavailable
7
PIPE, KNOCK
3233021
Unavailable
8
SHIFTRAIL,LOW
3233022
Unavailable
9
SHIFTRAIL,HIGH/REV.
3233023
Unavailable
10
SHAFT,LOW SHIFT
3233038
Unavailable
11
O-RING Substituted by 3233548
3233044
Unavailable
11
O-RING Substituted by 3233548
3233044
Unavailable
12
Washer
3233040
$9.59
12
Washer
3233040
$9.59
13
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
13
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
14
Bellcrank
3233153
$27.99
14
Bellcrank
3233153
$27.99
15
Washer
3233054
$6.46
15
Washer
3233054
$6.46
16
Nut
3233055
Unavailable
16
Nut
3233055
Unavailable
17
SHAFT,HI/REV,SHIFT
3233039
Unavailable
18
PIN
3233031
$32.11
18
PIN
3233031
$32.11
19
BRACKET
3233030
$21.43
20
Spring
3233032
$12.94
21
SCREW Substituted by 3233747
3233033
Unavailable
21
SCREW Substituted by 3233747
3233033
Unavailable
22
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
22
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
22
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
23
SHAFT, INPUT
3233122
Unavailable
24
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
25
WASHER
3233007
Unavailable
25
WASHER
3233007
Unavailable
26
GEAR, 33T
3233125
Unavailable
27
BEARING,NEEDLE
3233009
$39.99
28
Washer
3233010
Unavailable
28
Washer
3233010
Unavailable
29
DOG,ENGAGEMENT,LOW
3233126
Unavailable
30
SHAFT,REVERSE
3233124
Unavailable
31
WASHER
3233012
Unavailable
31
WASHER
3233012
Unavailable
32
CHAIN,SILENT,34P
3233036
Unavailable
33
RING,RETAINING
3233029
$5.59
34
GEAR, 25T
3233129
Unavailable
35
BEARING,NEEDLE
3233017
$35.99
36
Vent
3233037
Unavailable
37
DIPSTICK Substituted by 3233115
3233034
Unavailable
38
O-RING
3233053
Unavailable
39
DISC,BRAKE Substituted by 1910177
1910148
Unavailable
40
RING,SNAP(10)
7710434
$3.99
41
SPKT, 12T
3221044
$43.99
42
PLUG,OIL DRAIN Substituted by 3233448
3233028
$23.81
43
Washer
3233035
Unavailable
44
CASE, RH
3233003
Unavailable
45
DEFLECTOR,OIL
3233043
$13.19
46
DOG,ENGAGEMENT,HI/REV.
3233128
Unavailable
47
BEARING
3233020
$47.99
47
BEARING
3233020
$47.99
48
BEARING, NEEDLE
3233014
$43.99
49
SPROCKET, 24T
3233127
Unavailable
50
SHAFT,OUTPUT
3233140
Unavailable
51
GEAR, 65T
3233130
$214.75
