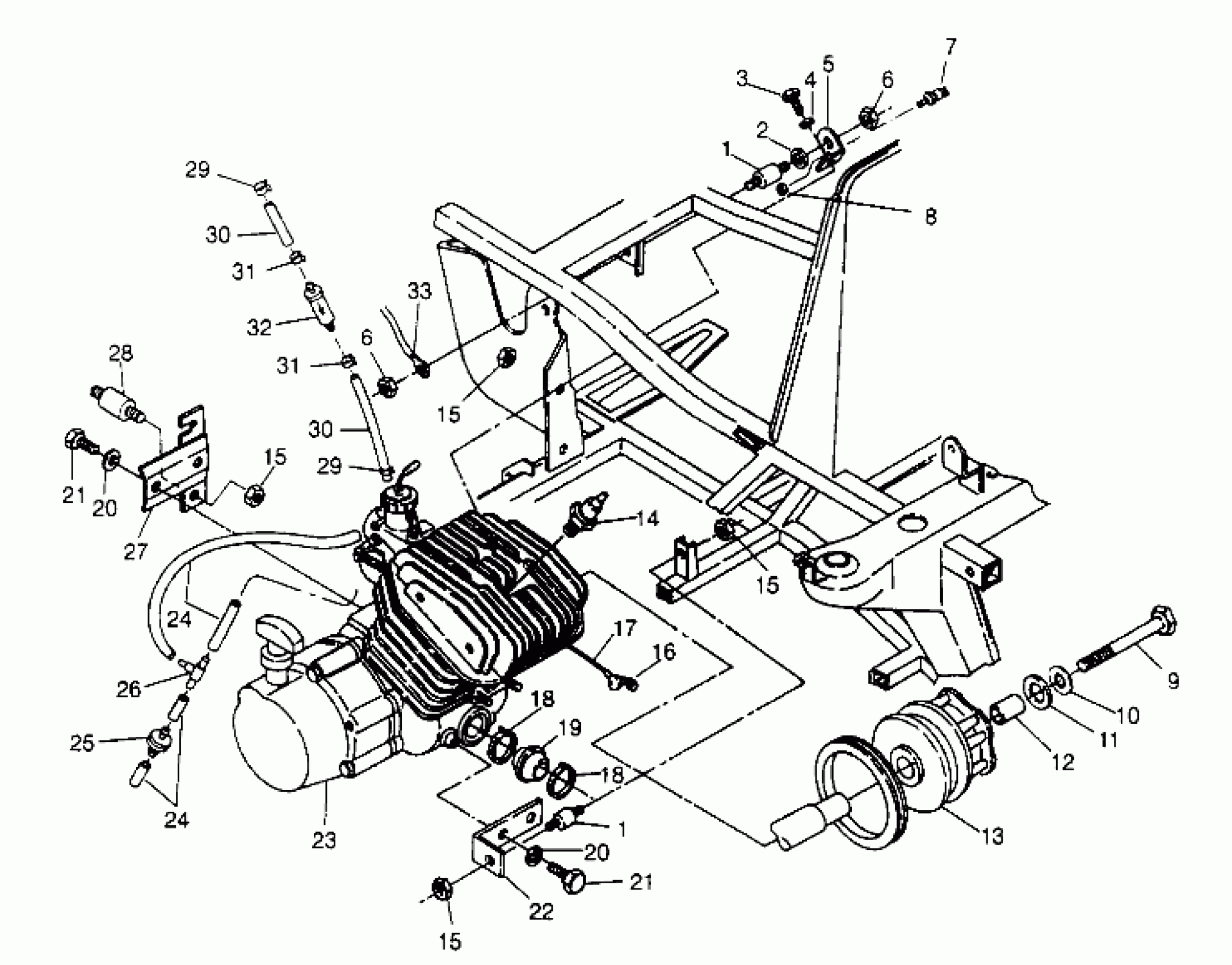

Polaris 300 2X4 - W947530 ENGINE MOUNTING 2x4 300 W947530 (4926742674A008) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT,ENG.TOP,BLK.

5240704-067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

THERMOSTAT,COOL.FAN Substituted by 4010211

4110114

Unavailable

8

NUT(10)

7541925

$1.49

9

BOLT(10)

7512566

$30.79

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

11

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

12

BUSHING-.437 X.770 X.50

5430261

$7.19

13

Asm., Drive Clutch (See Pg.)

-------

Unavailable

14

SPARKPLUG (10)

3070156

$3.99

15

NUT-LOCK(10)

7542439

$1.49

15

NUT-LOCK(10)

7542439

$1.49

15

NUT-LOCK(10)

7542439

$1.49

15

NUT-LOCK(10)

7542439

$1.49

16

INSULATOR-CABLE

5410346

$6.39

17

CABLE,SOLENOID/STARTER

4010064

Unavailable

18

CLAMP, NARROW BAND(10)

7080511

$4.79

18

CLAMP, NARROW BAND(10)

7080511

$4.79

19

BOOT,CLUTCH INTAKE

5410421

$11.19

20

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

20

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

21

SCREW(10)

7512490

$3.99

21

SCREW(10)

7512490

$3.99

22

PLATE,FR.MTR.MT.

5220881-067

Unavailable

23

ENG.EC28PF-01 [No Longer Available]

1211553

Unavailable

24

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

24

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

25

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

26

Fitting, Tee

7052005

Unavailable

27

MOUNT,REAR,BLK.

5240703-067

Unavailable

28

MOUNT, MOTOR

3110028

Unavailable

29

STRAP,8 IN.TYTON

7080571

$2.47

29

STRAP,8 IN.TYTON

7080571

$2.47

30

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

30

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

31

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

31

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

32

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

33

CABLE,GROUND/ENG.

4010067

Unavailable
