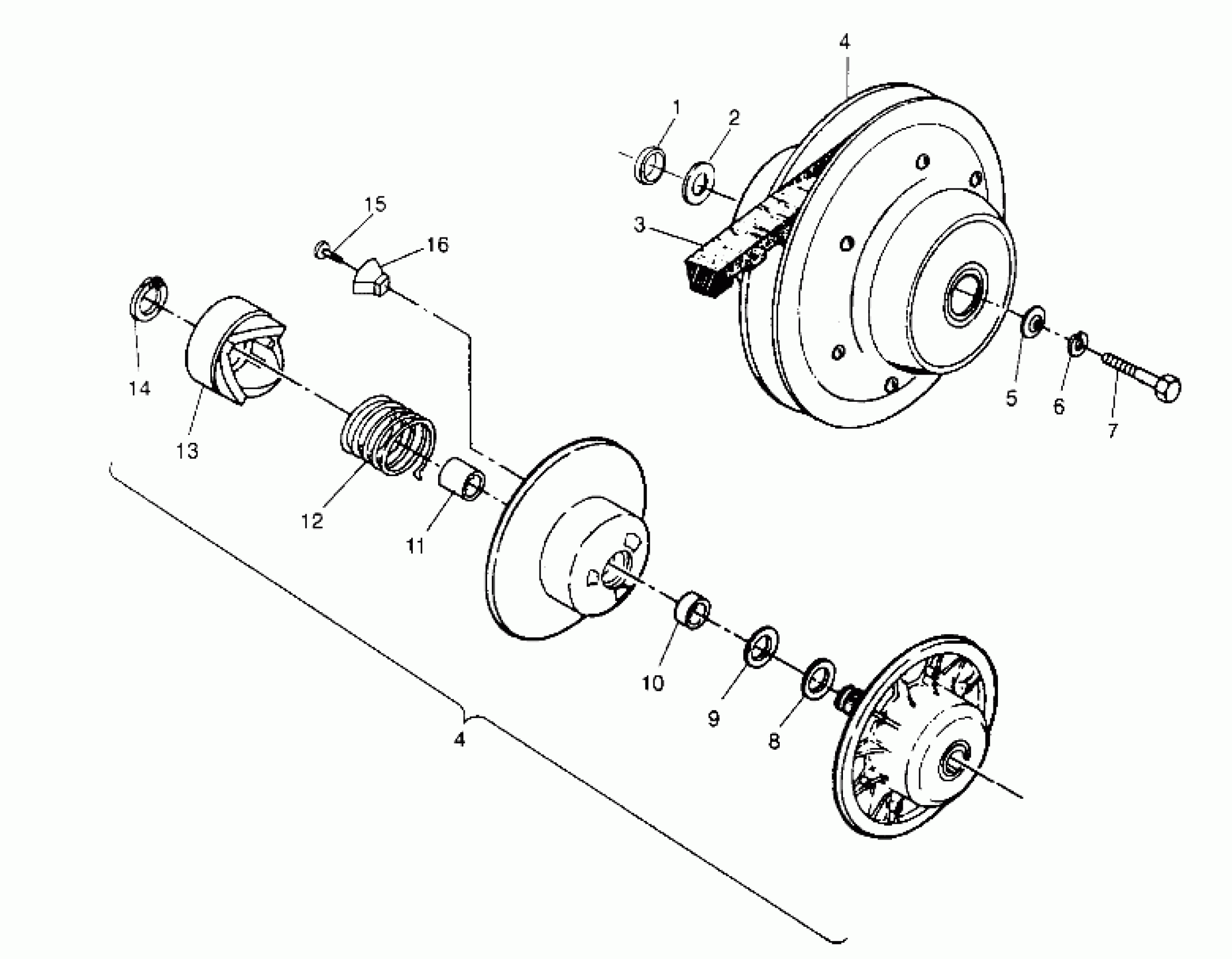

Polaris 300 2X4 - W947530 DRIVEN CLUTCH ASSEMBLY 2x4 300 W947530 (4926742674B011) Diagram

#

Description
Price

1

BUSHING(10)

7556406

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

BELT-DRIVE(5) Substituted by 3211077

3211048

$75.99

4

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182

1322163

$619.99

4

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182

1322163

$619.99

5

WASHER, DOMED(10)

5220646

$2.38

6

LOCK WASHER(10)

7552901

$1.19

7

BOLT(10)

7515382

$2.38

8

WASHER(10)

7555898

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.81

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

12

SPRING,CLUTCH,(RED)

7041198

$56.65

13

RAMP,STATIONARY Substituted by 5131447

5630321

$80.94

14

RETAINING RING(10)

7714401

$2.62

15

BOLT(10)

7511854

$1.19

16

BUTTON,RAMP

5430766

$6.35
