CRANKCASE and CYLINDER 2x4 300 W947530 (4926742674C007)

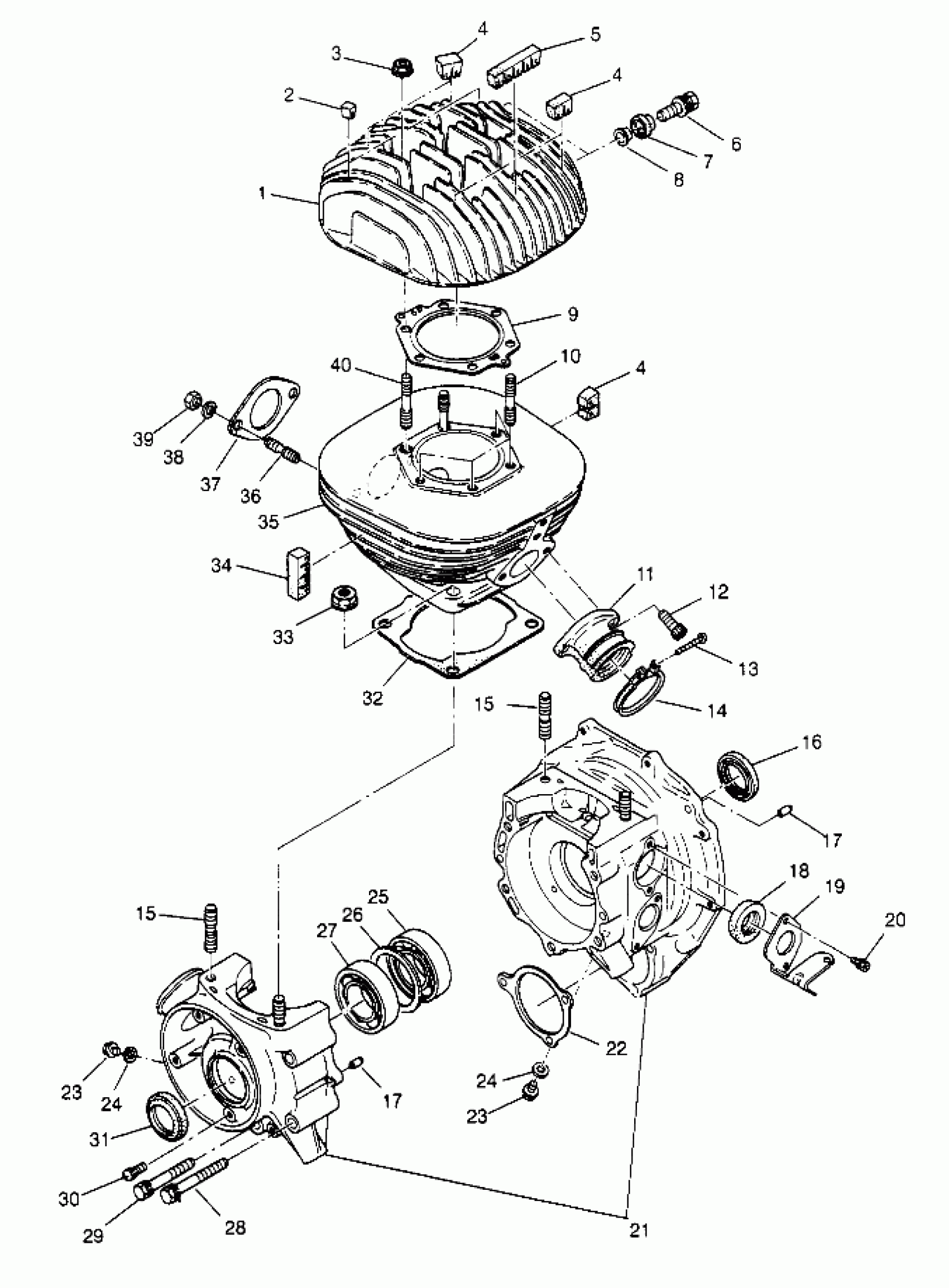

Polaris 300 2X4 - W947530 CRANKCASE and CYLINDER 2x4 300 W947530 (4926742674C007) Diagram
#
1
HEAD,CYLINDER
3084796
Unavailable
2
FIN DAMPER #2
3083930
Unavailable
3
NUT-FLANGE(10)
3082910
$2.39
4
FIN DAMPER B
3084799
Unavailable
4
FIN DAMPER B
3084799
Unavailable
4
FIN DAMPER B
3084799
Unavailable
5
Fin Damper A
3084798
$31.99
6
BOLT&WASHER
3083730
$4.79
7
MOUNTING,RUBBER
3083731
$4.95
8
COLLAR
3083732
Unavailable
9
GASKET,HEAD (Head)
3084797
Unavailable
10
Stud
3080283
$12.94
11
ADAPTER, CARB. Substituted by 3085013
3083412
$100.38
12
Bolt, Allen
3081330
$3.99
13
SCREW,(10)
3081497
$2.39
14
BAND-CARB MTG. (Incl. 13)
3082257
Unavailable
15
Stud
3084119
$9.59
15
Stud
3084119
$9.59
16
SEAL,OIL Substituted by 3082162
3080006
$38.60
17
PIN, DOWEL Substituted by 3086838
3080103
$7.14
17
PIN, DOWEL Substituted by 3086838
3080103
$7.14
18
GROMMET
3084801
$5.03
19
BRACKET,WIRE
3084800
Unavailable
20
BOLT&WASHER ASM.(10)
3084802
$1.49
21
CRANKCASE ASM. (Incl. 15-17,25-29,31)
3084791
Unavailable
22
GASKET, STARTER Substituted by 3085283
3084018
Unavailable
23
PLUG, DRAIN
3083767
Unavailable
23
PLUG, DRAIN
3083767
Unavailable
24
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
24
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
25
Bearing, Ball
3084775
$43.99
26
SPACER
3084792
Unavailable
27
Bearing, Ball
3084121
$39.99
28
BOLT W/WASHER
3080739
$6.39
29
BOLT&WASHER ASSY.
3083615
Unavailable
30
SCREW&WASHER ASM.
3081635
Unavailable
31
SEAL, OIL, PTO (PTO)
3084581
$28.32
32
GASKET,CYL,NA
3084795
Unavailable
33
NUT-FLANGE(10)
3082911
$1.99
34
FIN DAMPER #1
3083929
Unavailable
35
CYLINDER (Incl. 10,36,40)
3084793
Unavailable
36
STUD (10)
3080016
$5.75
37
GASKET,EXHAUST Substituted by 3084439
3084017
Unavailable
38
WASHER LOCK ,(10)
3080530
$3.19
39
NUT(10)
3080285
Unavailable
40
STUD
3084794
Unavailable
