CONTROLS - MASTER CYLINDER/BRAKE LINE 2x4 300 W947530 (4926742674B008)

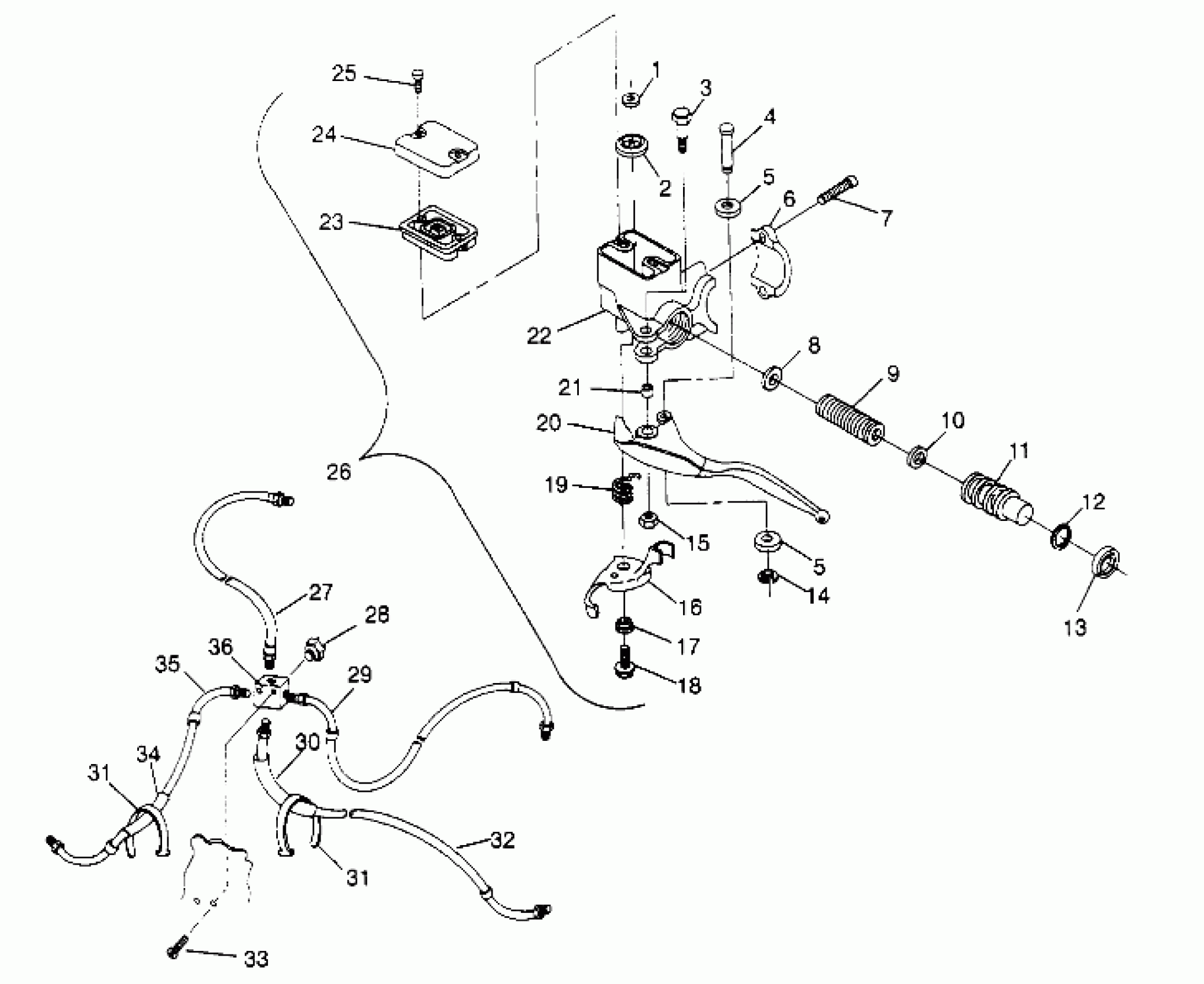

Polaris 300 2X4 - W947530 CONTROLS - MASTER CYLINDER/BRAKE LINE 2x4 300 W947530 (4926742674B008) Diagram
#
1
WASHER, BAFFLE(10)
1930662
Unavailable
2
BAFFLE,MASTER CYL.
1930673
Unavailable
3
BOLT,BRAKE LEVER(10)
7512287
Unavailable
4
PIN,BRAKELEVER ROLLER
7661627
Unavailable
5
ROLLER, BRAKE LEVER
5020598
Unavailable
5
ROLLER, BRAKE LEVER
5020598
Unavailable
6
CLAMP, MASTER CYL.
5630342
Unavailable
7
BOLT,SOCKET HEAD(10)
7512290
$4.79
8
WASHER(10)
7555708
$3.99
9
SPRING, MASTERCYL.
7041311
Unavailable
10
SEALCUP, MASTER CYL. Substituted by 5410994
5410784
Unavailable
11
PISTON, MASTER CYL.
5020671
$47.99
12
O RING
5410163
$1.60
13
SEAL, OIL
3610022
Unavailable
14
RING, RETAINING(10)
7710425
Unavailable
15
NUT(10)
7542124
Unavailable
16
LEVER,PARKBRAKE,ATV
5240865
Unavailable
17
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
18
SCREW(10)
7511876
Unavailable
19
SPRING,PK.BRAKE
7041229
$32.37
20
LEVER, BRAKE,(ATV)
5630455
Unavailable
21
BUSHING,BRAKE LEVER
5332931
Unavailable
22
HOUSING,MASTERCYL.
5130955
$293.65
23
GASKET,MASTER CYL.
5410527
$8.99
24
COVER,MASTER CYL.
5630338
Unavailable
25
SCREW,W/WASHER(10)
7512050
$3.99
26
MASTER CYL.ASM. Substituted by 2050073 (Incl. 1-25)
2050062
$235.51
27
LINE,BRAKE,UP./FTGS.
1930748
$87.99
28
SWITCH,STOPLIGHT
4110164
Unavailable
29
LINE,BRAKE,REAR
1930751
Unavailable
30
CONDUIT, 30 CM. Substituted by 8360011-34
8360031-30
Unavailable
31
STRAP, BLK
7080272
Unavailable
31
STRAP, BLK
7080272
Unavailable
32
LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752
1930631
$84.93
33
SCREW(10)
7512027
$1.49
34
CONDUIT, 38 CM.
8360031-38
$2.63
35
LINE,BRAKE,RH FRT. Substituted by 1930753
1930634
$84.93
36
FITTING,CROSS INVERT.FLARE
7052103
Unavailable
