Description

Price

1>115

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

5

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

10

RH Deflector, Black Polypropylene

518325782

$13.99

10

LH Deflector, Black Polypropylene

518325783

$13.99

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

30>30a

Front Radiator | Includes 10b to 10b2

518326485

$444.99

30>30a

Front Radiator | Includes 10b to 10b2

518326485

$444.99

40

LH Stirup

518326820

$37.99

45

Panel Nut M5 X 0.8

250000958

$4.23

50

Hemlock Rivet, 6.5 mm

293150119

$4.29

55

Hemlock Rivet, 6.4 mm

293150174

$7.86

65

Support

518326960

$12.99

70

Tork Screw M6 X 18

250000536

$2.11

75

Flat Washer

250200039

$0.74

80

Attach | Includes 10n to 10p

518326986

$12.99

80a

Clinch Stud M6 X 20

250300027

$2.09

85

Elastic Stop Nut M6

232561414

$0.55

90

Torx Screw M8 X 55

250000535

$3.17

95

Hex. Flange Screw M6 X 16

207661644

$0.74

105

Socket Screw Head 1/4-20 X 5/8''

250000512

$6.45

110

Elastic Hex. Flange Nut 1/4-20

250100140

$7.51

115

Monobolt Rivet, 4.8 mm

293150191

$0.99

118

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$769.99

120

RH Member

518326795

$284.99

125

LH Member

518326796

$229.99

130

Front Member

518326198

$64.99

130a

Clinch Stud

250300038

$4.29

140

Hemlock Rivet 6.5 mm

293150120

$7.41

150

RH Front Member

518325949

$19.99

150

LH Front Member

518325950

$19.49

160

Front Bottom Plate

518325951

$31.99

165

Avex Rivet

390909100

$0.30

170

Monobolt Rivet 6.4

293150182

$3.09

180

Hex. Flange Screw M6 X 10

210261040

$1.48

185

Flat Washer 6 mm

234061410

$1.36

190

RH Reinforcement

518324874

$27.99

190

LH Reinforcement

518324875

$27.99

200

RH Slide Bracket

518325955

$45.99

200

LH Slide Bracket

518325956

$49.99

210

RH Rear Base

518325973

$21.99

210

LH Rear Base | Includes 10v to 10x

518325974

$21.99

225

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

225

LH Roller | Includes 10bd to 10be

518325160

$78.99

260

Seal

518326656

$9.19

265>265a

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

265a

Stavex Rivet

293150144

$0.82

270

Rear Cap

518327105

$22.49

275

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

275a

Avex Rivet

390909200

$0.30

278

Full Moon Dart 5 mm

293730042

$2.21

282

Stavex Rivet

293150144

$0.82

284

Henrob Rivet

293150146

$2.09

286

Ornit Rivet 6,5 X 14.5

293150266

$2.40

290

U-Attach

518326961

$10.99

294

Tork Screw M6 X 16

250000534

$2.11

296

Hex. Flange Nut M6

233061414

$1.68

298

Pop Rivet 3/16"

390402400

$0.35

500>500a

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

700

Front Member, S Module

518328306

$244.99

740

Flat Washer

224061201

$1.37

780

Pop Rivet 3/16"

390402200

$0.35

900

Rear Member

518326559

$264.99

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300a

Black Rear Bumper, 154"

518326611

$111.99

1300b

Black RH Cap

520000965

$11.49

1300b

Black LH Cap

520000964

$11.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

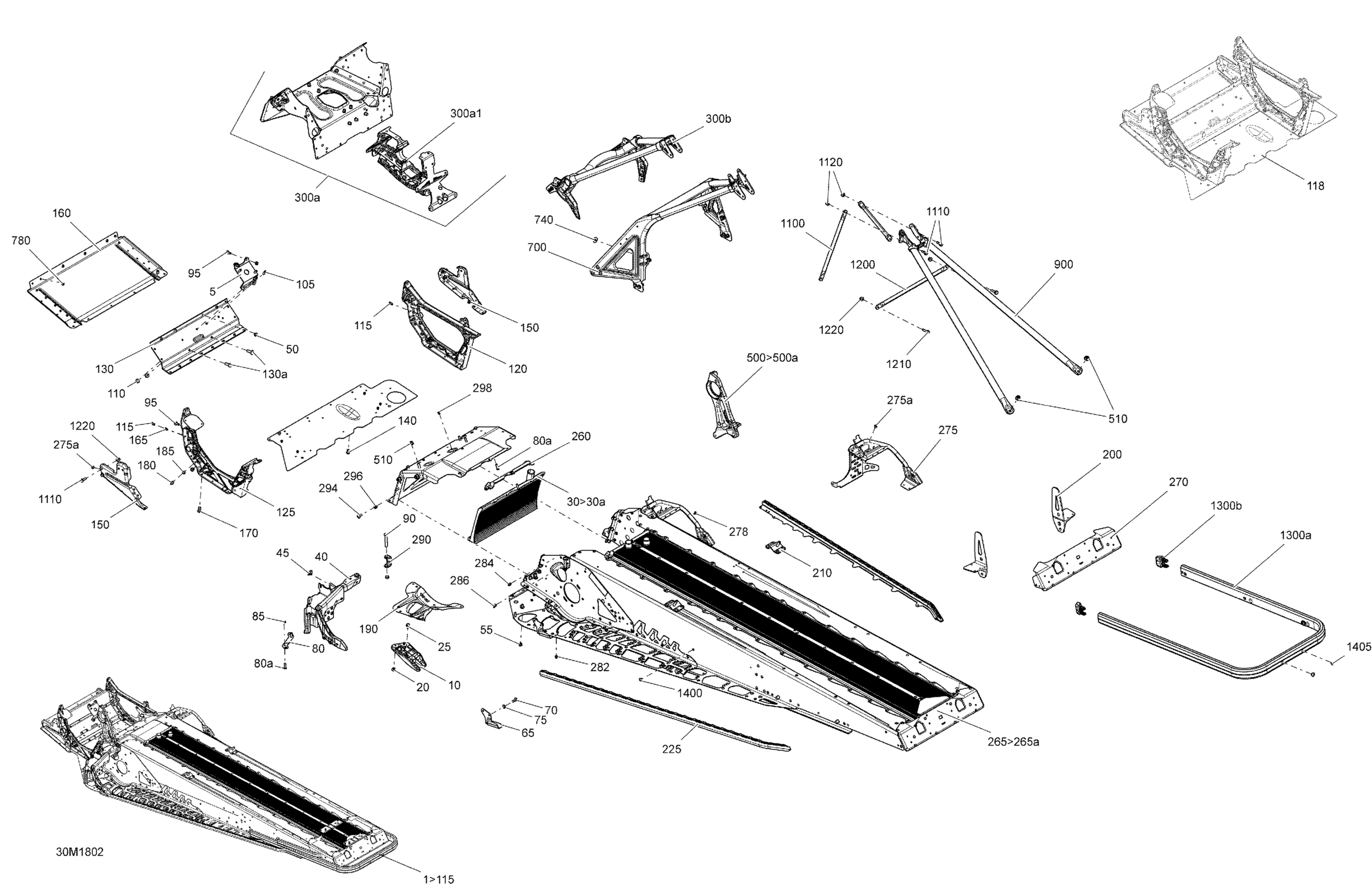

Ski-Doo 3- TUNDRA 600HO E-TEC, 2018 09- Frame Tundra - 600HO E-TEC Diagram

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

MAG Engine Support | Includes 10a to 10a1

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

Front Radiator | Includes 10b to 10b2

Front Radiator | Includes 10b to 10b2

LH Stirup

Panel Nut M5 X 0.8

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.4 mm

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Clinch Stud M6 X 20

Elastic Stop Nut M6

Torx Screw M8 X 55

Hex. Flange Screw M6 X 16

Socket Screw Head 1/4-20 X 5/8''

Elastic Hex. Flange Nut 1/4-20

Monobolt Rivet, 4.8 mm

Module E TUNDRA Xtreme | Includes 10av to 10w

RH Member

LH Member

Front Member

Clinch Stud

Hemlock Rivet 6.5 mm

RH Front Member

LH Front Member

Front Bottom Plate

Avex Rivet

Monobolt Rivet 6.4

Hex. Flange Screw M6 X 10

Flat Washer 6 mm

RH Reinforcement

LH Reinforcement

RH Slide Bracket

LH Slide Bracket

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

Seal

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

Avex Rivet

Full Moon Dart 5 mm

Stavex Rivet

Henrob Rivet

Ornit Rivet 6,5 X 14.5

U-Attach

Tork Screw M6 X 16

Hex. Flange Nut M6

Pop Rivet 3/16"

Driven Pulley Support This part replaces 518327133.

Hex. Flange Elastic Nut M8

Front Member, S Module

Flat Washer

Pop Rivet 3/16"

Rear Member

Upper Lateral Column Support

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Black Rear Bumper, 154"

Black RH Cap

Black LH Cap

Black, Dart 8 mm

Black, Dart 10 mm
