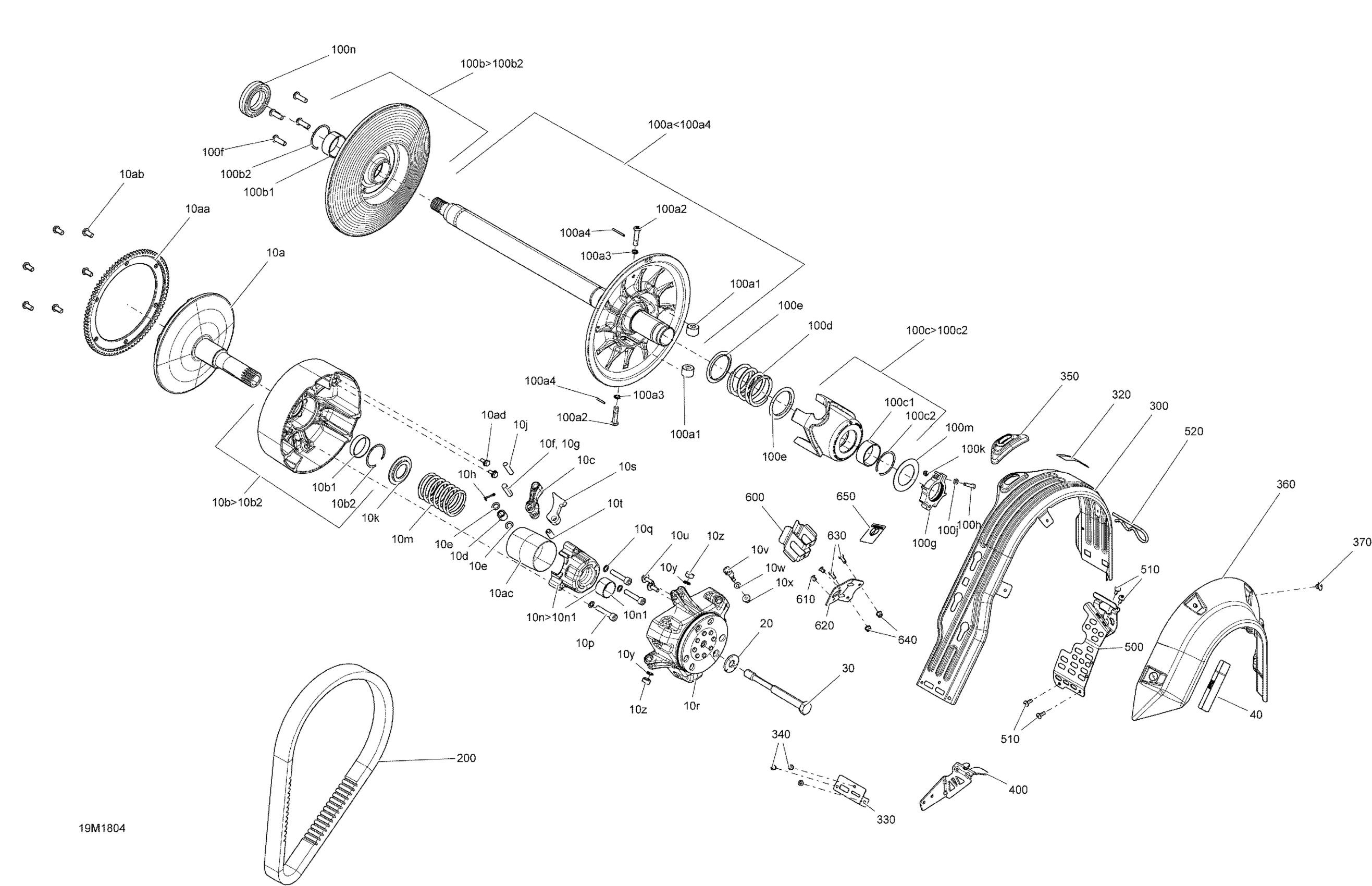

Ski-Doo TUNDRA 600HO E-TEC, 2018 Pulley Tundra - 600 HO ETEC - Package XTreme Diagram

#

Description
Price

10a

Fixed Flange Ass'y

417222937

$439.99

10b

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

10b1

Bushing

417222758

$22.49

10b2

Circlip

293370037

$3.19

10c

Lever | Includes 10f to 10g

417222671

$49.99

10d

Roller

417222947

$21.99

10e

Stopper Washer

417004302

$15.90

10f

Pin

417004308

$13.99

10f1

Threaded Pin

417222477

$25.99

10f2

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

10h

Cotter Pin

250400060

$2.00

10j

Lever Axle

417223164

$4.49

10k

Spring Seat

417222312

$9.59

10m

Spring, Blue/green

414817700

$46.49

10m

Spring (Red/Orange)

415015200

$52.99

10n

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

10n1

Bushing

417009204

$17.49

10p

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10q

Lock Washer 8 mm

250200009

$2.11

10r

Governor Cup Ass'y

417223669

$489.99

10s

Ramp 412

417222515

$39.99

10s

Ramp 417

417222552

$38.99

10t

Spring Pin M10 X 22

250400050

$2.99

10u

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

10v

Calibration Screw

417223501

$13.99

10w

Washer

417005600

$4.09

10x

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10y

O-Ring

732401030

$0.98

10z

Slider Shoe

417222992

$4.49

10z

Slider Shoe

417223271

$8.26

10aa

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

10ab

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

10ac

Guard

417009205

$21.99

10ad

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

20

Conical Spring Washer M14

250200144

$4.44

30

Drive Pulley Bolt

417120000

$65.49

40

Decal English

516005503

Unavailable

100a

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$539.99

100a1

Pulley Roller

417127016

$24.49

100a2

Pivot Stud

417127294

$14.49

100a3

Lock Washer 8 mm

250200009

$2.11

100a4

Spring Pin M3 X 30

250400063

$2.11

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100b1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b2

Circlip

293370049

$4.99

100c

Cam Ass'y | Includes 100c to 100c2

417127376

$132.99

100c

Cam Ass'y | Includes 100c to 100c3

417127325

$159.49

100c1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c2

Circlip

293370049

$4.99

100d

Black, Return Spring

417127039

$46.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

205052544

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300382

$90.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Reinforcement

417300380

$7.29

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

Side Protector

417300356

$14.76

370

Pop Rivet 3/16"

293150103

$0.55

400

Front Belt Guard Bracket

417300374

$24.99

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

600

Bracket

517281905

$18.49

610

Avex Rivet

390909200

$0.30

620

Plate

417300406

$12.99

630

Hex. Screw M5 X 14

207151444

$0.87

640

Flange Elastic Nut M5

233251434

$2.00

650

Belt Gard Decal

516007493

$12.49
