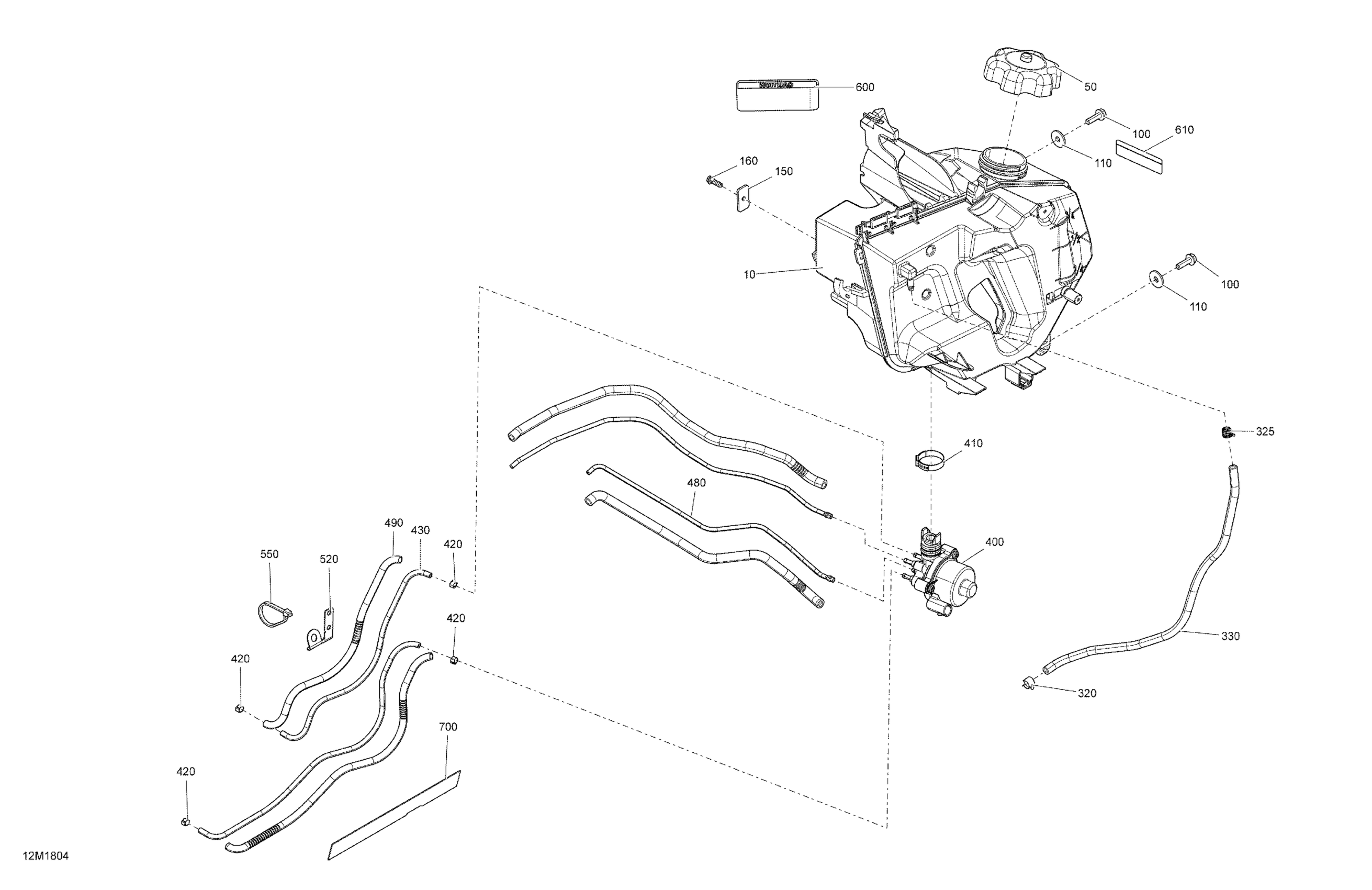

Ski-Doo TUNDRA 600HO E-TEC, 2018 Oil Tundra - 600 HO E-TEC Diagram

Description

Price

Oil Tank

519000311

$114.90

Cap

519000273

$24.60

100

Hex. Flange Screw M6 X 16

250000936

$1.39

110

Flat Washer

224061201

$1.27

150

Bracket

519000179

$8.31

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

320

Spring Clamp

414554800

$0.81

325

Spring Clamp

414420700

$0.66

330

Polyurethane Hose 10000Mm Long

219704410

$52.96

400

Pump_Hydraulic This part replaces 519000323.

519000376

$199.22

410

Crimp Clamp

293650099

$4.07

420

Crimp Clamp

293650249

$3.15

430

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

480

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

490

Tubing 6 Mm 3000Mm Long

219704425

$12.75

520

Bracket

519000245

$13.16

550

Tie Wrap 142 mm

293750002

$1.01

600

Warning Decal / Oil Notice

516007443

Unavailable

610

Caution Decal Hot Parts

516005280

Unavailable

700

Protection Decal / Lexan

516004648

$8.48
