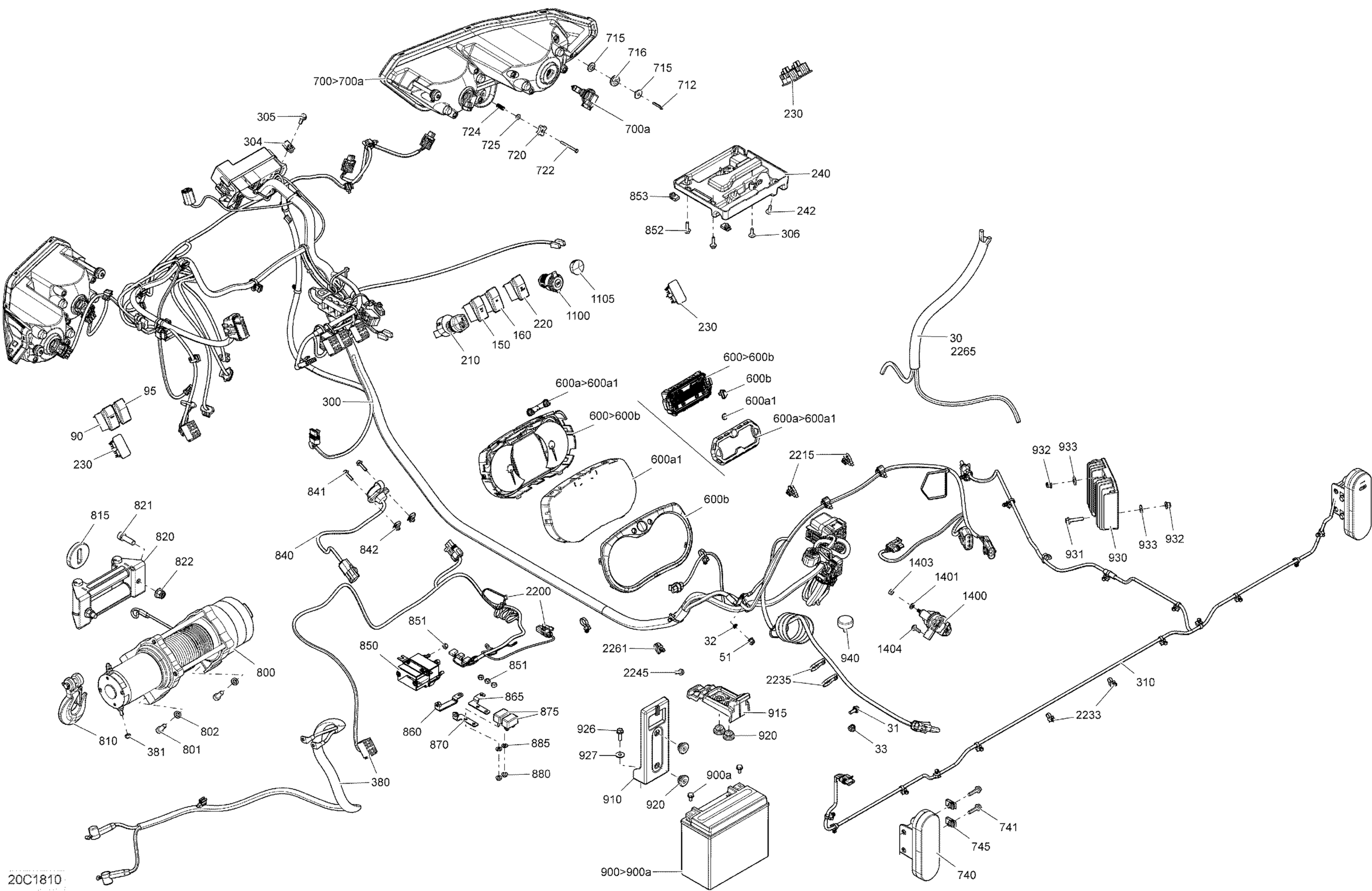

Can-Am Traxter HD10, 2018 Electrical System Traxter Non Max Diagram

Negative Cable

710005331

$46.12

Negative Cable

710005512

$46.12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

Elastic Stop Nut M6

232561414

$1.55

Elastic Stop Nut M6

232561414

$1.55

Light Switch

710004492

$46.12

Switch Winch

710002052

$28.92

Switch 2X4

710005489

$32.28

Differential Lock Switch

710005470

$46.12

Inter Allumage *Ignition

710007870

$55.35

Key Switch Protector

710005739

$2.69

3-Modes Switch | Winch Equipped Model

715004445

Unavailable

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Housing Support

710004741

$7.09

Screw PT Type K-50 X 16

250000959

$1.74

Harness-Ass'y

710005722

$876.89

DPS Connector Cap | Not Shown

710005760

$15.22

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

Rear Harness

710004458

$216.89

Housing Cap

710005774

$3.98

Housing Cap

710005775

$3.98

Switch's Connector

710005713

$6.15

Winch Harness | Winch Equipped Model

710004465

$106.12

Elastic Stop Nut M6

232561434

$1.55

Speedometer | Includes 600 to 600b

710005553

$323.05

Trim Ring Ass'y

710001183

$18.43

BRP Logo13 mm

704904615

$9.66

Button

715900265

$12.68

Speedometer | Package CAB, Hunter and XT

710005719

$415.35

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

LH Headlamp | Includes 700 to 700a

710008313

$203.05

RH Beam Ass'y

710005730

$203.05

Halogen Bulb H8 12V 35W

219800149

$41.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Flat Washer 4 mm, Stainless

234042600

$0.92

Tail Light

710004257

$92.28

Tail Light

710004497

$110.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Electric Winch | Includes 800 to 800a

710006993

$234.99

Socket Head Screw M8 X 30

205083044

$0.92

Lock Washer 8 mm

234181401

$0.89

Winch Hook Kit

705014949

$27.66

Stopper

710007028

$10.18

Fairlead Roller

710007082

$59.97

Socket Screw M10 x 30 | XT

205003044

$2.61

Hex. Flange Elastic Nut M10

233201414

$1.26

Remote Control & Connector_Winch Kit | Winch Equipped Model

715006504

$27.66

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

Panel Nut M5 X 0.8

250000958

$3.48

Solenoid

710006991

$59.97

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

Panel Nut M5 X 0.8

250000958

$3.48

Power Bar

710004772

$11.98

Power Bar

710004872

$11.98

Power Bar

710004873

$11.98

Circuit Breaker 50 Amp

710007039

$18.43

Hex. Flange Nut M5

250100071

$1.77

Lock Washer Helical M6

234161601

$0.92

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery | Includes 900 to 900a

515176151

$174.17

Battery Bolt Kit

515176081

$5.10

Fixation Plate

710004788

$9.77

Fixation Plate

710004789

$6.92

Stopper Rubber

705014429

$6.09

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Flat Washer 6 mm

234062410

$0.64

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

Voltage Regulator

710005842

$159.87

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer 6 mm

234062410

$0.64

Rubber Stopper

708001827

$6.45

DC Outlet

710001248

$31.17

12V Power Outlet

710005374

$27.27

Cap

710004993

$6.75

Starter Relay

278003012

$35.07

Lock Washer Helical M6

234161601

$0.92

Hex. Nut M6

232061600

$0.91

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

Tie-Rap 180 mm

414115200

$0.09

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Dart Tie Rap 200MM

710003168

$5.72

Tie Wrap 368 mm

293750008

$0.85

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

Hex. Flange Screw M6 X 16

210261650

$1.22

Christmas Tree Tie-Rap

710005237

$6.75

Tubing 16 Mm 1000Mm Long

219704408

$6.23
