Partiron

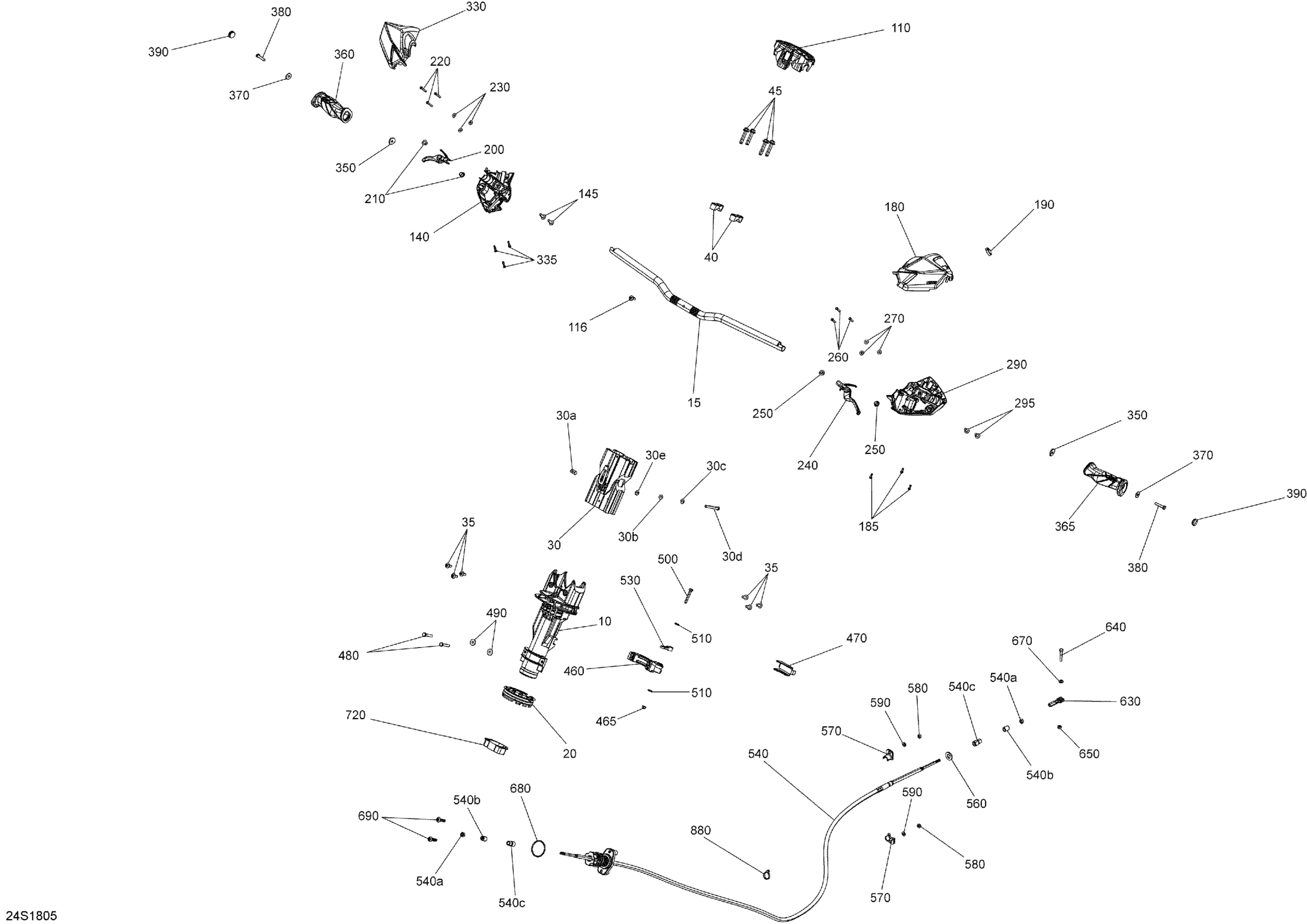

Sea-doo Spark TRIXX, 2018 Steering Spark - 900 HO ACE - Trixx Diagram

#

Description
Price

10

Steering Column

277001998

$214.99

15

Liquid Titan, Handlebar This part replaces 277002345.

277002424

Unavailable

20

Wear Ring

277001874

$12.17

30

Adjustable Riser Block | Includes 30 to 30g

277002093

$153.49

30a

Compression Bloc

506153045

$3.29

30b

Spring

506152820

$9.09

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

110

Deep Black, Steering Pad

277002005

$28.99

140

RH Lower Housing

277002007

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002237

$18.99

185

Hex. Flange Screw K40 X 16

241141660

$1.48

190

Red, Knob Switch

277001887

$9.69

200

Throttle Handle

277001944

$38.99

210

Bushing

293900091

$4.52

220

Hex. Flange Screw K40 X 25

241142560

$2.64

230

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

250

Bushing

293900091

$4.52

260

Hex. Flange Screw K40 X 25

241142560

$2.64

270

Flat Washer 4 mm, Stainless

234042600

$1.15

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

290

Deep Black, LH Lower Housing

277002006

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002004

$18.99

335

Hex. Flange Screw K40 X 16

241141660

$1.48

350

Insert Grip Handle

277001863

$8.83

360

Can-Am Red, RH Handle Grip

277002014

$20.99

365

Can-Am Red, LH Handle Grip

277002015

$20.99

370

Flat Washer M6, Stainless

234062600

$0.77

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

390

Black, Cap

277000203

$9.39

460

Support Ass'y | Includes 460 to 460b

277002179

$22.49

465

Elastic Stop Nut M6, Brass

232561200

$4.23

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540c

277002065

$259.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Elastic Stop Nut M6, Brass

232561200

$4.23

590

Stainless Flat Washer M6

234061600

$0.33

630

Ball Joint

277000775

$51.99

640

Hex. Screw M6 X 35

207663560

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.23

670

Stainless Flat Washer M6

234061600

$0.33

680

O-Ring

293300176

$1.36

690

Screw Torx M6.81 X 30

250001007

$2.54

720

Wear Ring

277002318

$15.99

880

Tie-Rap 180 mm

414115200

$0.11
