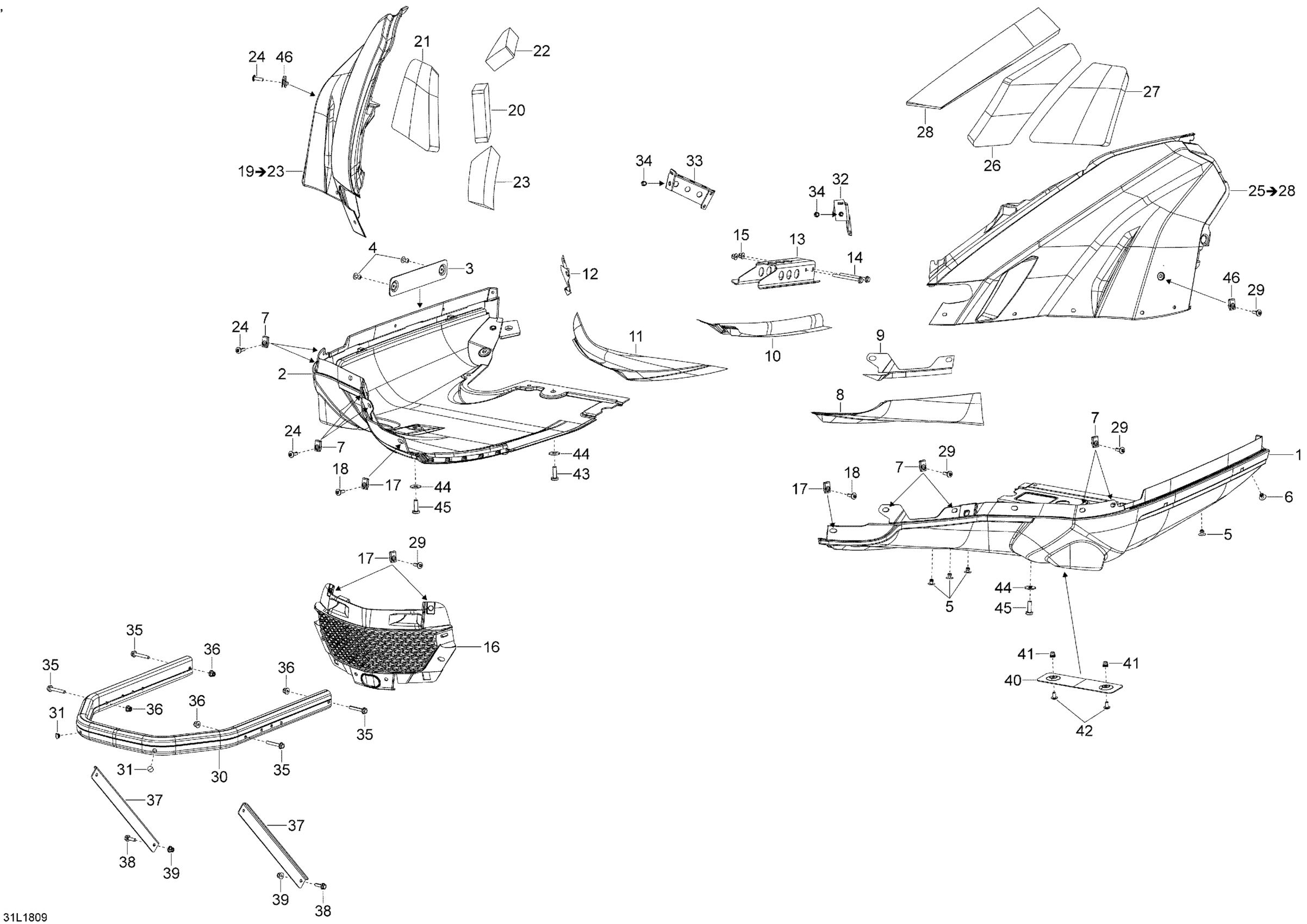

Ski-Doo SKANDIC 600 ACE, 2018 Bottom Pan Skandic - 600 ACE Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007836

$202.21

2

RH Lower Bottom Pan

502007837

$177.58

3

Heat Isolation Plate

502007255

$5.79

4

Rivet | Except Package SWT

293150211

$1.99

5

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

6

Pop Rivet 3/16”

293150108

$1.19

7

Panel Nut M6 X 1.0

250100198

$1.99

13

Support

502007688

$16.39

14

Hex. Flange Screw M6 X 70

207667056

$4.15

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Front Grille

502007140

$89.99

17

Panel Nut M6 X 1.0

250100198

$1.99

18

Torx Screw M6 X 20

250000722

$1.54

19

Deep Black, RH Bottom Pan

502008015

$144.99

20

Insulator

502007133

$31.99

21

Insulator

502007132

$31.99

23

Insulator | Except Package EXTREME

502007009

$17.13

24

Torx Screw M6 X 20

250000722

$1.54

25

Deep Black, LH Bottom Pan

502008017

$139.99

26

Insulator

502007088

$69.99

27

Insulator

502007131

$31.99

28

Insulator

502007185

$29.99

29

Torx Screw M6 X 20

250000722

$1.54

30

Clear Anod. Bumper | Package SWT & LE

502007684

$115.64

31

Full Moon Dart 8 mm

293730041

$2.06

32

LH Bottom Pan Fastener

502007535

$34.30

33

RH Bottom Pan Fastener

502007536

$34.30

34

Clinch Nut M6 Hexsert

605636003

$4.00

35

Hex. Flange Screw M6 X 40

207664044

$2.12

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

Bumper Support

502006927

$32.99

38

Hex. Flange Screw M6 X 20

207662044

$1.91

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

40

Oil Plate

518328879

$10.10

41

Clinch Nut M6 Hexsert

605636003

$4.00

42

Torx Screw M6 X 20

250000722

$1.54

43

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

44

Flat Washer 8 mm

234082410

$1.27

45

Torx Screw M6 X 20

250000722

$1.54

46

Panel Nut M6 X 1.0

250100198

$1.99
