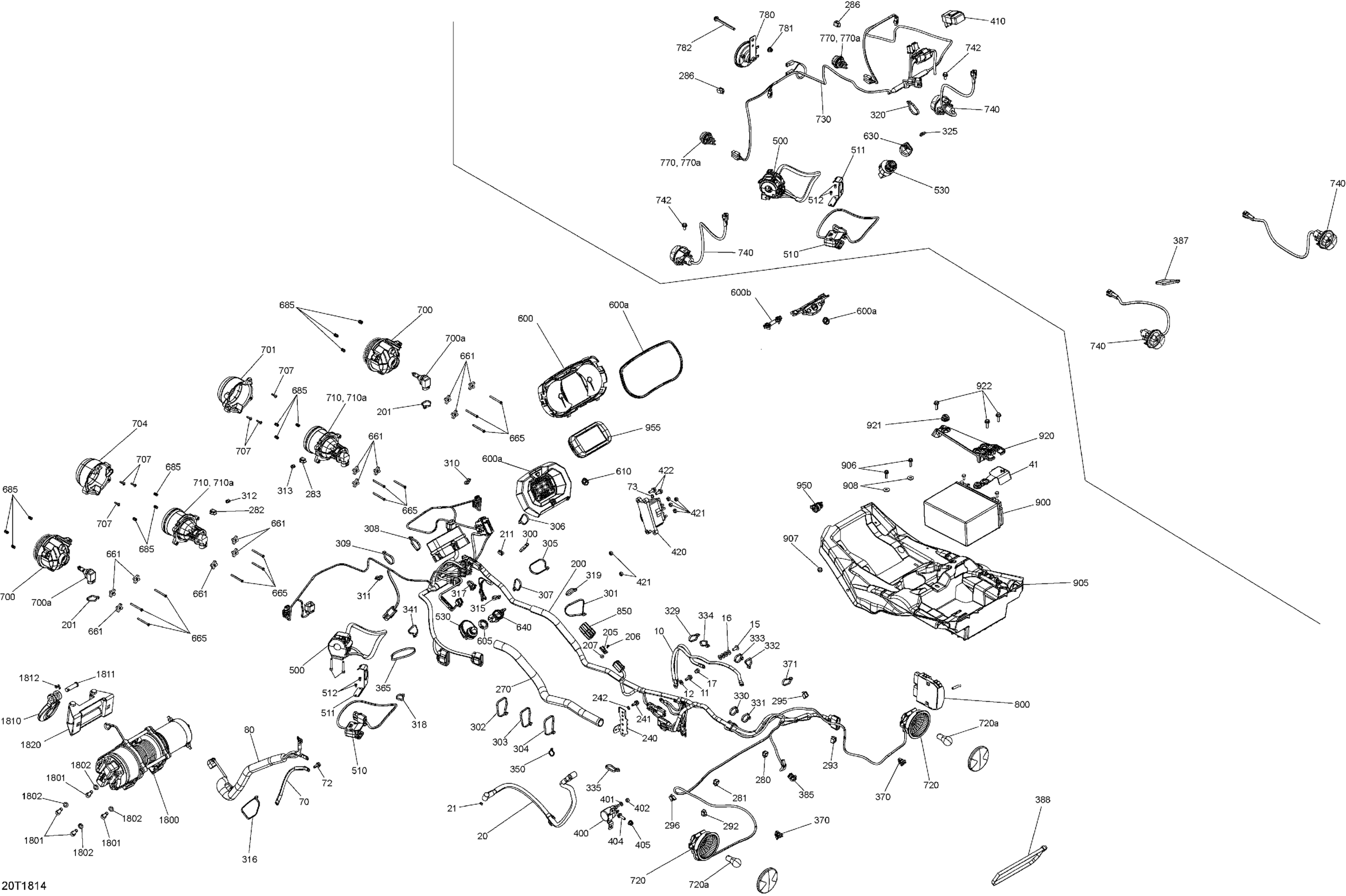

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Electrical Diagram

#

Description
Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$0.55

40

Connector Ass'y

710004375

$32.99

41

Battery Cable Cap

710006729

$7.20

70

Negative Cable

710005163

$35.99

72

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.90

73

External Serrated Lock Washer 6 mm

234461608

$1.15

80

Winch Cables

710004378

$51.99

81

Winch Cable

710005246

$43.99

200

Main Harness

710005554

$979.99

201

Tie Wrap 142 mm

293750002

$1.25

202

Indicator Light Cable

710005840

$19.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

211

Clip

710000992

$4.29

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

282

Clip

414227300

$1.67

283

Clip

414227300

$1.67

286

Clip

414227300

$1.67

300

Tie Wrap 368 mm

293750008

$1.04

301

Tie Wrap 368 mm

293750008

$1.04

302

Tie Wrap 368 mm

293750008

$1.04

303

Tie Wrap 368 mm

293750008

$1.04

304

Tie Wrap 368 mm

293750008

$1.04

305

Tie Wrap 368 mm

293750008

$1.04

306

Tie Wrap 368 mm

293750008

$1.04

307

Tie-Rap 180 mm

414115200

$0.11

308

Tie Wrap 368 mm

293750008

$1.04

309

Tie Wrap 368 mm

293750008

$1.04

310

Tie-Rap 180 mm

414115200

$0.11

311

Tie-Rap 180 mm

414115200

$0.11

312

Tie-Rap 180 mm

414115200

$0.11

313

Tie-Rap 180 mm

414115200

$0.11

315

Tie-Rap 180 mm

414115200

$0.11

316

Tie Wrap 368 mm

293750008

$1.04

317

Tie-Rap Clip

710002896

$4.39

320

Tie Wrap 368 mm

293750008

$1.04

325

Tie-Rap 180 mm

414115200

$0.11

329

Tie-Rap 180 mm

414115200

$0.11

330

Tie-Rap 180 mm

414115200

$0.11

331

Tie-Rap 180 mm

414115200

$0.11

332

Tie-Rap 180 mm

414115200

$0.11

333

Tie-Rap 180 mm

414115200

$0.11

334

Tie-Rap 180 mm

414115200

$0.11

335

Tie-Rap 180 mm

414115200

$0.11

350

Tie Wrap 94 mm | 4X4

293750001

$1.03

365

Tie Wrap 368 mm

293750008

$1.04

370

Mount Dart

293730040

$1.04

371

Tie-Rap 180 mm

414115200

$0.11

385

Tie-Rap Clip

710002896

$4.39

387

Tie Wrap 368 mm

293750008

$1.04

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410

Flasher Unit

710003239

$78.49

419

Module Support

710004935

$20.99

420

Winch Solenoid | XT Models

710001000

$121.99

421

Elastic Stop Nut M6

232561414

$0.55

424

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

500

Multi-Function Handle

710004040

$179.99

510

Winch Switch

710005241

$164.49

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

530

Ignition Switch

710008400

$78.49

600

Speedometer | Includes 600 to 600b

710005553

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600a1

BRP Logo13 mm

704904615

$13.49

600b

Button

715900265

$13.71

630

Grey, Electronic Key

710002183

$63.49

640

Black, Electronic Key

710000817

$63.49

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

730

Position Light Harness

710005676

$15.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

770

Day Light | Europe

710001726

$35.99

779

Horn Support

710006113

$13.49

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 70

207667044

$0.85

783

Bushing

708001129

$11.99

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

785

Hex. Flange Screw M6 X 16

207661644

$0.74

800

Voltage Regulator

710005842

$189.99

802

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

803

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

850

Connector Plug

710004904

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99

1800

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

1801

Socket Head Screw M8 X 20

205082044

$1.15

1802

Lock Washer 8 mm

234181401

$0.92

1810

Winch Hook Kit

705014949

$24.99

1811

Clevis Pin

250400021

$13.18

1812

Cotter Pin

250400022

$9.69

1820

Fairlead_Roller Kit

715007699

$83.99

1830

Trailer Harness

710005846

$229.99

1840

Screw M5 X 35 | Not Shown

40233

Unavailable

1850

Plug Fastening Plate

705204572

Unavailable

1860

Elastic Stop Nut M10

232500416

$1.90

1870

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

1880

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1890

Sheath | Not Shown

710004193

$20.49
