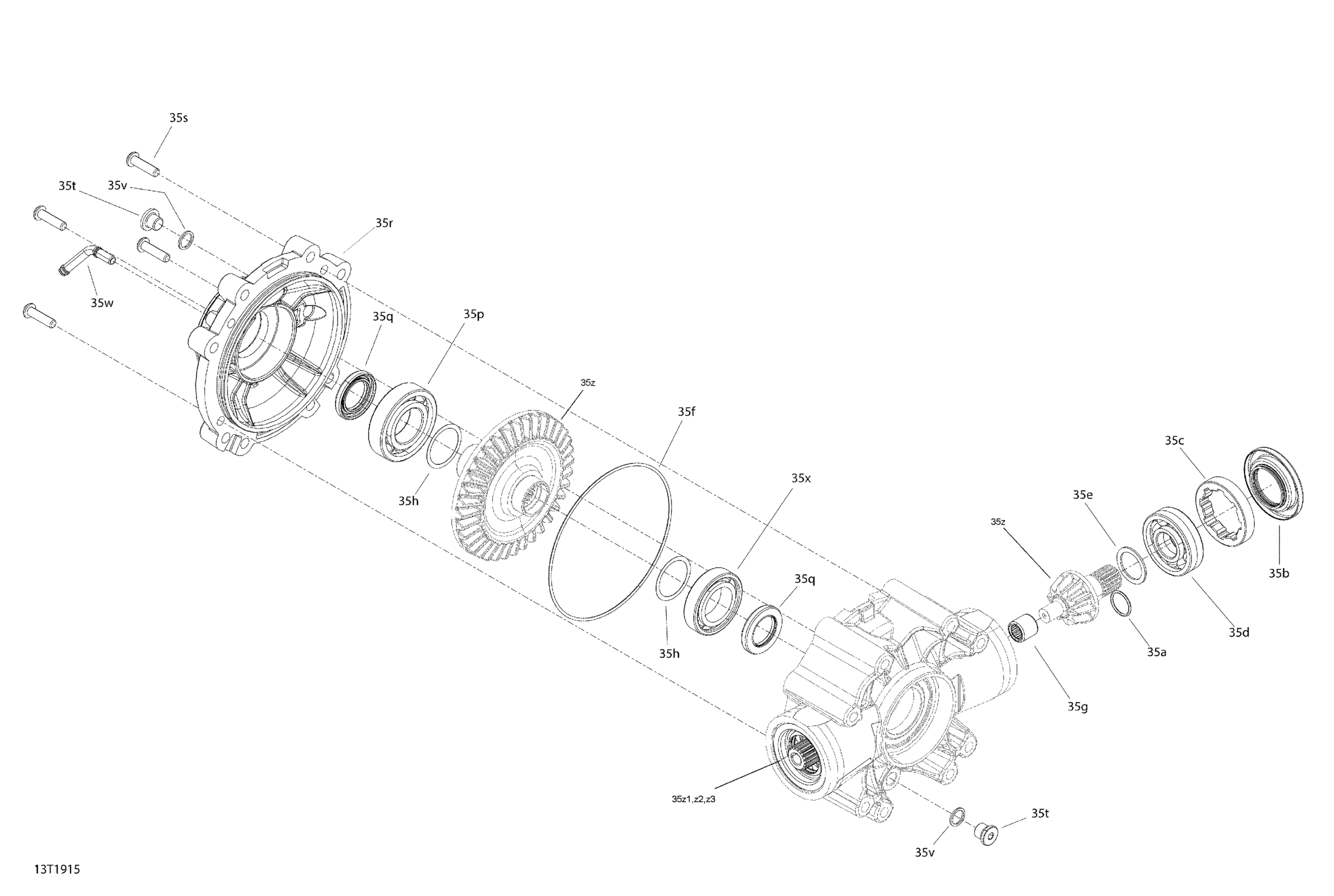

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Rear Drive 6X6 - Middle Differential Diagram

#

Description
Price

35

Final Drive Unit

705502230

Unavailable

35

Middle Drive Unit Ass'y | Built Before Feb 2019

705503088

$1,292.28

35a

O-Ring | 4X4

705500267

$6.25

35b

Oil Seal | 4X4

705401481

$18.43

35b

Oil Seal

705501557

$18.43

35c

Nut

705502059

$32.28

35d

Ball Bearing | 4X4

705500260

$30.39

35d

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35e

Pinion Gear Shim

705501162

$15.17

35e

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35e

Differential Shim Kit

703500835

$46.12

35f

Seal

705502064

$8.31

35f

O-Ring

705501711

$9.29

35g

Needle Bearing

705501408

$66.49

35g

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35h

Differential Shim 0.02 mm

705502060

$13.83

35p

Ball Bearing

705502738

$56.52

35p

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35q

Oil Seal

705501996

$20.74

35q

Oil Seal

705501556

$17.66

35r

Cover Case | Built Before Feb 2019

705502198

Unavailable

35r

Case Cover | Built Feb 2019 and Up

705503089

$64.58

35s

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

35s

Screw

705502063

$3.08

35t

Fill Level Plug | 4X4

705500504

$7.61

35v

Copper Washer | 4X4

705500506

$0.36

35w

Breather Tube

705501584

$13.86

35x

Ball Bearing

705502737

$46.07

35x

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35z

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

35z1

Nut

705501549

$32.28

35z2

Nut

705501550

$23.05

35z3

O-Ring

705501554

$4.62
