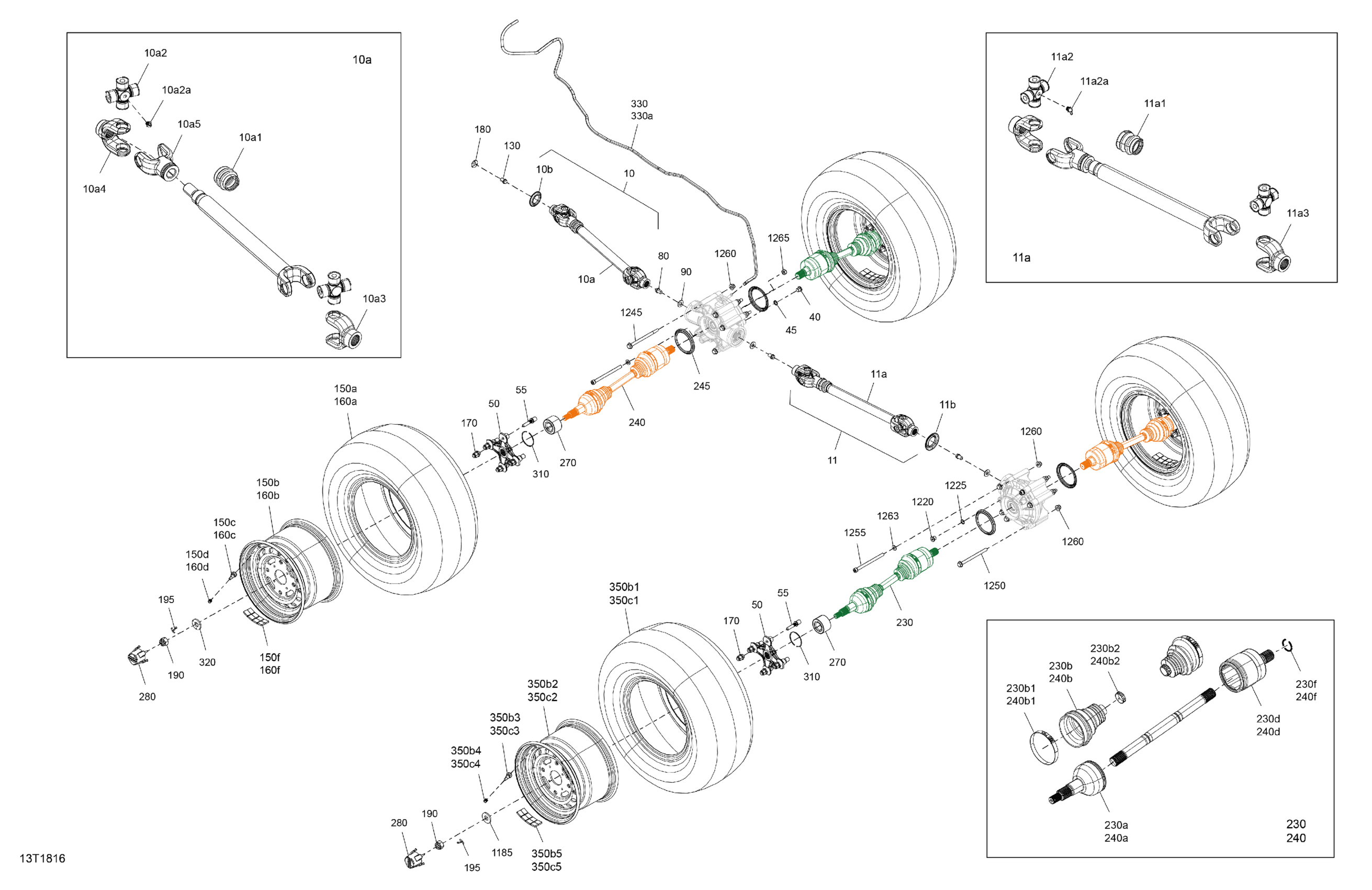

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Drive System, Rear Diagram

#

Description
Price

10

Shaft Ass'y Kit | T3

703500992

$396.89

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$13.83

10a2

Universal Joint Ass'y | T3

703500846

$59.97

10a2a

Grease Fitting | T3

715900295

$4.62

10a3

Yoke | T3

715900500

$23.05

10a4

Joint | T3

715900436

$23.05

10a5

Spline Yoke

715900106

$41.51

10b

Protector

705501123

$7.37

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$396.89

11a

Not Available As Spare Parts

XXX

Unavailable

11a1

Rubber Boot

715900118

$13.83

11a2

Universal Joint

715900326

$69.20

11a2a

Grease Fitting | T3

715900295

$4.62

11a3

Yoke | T3

715900500

$23.05

11b

Protector

705501123

$7.37

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Wheel Hub

705501900

$129.20

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

80

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

90

Flat Washer M12

250200102

$1.74

130

Hex Flange Screw M12 X 16

250001039

$1.74

150a

Tire 26X10B12

705503275

$167.66

150b

Black, Rear Rim | XT CAMO

705501493

$139.97

150c

Rim Valve With Cap

705400193

$6.69

150d

Valve Cap

293000110

$1.18

150f

1/2 Oz Weight

219704465

$4.35

160a

Tire 26X10B12

705503275

$167.66

160b

Black, Rear Rim | XT CAMO

705501493

$139.97

160c

Rim Valve With Cap

705400193

$6.69

160d

Valve Cap

293000110

$1.18

160f

1/2 Oz Weight

219704465

$4.35

170

Black, Wheel Nut M10 X 1.25

250100184

$2.48

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$232.74

230a

CV Joint

705501776

Unavailable

230b

Boot Kit

705501864

$41.51

230b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230d

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230f

Circlip

705501781

$5.38

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$232.74

240a

CV Joint

705501776

Unavailable

240b

Boot Kit

705501864

$41.51

240b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

240b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240d

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240f

Circlip

705501781

$5.38

245

Wear Ring

705501124

$7.28

270

Ball Bearing

293350150

$51.93

280

Wheel Cap

705400928

$11.06

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

330a

Not Available As Spare Parts

XXX

Unavailable

350b1

Tire 26X10B12

705503275

$167.66

350b2

Black, Rear Rim | XT CAMO

705501493

$139.97

350b3

Rim Valve With Cap

705400193

$6.69

350b4

Valve Cap

293000110

$1.18

350b5

1/2 Oz Weight

219704465

$4.35

350c1

Tire 26X10B12

705503275

$167.66

350c2

Black, Rear Rim | XT CAMO

705501493

$139.97

350c3

Rim Valve With Cap

705400193

$6.69

350c4

Valve Cap

293000110

$1.18

350c5

1/2 Oz Weight

219704465

$4.35

1185

Conical Spring Washer M18

250200171

$5.28

1220

Fill Level Plug | 4X4

705500504

$7.61

1225

Copper Washer | 4X4

705500506

$0.36

1245

Hex. Flange Screw M10x145

705502741

$7.00

1250

Hex. Flange Screw M10 X 135

250001041

$4.46

1255

Screw Socket HD M10 X 140

250001094

Unavailable

1260

Hex. Flange Elastic Nut M10

233201436

$1.74

1263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1265

Elastic Stop Nut M10

232500416

$1.56
