Partiron

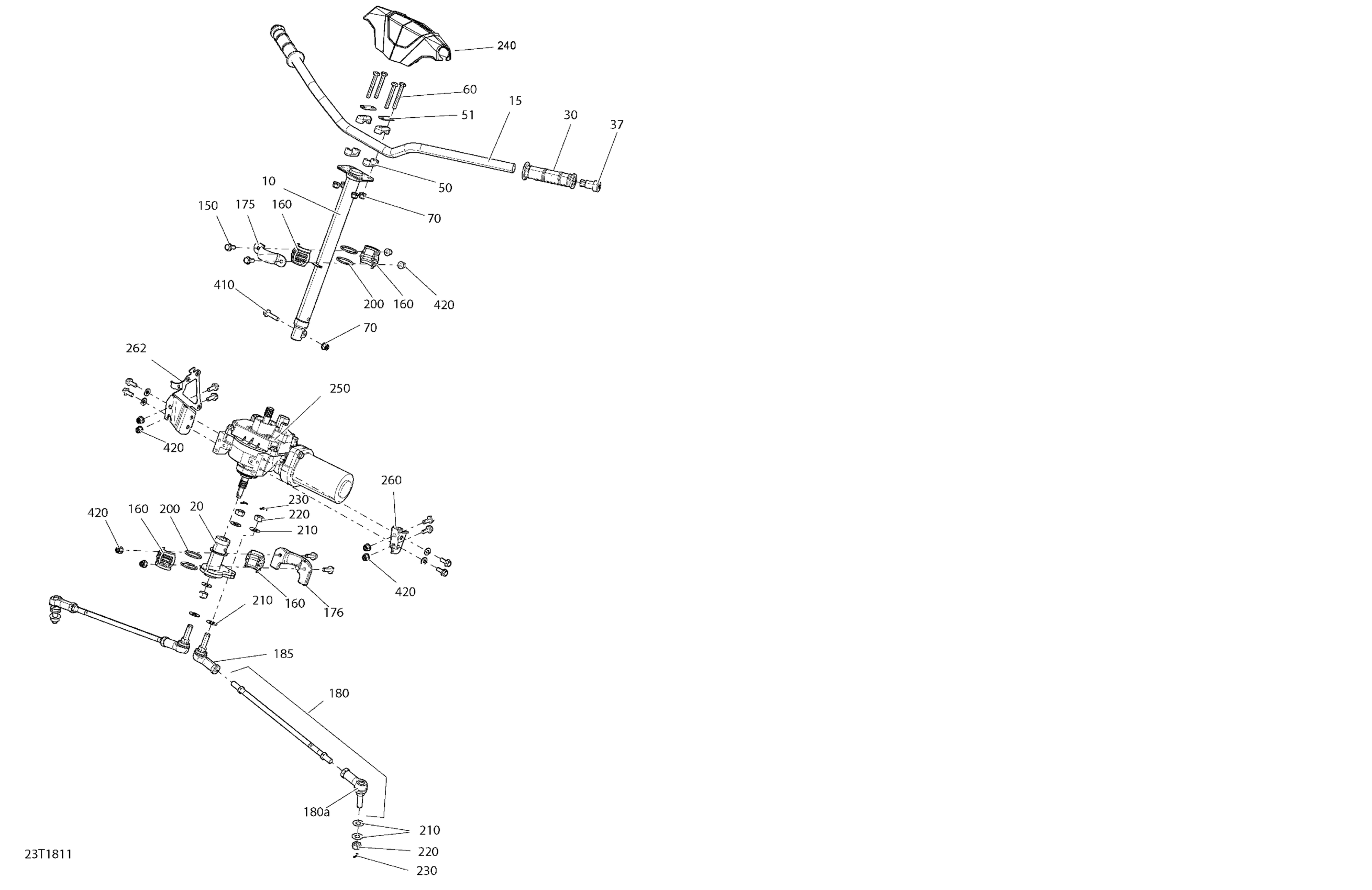

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Steering Diagram

#

Description
Price

10

Main Tube Kit | Model With DPS

703501108

$67.66

15

Black, Handle Bar

709401240

$55.35

20

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

30

Handle Grip

709400493

$14.75

37

End Piece

709400449

$8.29

50

Steering Support

709401799

$20.74

51

Stiffner

709400509

$4.43

60

Hex. Screw M8 X 60

207086046

$2.30

70

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Spherical Half Bushing

709400783

$6.14

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

180a

LH Ball Joint

709402303

$35.14

185

RH Ball Joint

709402302

$35.14

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Nut M12

250100099

$1.64

230

Cotter Pin

211400013

$0.32

240

Cover

709400939

$23.05

250

Power Steering Ass'y | Model With DPS

709403187

Unavailable

260

LH Power Steering Bracket | Model With DPS

709402184

$15.35

262

RH Bracket | Model With DPS

709402185

$27.66

263

Power Steering Support | Model With DPS

709401743

$16.89

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

410

Hex. Flange Screw M8 X 35

250000986

$1.74

415

Hex. Elastic Flange Nut M8

233281416

$1.25

420

Hex. Flange Nut M8

233081416

$1.63
