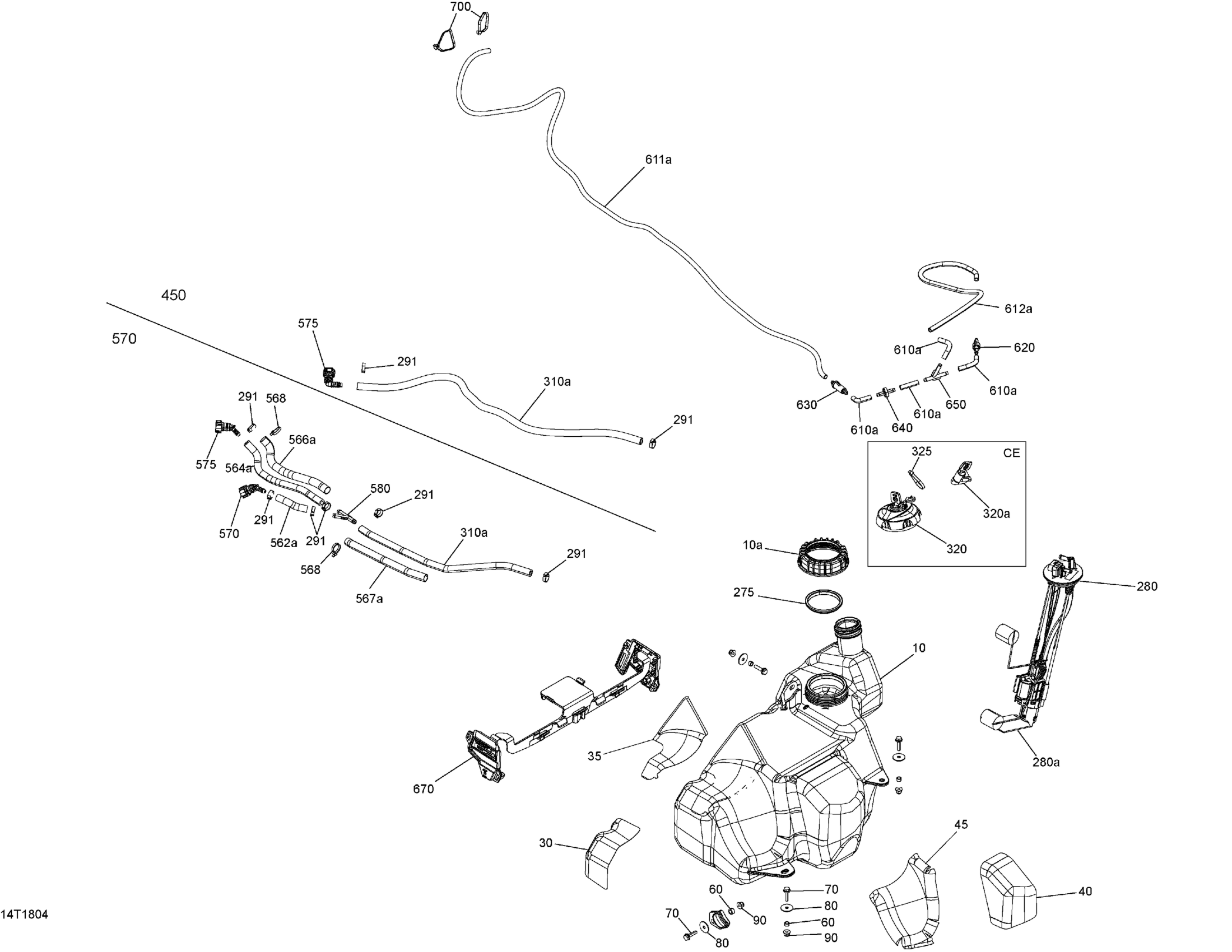

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$264.99

10a

Fuel Pump Module Nut

709000328

$13.75

30

Heat Reflective Sheet

709000381

$6.99

35

Heat Reflective Sheet

709000387

$5.09

40

Heat Reflective Sheet

709001071

$10.49

45

Heat Reflective Sheet

709000388

$6.39

46

Heat shield

709000527

$19.99

47

Heat shield

709000528

$19.99

60

Bushing | DS 650 X

293900104

$5.50

70

Hex. Flange Screw M6 X 25

207662544

$0.64

80

Washer

224060251

$0.58

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

275

Seal

709000208

$14.99

280

Fuel Pump | Includes 10a to 10b

709001517

$340.99

280a

Fuel Pre-Filter Kit

709000389

$79.49

291

Crimp Clamp, 15.3-706R

293650047

$3.29

310a

Was 709000163 Fuel Line

219704440

$28.99

320

Lock Device Kit | Europe Model

707001750

$67.99

320a

Padlock with Key

707000666

$25.99

320b

Locking Cap Tank | Europe

860200387

$58.49

325

Tie-Rap 180 mm

414115200

$0.11

562a

Was 709000163 Fuel Line

219704440

$28.99

564a

Was 709000163 Fuel Line

219704440

$28.99

566a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

567

Tubing 16 Mm 1000Mm Long

219704408

$7.49

568

Tie Wrap 142 mm

293750002

$1.25

570

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

575

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

580

Y-Fitting, 5/16''

293710136

$6.49

610a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

611a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

612a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

615a

Tubing 10 MM 1000MM Long

219704407

$2.79

616

Tie-Rap 180 mm

414115200

$0.11

620

Check Valve

513033469

$31.99

630

Filter

709000330

$7.79

640

Check Valve

275500398

$10.99

650

Y-Fitting

293710059

$9.69

670

Hose Support Ass'y

709000359

$14.31

670a

Hex. Elastic Stop Nut M6

232561600

$1.15

700

Tie-Rap 180 mm

414115200

$0.11
