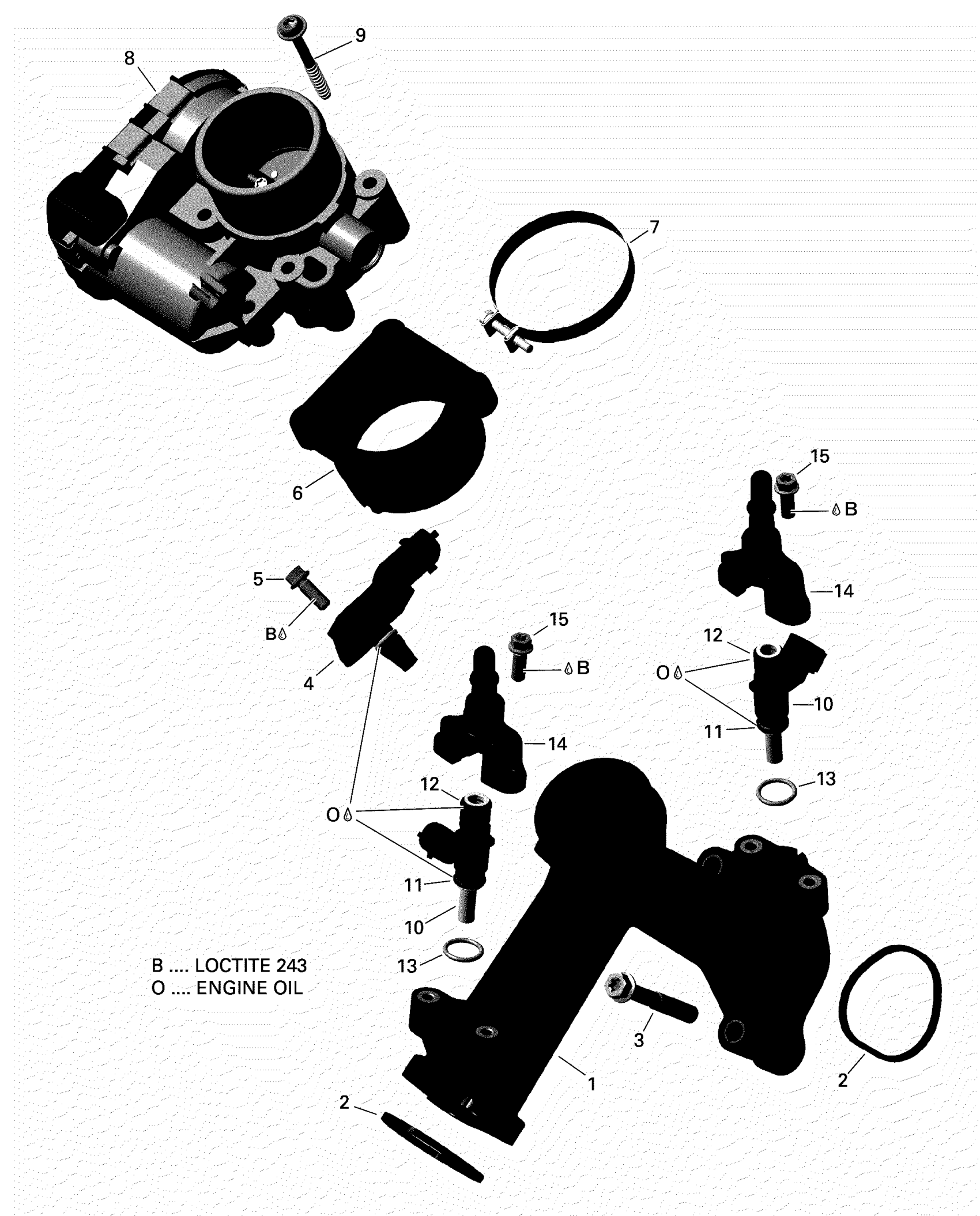

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$126.09

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$6.11

4

Pressure And Temperature Sensor

707000995

$70.82

5

Torx Flange Screw M6 X 16

420440164

$1.67

6

Intake Neck

420267615

$57.43

7

Clamp

420251480

$13.18

8

Throttle Body

420893149

$600.72

9

Torx Flange Screw M6 X 50

420441588

$3.61

10

Injection Valve Ass'y | Includes 17 to 19

420874840

$157.43

11

O-Ring

420431890

$4.95

12

O-Ring

420631220

$11.48

13

O-Ring

420631296

$0.72

14

Fuel Rail

420874901

$22.36

15

Torx Flange Screw M6 X 16

420440164

$1.67
