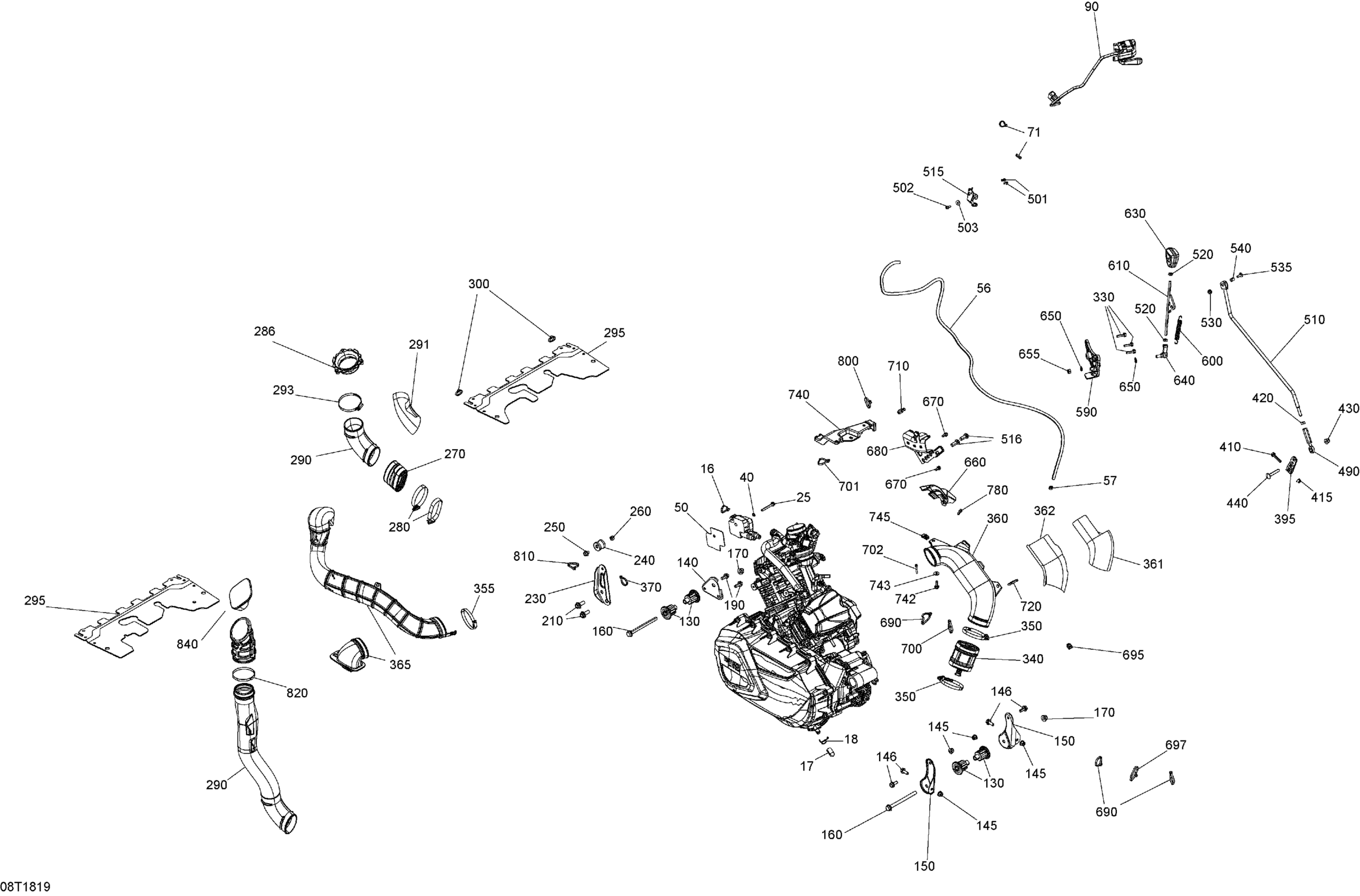

Can-Am Outlander MAX 6X6 - 650 EFI - T3, 2018 Engine Diagram

#

Description
Price

16

Tie-Rap 180 mm

414115200

$0.09

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

25

Hex. Flange Screw M6 X 50

207665044

$3.38

32

Tie-Rap 180 mm

414115200

$0.09

40

External Serrated Lock Washer 6 mm

234461608

$0.92

50

Insulator Pad

710000073

$10.30

56a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

57

Clamp, Oetiker

293650195

$1.00

71

Tie-Rap 180 mm

414115200

$0.09

85

Front Housing

512060987

$8.09

89

Protector Tube

415129879

Unavailable

90

Throttle Ass'y | Includes 90 to 90t

707002135

$270.12

90a

Cap

512060862

$11.22

90b

Torx Screw M2.9 x 9.5

250000623

$3.01

90c

Torx Screw

250000671

$0.83

90d

Screw

512060961

$10.21

90e

Torx Screw M5 X 20

250000528

$1.74

90f

Protector Tube

515177716

$4.28

91

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

91a

Male Terminal

515175232

$1.45

95

Switch Support

512061453

$8.13

96

Torx Screw #8-18

250000263

$0.99

97

Protector

512061214

$2.00

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$8.21

145

Hex. Elastic Flange Nut M8

233281416

$1.25

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001191

$8.21

150

RH Rear Engine Bracket

707001192

$8.21

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

210

Hex. Flange Screw M10 X 25

207602544

$1.33

230

Upper Engine Bracket

707001256

$10.82

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$4.46

286

CVT Inlet

707001864

$59.67

290

CVT Air Inlet

707002067

$48.48

291

Heat Shield

707001654

$2.59

295

Upper Water Deflector

707001124

$20.12

300

Tie-Rap 180 mm

414115200

$0.09

330

Screw PT K60 X 30

250000949

$1.74

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

332

Bushing

293900128

$3.07

335

Flat Washer M6, Stainless

234062600

$0.64

340

CVT Air Outlet Adaptor

707001168

$14.27

350

Norma Gear Clamp

293650118

$9.74

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$8.66

362

Heat Shield

707001206

$8.66

365

CVT Cooling Duct Out

706600400

$49.22

370

Tie-Rap 180 mm

414115200

$0.09

395

Lever

707000911

$18.63

410

Hex. Flange Screw M6 X 35

207663544

$0.74

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Carriage Bolt M8 X 30

207783044

$1.74

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

490a

Hex. Jam Nut M8

232180600

$0.56

501

Socket Head Screw M5 X 10

205951046

$2.31

502

Torx Screw K50 X 16

250000720

$1.39

503

Washer | DS 650 X

391301600

$0.46

510

Shifter Rod

707002068

$30.57

515

Fixing Plate | Europe

707001042

$35.79

516

Screw Socket M10 X 25 | Europe

205402556

$3.25

520

Hex. Jam Nut M8

232180600

$0.56

530

Hex. Flange Nut M6

233161414

$1.74

535

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Europe

707001003

$15.64

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.47

660

Cover OPS

707000410

$12.34

670

Hex. Flange Screw M6 X 12

210261250

$1.56

680

Cable Support

707003053

$7.72

690

Tie-Rap 180 mm

414115200

$0.09

695

Tie-Rap Clip

710002896

$3.93

697

Tie-Rap 180 mm

414115200

$0.09

700

Tie-Rap 180 mm

414115200

$0.09

701

Tie-Rap 180 mm

414115200

$0.09

702

Tie-Rap 180 mm

414115200

$0.09

710

Tie-Rap 180 mm

414115200

$0.09

720

Tie Wrap 142 mm

293750002

$0.88

740

Air Outlet Support

707001262

$7.39

742

Hex. Flange Screw M6 X 20

207662044

$1.66

743

Flat Washer 6 mm

234062410

$0.64

745

Panel Nut M6 X 1.0

250100198

$1.73

780

Tie-Rap 180 mm

414115200

$0.09

800

Tie-Rap 180 mm

414115200

$0.09

810

Tie-Rap 180 mm

414115200

$0.09

820

Crimp Clamp

293650240

$6.36

840

CVT Filter

707001786

$17.13
