Description

Price

10>10

FRAME 120 - Call your local BRP dealership

415130094

Unavailable

12

RH Deflector, Black Polypropylene

518325782

$13.99

14

LH Deflector, Black Polypropylene

518325783

$13.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20

Adhesive Patch

518325560

$4.69

22

Black, Plug

293730052

$9.19

24

E Module | Includes 10ad to 10ap

518328078

$519.99

26

RH Side Member

518326328

$284.99

28

LH Side Member

518326330

$284.99

30

Front Member

518326198

$64.99

32

Stavex Rivet

293150144

$0.82

34

Hemlock Rivet 6.5 mm

293150120

$7.41

36

Hemlock Rivet, 6.5 mm

293150119

$4.29

38

Leg Cushion

505073317

$8.66

40

Torx Truss Screw M6 X 12

250000767

$2.00

42

RH Reinforcement, Running Board

518326937

$27.99

44

LH Reinforcement, Running Board

518326938

$27.99

46

RH Rear Base

518325973

$21.99

46

LH Rear Base | Includes 10v to 10x

518325974

$21.99

50

Insert

293450275

$12.99

52

Seal

518326656

$9.19

54

Rear Cap

518327105

$22.49

56

Insert

293450275

$12.99

58

RH Stirup | Includes 10p to 10q

518328942

$169.49

58a

Avex Rivet

390909200

$0.30

60

Insert M5 X 0.8

293450268

$2.09

62

LH Stirup | Includes 10s to 10t

518328528

$169.49

62a

Avex Rivet

390909200

$0.30

64

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

66

Full Moon Dart 5 mm

293730042

$2.21

68

Insert M5 X 0.8

293450268

$2.09

70

Rivet Avibulb 3/16

293150203

$2.09

72

Avex Rivet

390909100

$0.30

74

Henrob Rivet

293150146

$2.09

76

Hemlock Rivet, 6.5 mm

293150119

$4.29

78

Hemlock Rivet, 6.4 mm

293150174

$7.86

80

RH Slide Bracket

518324885

$39.99

82

LH Slide Bracket

518324886

$39.99

84

RH Roller

518328120

$189.99

86

LH ROLLER - Call your local BRP dealership

518328121

$189.99

88

Rear Radiator Ass'y

518326666

$720.49

90

Rivet Avibulb 3/16

293150203

$2.09

100

Engine Support

518326178

$64.49

105

Hemlock Rivet, 6.4 mm

293150174

$7.86

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

200a

Vibration Damper

512061516

$61.99

205

Conical Spring Washer M8

234281474

$1.48

300

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

300a

Front Suspension Support

518327487

$289.99

305

Front Member

518327565

$349.99

310

Hex. Flange Elastic Nut M8

233281414

$1.47

320

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

330

Hex. Flange Screw M6 X 25

207662544

$0.64

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Monobolt Rivet, 4.8 mm

293150191

$0.99

360

Monobolt Rivet 6.4

293150182

$3.09

370

Hex. Flange Screw M6 X 16

207661644

$0.74

510

Hex. Flange Elastic Nut M8

233281414

$1.47

530

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

535

Hex. Flange Screw, Scotch Grip

207584034

$2.11

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Column Support

518326848

$15.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1200>1200a

Center Column Support

518326355

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300

Clear Rear Bumper

518324980

$99.49

1340

Full Moon Cap

520000567

$10.99

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55

1700

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

1700a

Washer

517124300

$0.19

1710

Pop Rivet 3/16”

293150108

$1.19

2200

Sub A Support

518327145

$79.99

2300

Panel Nut M5 X 0.8

250000958

$4.23

6000

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

6001

Flat Washer

224061201

$1.37

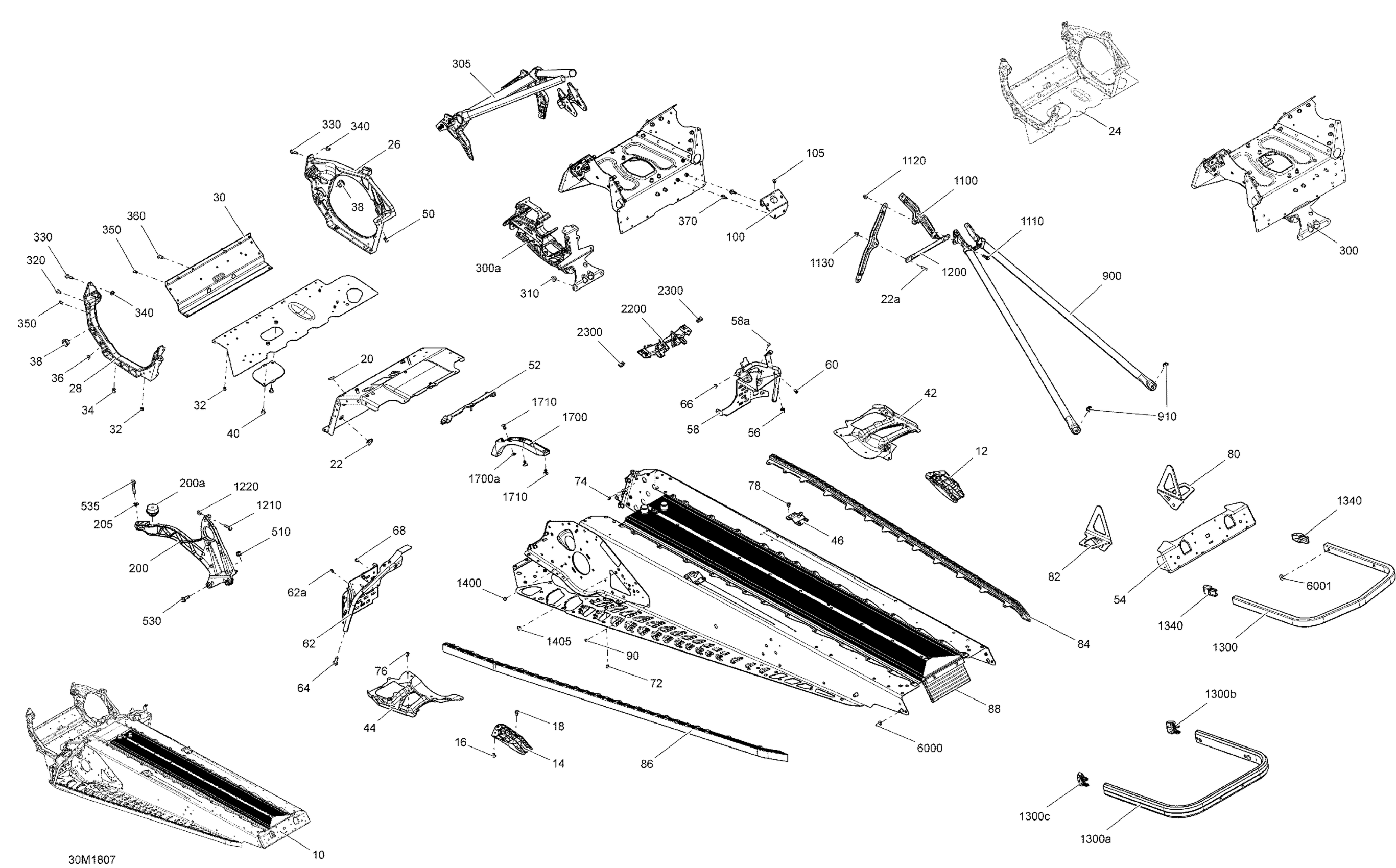

Ski-Doo 3- MXZ 600 ACE, 2018 09- Frame MXZ - 600 ACE Diagram
