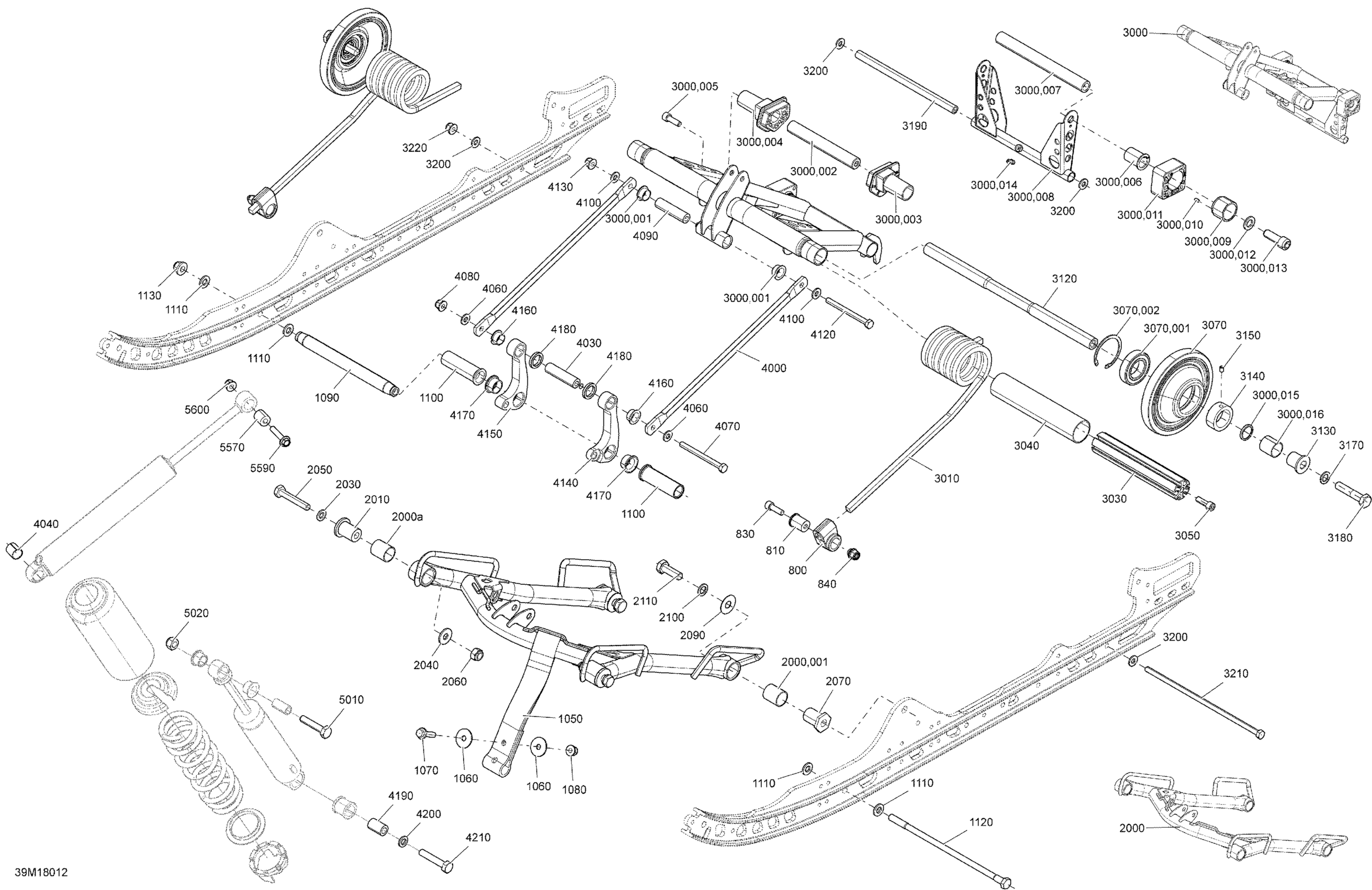

Ski-Doo MXZ 600 ACE, 2018 Rear Suspension MXZ - 600 ACE - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$7.90

810

Spring Support Kit

861805547

$7.90

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

1050

Stopper Strap

503192360

$19.37

1060

Flat Washer 8 mm

250200128

$2.00

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

1080

Elastic Flange Nut M8

233281466

$0.96

1090

Center Shaft

503191764

$58.93

1100

Center Bushing

503191351

Unavailable

1110

Flat Washer

250200143

$3.01

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

2000

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$429.82

2000.001

Bushing

503191554

$5.70

2010

Axle

503190698

$17.13

2030

Washer

503192496

$0.73

2040

Washer

503191926

$1.52

2050

Hex. Cap Screw M10 X 60

207006056

$7.09

2060

Elastic Locking Nut M10

233601466

$2.00

2070

Lower Axle

503191966

$14.90

2090

Washer

503190656

$2.82

2100

Washer

503192491

$4.25

2110

Hex. Cap Screw M12 X 35

250000537

$3.01

3000

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$214.15

3000.001

Swivel Bushing

503191555

$5.54

3000.002

Spring Cam Axe

503191178

$26.84

3000.003

LH Spring Cam

503191191

$13.46

3000.004

RH Spring Cam

503191190

$13.37

3000.005

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

3000.006

Cushion

503191640

$5.54

3000.007

Lower Shaft

503192330

$44.75

3000.008

Pivot Arm

503191302

$114.90

3000.009

Block Guide

503189488

$36.54

3000.01

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

3000.011

LH Block, 4 Positions

503192301

$23.85

3000.011

RH Block, 4 Positions

503192300

$23.85

3000.012

Washer | 7415/7416. 7417/7418.

503189148

$2.64

3000.013

Socket Head Screw M12 X 35

205523554

$4.15

3000.014

Grease Fitting

408200700

$3.21

3000.015

Washer

503191774

$2.18

3000.016

Bushing

503191773

$13.19

3010

Black LH Spring, Square

503191613

$58.18

3010

Black RH Spring, Square

503191612

$58.18

3030

Spring Axle

503191344

$33.55

3040

Plastic Bushing

503191345

$6.69

3050

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

3070

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$35.04

3070.001

Ball Bearing

503191778

$11.12

3070.002

Retaining Ring

415129598

$8.66

3120

Upper Shaft

503191776

$44.75

3130

Bushing

503191775

$14.81

3140

Retaining Ring

503191782

$13.54

3150

Socket Set Screw M6 X 8

206260844

$1.43

3170

Washer

503192491

$4.25

3180

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.18

3190

Pivot Arm Axle

503189156

$20.12

3200

Washer

503192494

$3.01

3210

Bolt M8 X 248mm

503192440

$29.07

3220

Elastic Flange Nut M8

233281466

$0.96

4000

Link Rod

503191802

$26.09

4030

Axle Bar (Long)

503190643

$14.90

4040

Bushing

503191553

$5.54

4060

Washer

503192494

$3.01

4070

Screw M8 X 90

503193372

$4.15

4080

Elastic Flange Nut M8

233281466

$0.96

4090

Axle Bar (Long)

503190643

$14.90

4100

Washer

503192494

$3.01

4120

Screw M8 X 90

503193372

$4.15

4130

Elastic Flange Nut M8

233281466

$0.96

4140

LH Rocker Arm

503191890

$59.67

4150

RH Rocker Arm

503191894

$59.67

4160

Swivel Bushing

503191555

$5.54

4170

Bushing

503191552

$5.54

4180

Plastic Spacer

503190694

$1.99

4190

Central Shock Axle

503190604

$10.84

4200

Washer

503192496

$0.73

4210

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5020

Elastic Locking Nut M10

233601466

$2.00

5570

Bushing

414936000

$11.21

5590

Hex. Flange Screw M8 X 40

207684044

$1.43

5600

Elastic Flange Nut M8

233281466

$0.96
