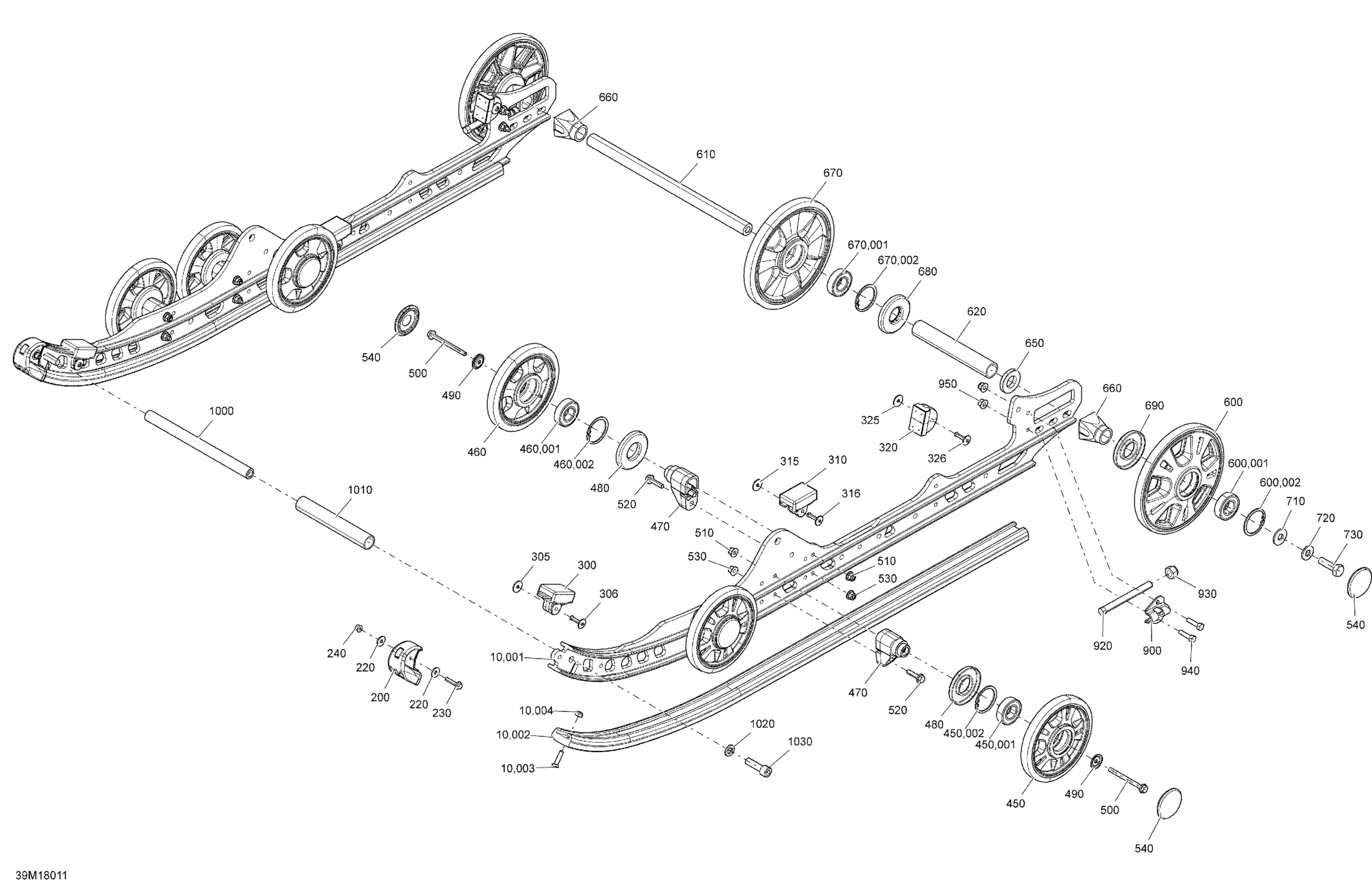

Ski-Doo MXZ 600 ACE, 2018 Rear Suspension MXZ - 600 ACE - Inferior Diagram

#

Description
Price

10.001

Suspension Rail 120

503196633

$244.99

10.002

Black Slider Shoe 120"

503191301

$29.49

10.003

Phillips Screw M6 X 25

208562531

$2.11

10.004

Elastic Stop Nut M6

232561414

$0.55

200

Runner Protector

503191137

$11.99

220

Washer

250200140

$1.01

230

Hex. Flange Screw M5 X 25

207652544

$0.50

240

Flange Elastic Nut M5

233251434

$2.00

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper

503190576

$12.99

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

320

Rubber Stopper

503191291

$19.99

325

Washer

503191273

$1.35

326

Pop Rivet 3/16

293150224

$1.01

450

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

450.001

Ball Bearing | Package-STD

503190396

$14.30

450.002

Retaining Ring

415129371

$12.01

460

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

460.001

Ball Bearing | Package-STD

503190396

$14.30

460.002

Retaining Ring

415129371

$12.01

470

Casted Support

503193894

$16.49

480

Labyrinth Seal

503190434

$6.09

490

Wheel Cup M6

503191820

$4.99

500

Hex. Flange Screw M6 X 70

250000944

$4.44

510

Hex. Flange Elastic Nut M6

233261466

$2.00

520

Hex. Flange Screw M6 X 25

250000945

$4.44

530

Hex. Flange Elastic Nut M6

233261466

$2.00

540

Black, Wheel Cap

503192771

$2.39

600

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

600.001

Ball Bearing | Package-STD

503190396

$14.30

600.002

Retaining Ring

415129371

$12.01

610

Rear Axle

503190429

$59.99

620

Spacer

503196317

$18.49

650

Washer

503190432

$14.22

660

Rear Wheel Spacer

503190428

$8.14

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

670.001

Ball Bearing | Package-STD

503190396

$14.30

670.002

Retaining Ring

415129371

$12.01

680

Labyrinth Seal

503190682

$6.19

690

Labyrinth Seal

503190434

$6.09

710

Washer

503191910

$2.32

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

900

Tensioner

503192583

$8.29

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex Screw M6 X 25

250000619

$1.01

950

Hex. Flange Elastic Nut M6

233261466

$2.00

1000

Axle Strap

503191260

$30.99

1010

Spacer

503196943

$10.99

1020

Washer

503192496

$0.77

1030

Socket Head Screw M10 X 35

205503554

$7.51
