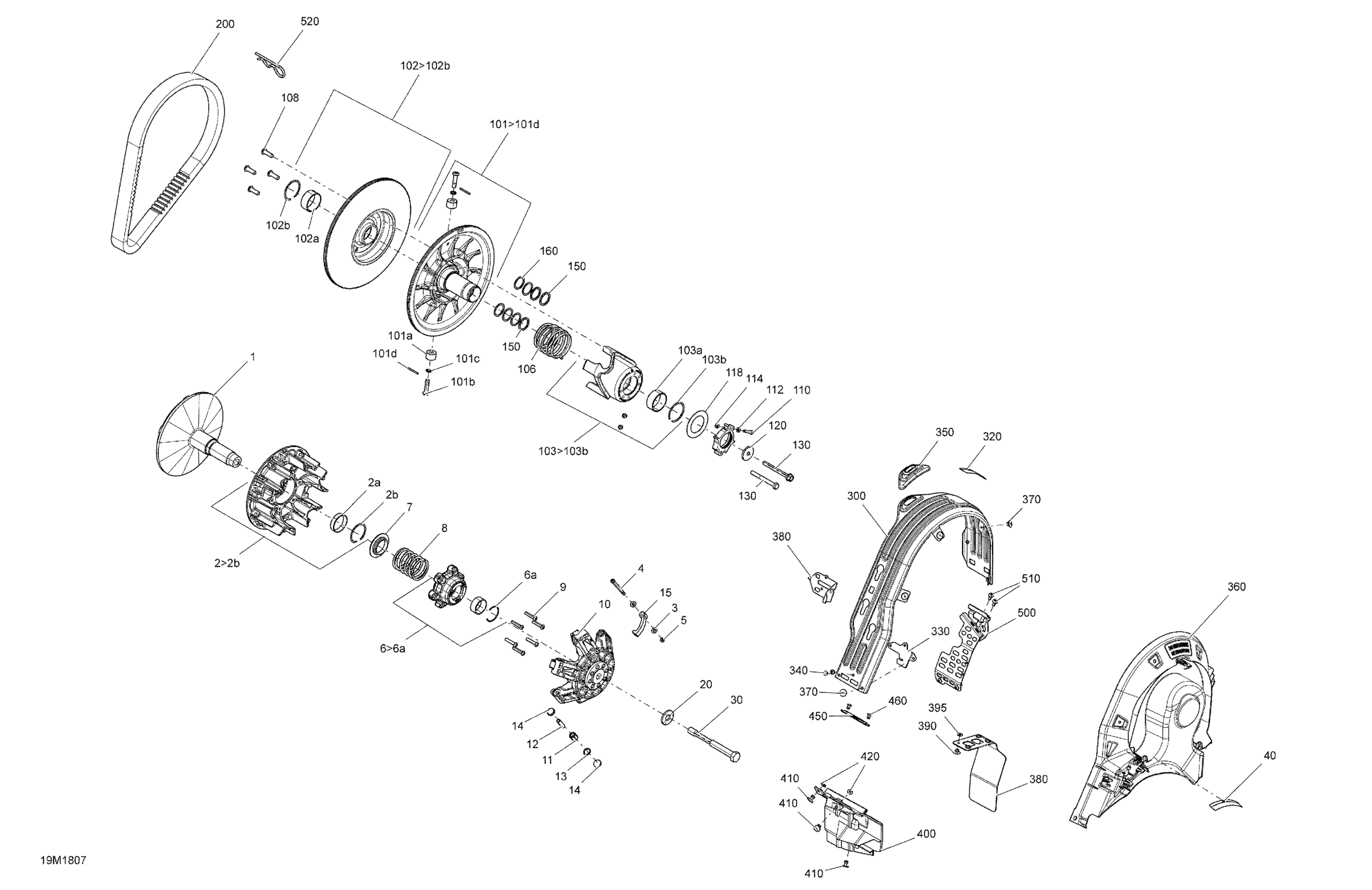

Ski-Doo MXZ 600 ACE, 2018 Pulley MXZ - 600 ACE Diagram

#

Description
Price

1

Fixed Flange Ass'y

417224091

$309.99

2

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

2a

Bushing

417222758

$22.49

2b

Circlip

293370037

$3.19

3

Thrust Washer

417223255

$2.00

4

Ramp Axle

417223694

$11.05

5

Nut-Stop Elastic DIN.985

417224336

$0.87

6

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

6a

Circlip

293370065

$0.98

7

Seat Spring

417223752

$15.27

8

Clutch Spring

417223745

$17.39

9

Torx Screw M6 X 30

250000580

$6.08

10

Governor Cup Ass'y

417223865

$274.99

11

Roller

417223767

$11.59

12

Roller Axle

417223257

$6.99

13

O-Ring

293300185

$0.98

14

Slider Shoe

417223919

$6.83

15

Ramp 715

417223510

$75.99

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt

417300432

$41.49

40

Decal English

516005503

Unavailable

101

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$349.99

101a

Pulley Roller

417127016

$24.49

101b

Pivot Stud

417127294

$14.49

101c

Lock Washer 8 mm

250200009

$2.11

101d

Spring Pin M3 X 30

250400063

$2.11

102

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

102a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

102b

Circlip

293370049

$4.99

103

Cam Ass'y | Includes 100m to 100q

417127391

$159.49

103a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

103b

Circlip

293370049

$4.99

106

Release Spring

417127344

$45.49

108

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

110

Socket Screw M5 X 25

205052544

$1.68

112

Flat Washer M5

234051410

$0.53

114

Elastic Stop Nut M5

232551414

$0.87

118

Washer

417127155

$8.26

120

Strength Washer

517302322

$12.63

130

Hex. Cap Screw M8 X 75

207287544

$5.18

160

Spacer

417300265

$2.29

200

Drive Belt

417300585

$154.99

300

Belt Guard

417300382

$90.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300423

$7.29

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

CVT Air Duct Pulley

417300440

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

380

Stopper

417300445

$10.49

390

Avex Rivet

390909200

$0.30

400

Front Support

417300430

$14.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Flat Washer

517225900

$0.18

450

Reinforcement Plate

417300421

$4.39

460

Avex Rivet

390909100

$0.30

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11
