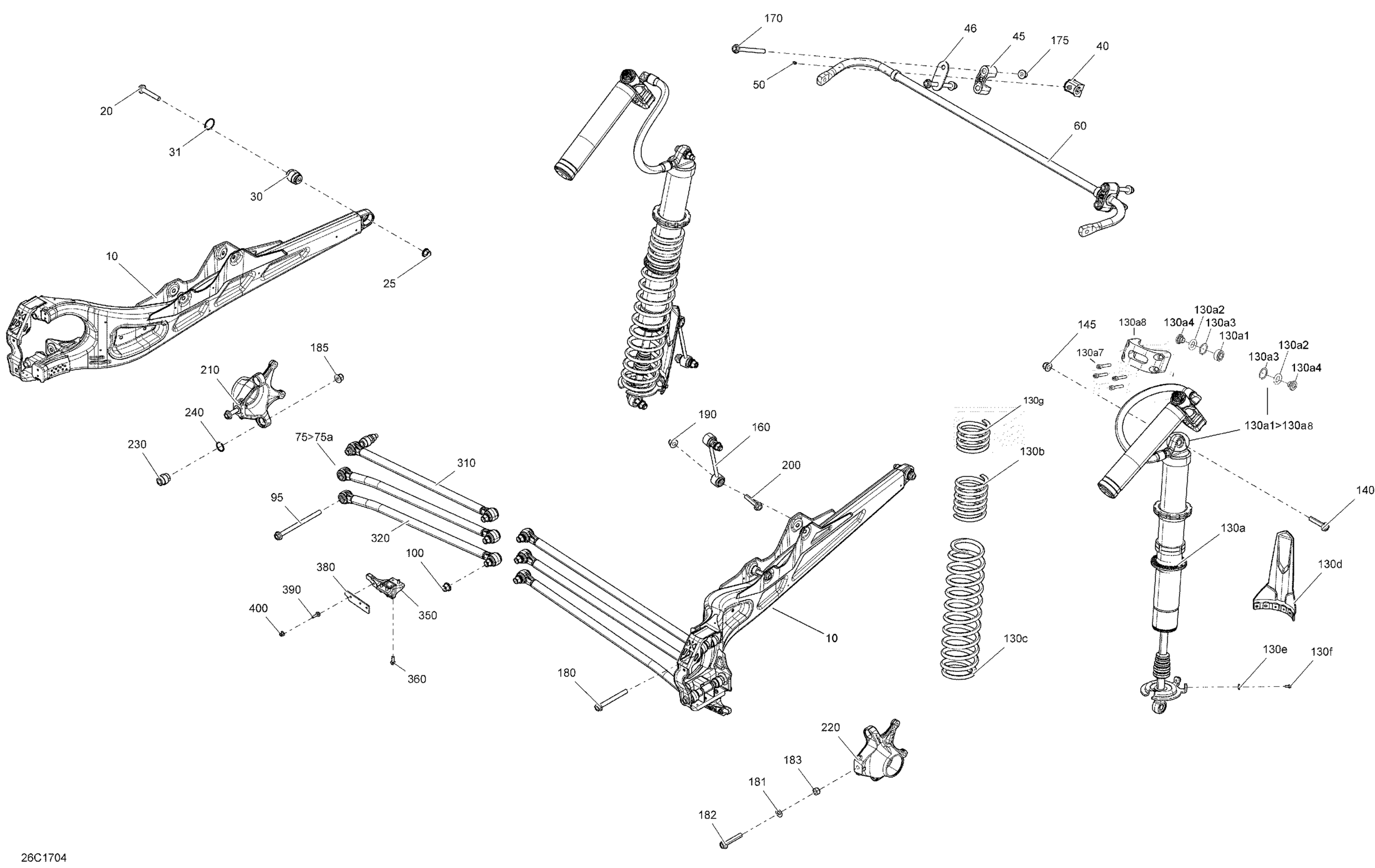

Can-Am Maverick X3, 2017 Rear Suspension Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706004593

$350.74

10

Black, RH Rear Suspension Arm | Model X3

706002568

$350.74

10

Deep Black, LH Rear Suspension Arm

706004593

$350.74

10

Black, RH Rear Suspension Arm | Model X3

706002568

$350.74

10

Black LH Rear Arm | Model X3 Xrs Black

706002694

$378.43

10

Deep Black, RH Rear Suspension Arm

706004606

$378.43

10

Red LH Rear Arm | Model X3 Xrs Gold

706002569

$350.74

10

Red RH Rear Arm | Model X3 Xrs Gold

706002570

$350.74

20

Hex. Flange Screw M12 X 70

250000858

$3.11

25

Elastic Flange Nut M12

233221466

$2.15

30

Radial Joint

706001373

$41.51

31

Retaining Ring

293370093

$7.37

40

Stabilizer Bar Bushing

706004264

$9.22

45

Clamp

706002303

$16.89

46

Support Plate

706002357

$4.60

50

Grease Fitting

408200700

$2.80

60

Stabilizer Bar Ass'y

706002100

$96.89

75>75a

Central Control Link | Includes 75 to 75a

706002099

$115.35

75>75a

Central Control Link | Includes 75 to 75a

706002099

$115.35

75>75a

Central Control Link | Includes 75 to 75a

706002307

$119.97

75a

Radial Joint

706002135

$41.51

95

Screw Flange M12 X 175

250000862

$5.47

100

Elastic Flange Nut M12

233221466

$2.15

130a

RH Rear Shock | Model X3

706002566

Unavailable

130a

LH Rear Shock | Model X3

706002562

$901.51

130a

RH REAR SHOCK - Call your local BRP dealership | Model X3 Xds

706002251

Unavailable

130a

LH REAR SHOCK - Call your local BRP dealership | Model X3 Xds

706001885

Unavailable

130a

Rear Shock | Model X3 Xrs Black

706002255

$1,529.99

130a

SHOCK - Call your local BRP dealership | Model X3 Xrs Gold

706002234

Unavailable

130a1

Spherical Bearing

715900337

$80.74

130a2

O-Ring Bushing

715900338

$10.98

130a3

Circlip

715900480

$11.06

130a4

Reducer

715900481

$27.66

130a5

Reducer

715900481

$27.66

130a5

Reducer

715900481

$27.66

130a6

Ball Joint

706004078

$45.12

130a7

Screw M6 X 35

715900521

$5.52

130a8

Réservoir Clamp

715900522

$36.89

130b

Black, Rear Spring

706002763

$96.89

130b

Black, Rear Spring

706002763

$96.89

130b

Black, Rear Spring | Model X3 Xrs Black

706002564

$119.97

130b

Red, Rear Spring | Model X3 Xrs Gold

706002236

$138.43

130c

Black, Rear Spring | Model X3

706002765

$161.51

130c

Black, Rear Spring | Model X3

706002765

$161.51

130c

Black, Rear Spring | Model X3 Xrs Black

706002563

$147.66

130c

Red, Rear Spring | Model X3 Xrs Gold

706002235

$161.51

130d

Protector

706202215

$9.23

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

130g

Black Rear Spring | Model X3

706002864

$78.43

130g

Black Rear Spring | Model X3

706002864

$78.43

130g

SPRING - Call your local BRP dealership | Model X3 Xrs Black

706002865

Unavailable

130g

SPRING - Call your local BRP dealership | Model X3 Xrs Gold

706002866

Unavailable

140

Flange Screw M12 X 60

250000857

$6.08

140

Flange Screw M12 X 60

250000857

$6.08

140

Hex. Flange Screw M12 X 70

250000858

$3.11

145

Elastic Flange Nut M12

233221466

$2.15

160

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$87.66

170

Screw Flange M12 X 135

250000892

$5.12

175

Elastic Flange Nut M12

233221466

$2.15

180

Screw Flange M12 X 115

250000860

$5.47

181

Hardened Washer

706200281

$2.34

182

Hex. Flange Screw M12 X 70

250000858

$3.11

183

Elastic Stop Nut M12

232521416

$1.40

185

Elastic Flange Nut M12

233221466

$2.15

190

Elastic Flange Nut M12

233221466

$2.15

200

Flange Screw M12 X 60

250000857

$6.08

210

LH Khuckle

706001960

$147.66

220

RH Khuckle

706001961

$147.66

230

Radial Joint

706002317

$41.51

240

Retaining Ring

293370118

$7.37

310

Upper Control Link | Includes 310 to 310a

706002136

$124.58

310

Upper Control Link | Includes 310 to 310a

706002136

$124.58

310

Upper Control Link | Includes 310 to 310a

706002751

$124.58

320

Lower Control Link | Model X3 Xds

706002139

$124.58

320

Lower Control Link | Model X3 Xds

706002139

$124.58

320

Lower Control Link | Model X3 Xrs

706002311

$119.97

350

Deflector

706002905

$14.75

360

Hex. Flange Screw M6 X 20

207662044

$1.66

380

Wear Plate

706002851

$10.98

390

Hex. Flange Screw M6 X 20

207662044

$1.66

400

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
