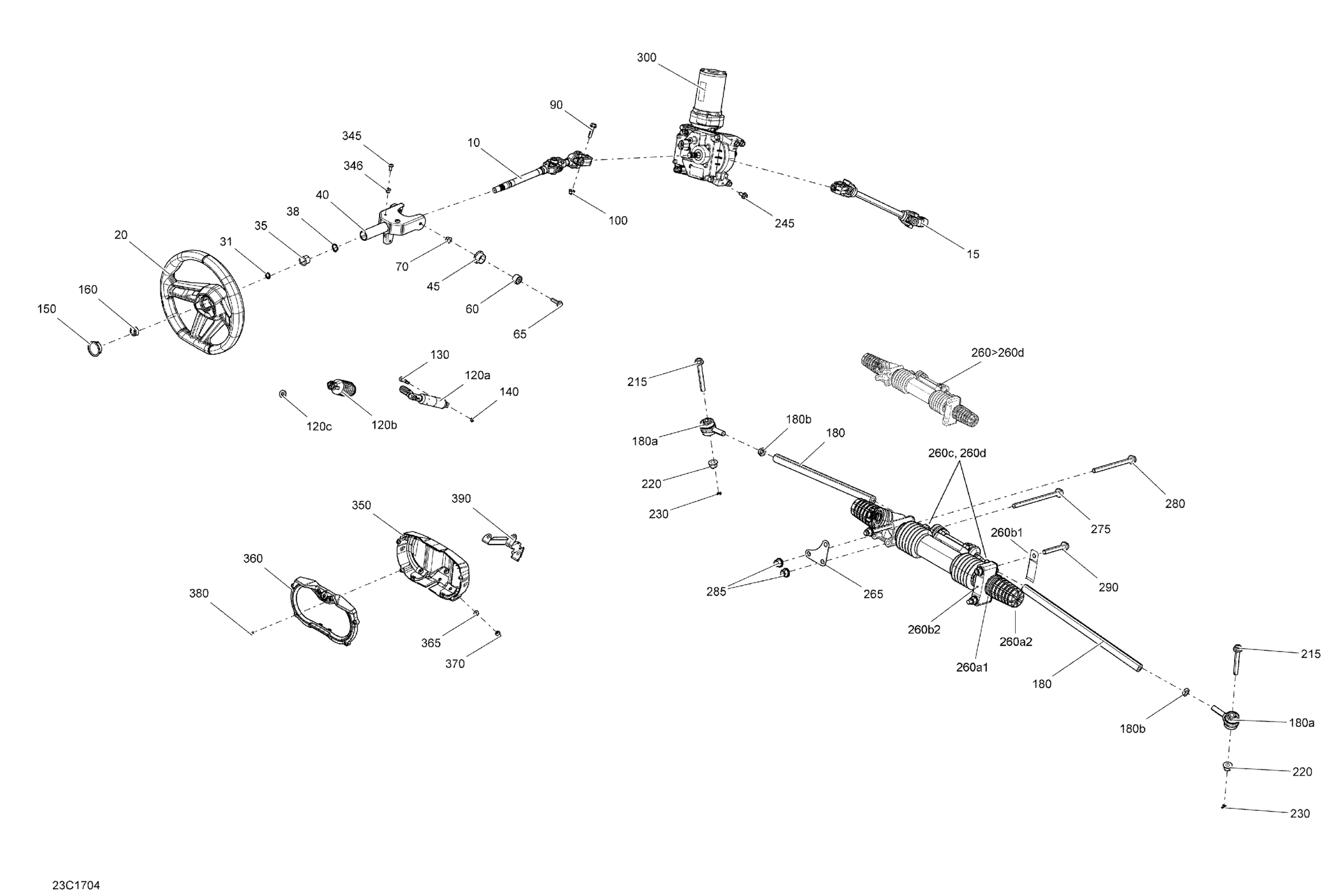

Can-Am Maverick X3, 2017 Steering Diagram

#

Description
Price

10

Steering Shaft

709401722

$189.20

15

Lower Steering Axle Ass'y This part replaces 709401721.

709402752

$175.35

20

Steering Wheel

709401706

$235.35

31

O-Ring

293300144

$3.98

35

Steering Bushing

709402725

$3.17

38

Circlip

293370110

$2.31

40

Steering Support

709401602

$78.43

45

Bushing

709401603

$6.57

60

Bushing

709401604

$4.52

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

70

Hex. Flange Elastic Nut M8

233281414

$1.14

90

Hex. Flange Screw M8 X 35

250000986

$1.74

100

Hex. Elastic Flange Nut M8

233281416

$1.25

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

$13.62

120c

Tie-Rap 180 mm

414115200

$0.09

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561414

$1.55

150

Steering Cap

709401514

$15.35

160

Elastic Lock Nut M16

232511414

$1.64

180>180b

Tie Rod Ass'y | Includes 250 to 250c

709401556

$106.12

180>180b

Tie Rod Ass'y | Includes 250 to 250c

709401556

$106.12

180>180b

Tie Rod Ass'y | Includes 250 to 250c

709401739

$110.74

180a

Ball Joint

709401703

$35.14

180b

Hex. Jam Nut M14

232170411

$1.25

215

Hex Cap Screw M12 X 95

250000864

$3.95

220

Elastic Flange Nut M12

233221416

$2.33

230

Cotter Pin

211400017

$0.25

245

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

260>260d

Rack And Pinion Steering | Includes 260 to 260d

709402021

$443.05

260a>260a2

Kit Rack And Pinion End

703500958

$11.54

260a1

Not Available As Spare Part - Friction Washer

Unavailable

260a2

Not Available As Spare Part - Friction Washer

Unavailable

260b>260b2

Mounting Bracket Kit

703500959

$23.05

260b1

Not Available As Spare Part - Friction Washer

Unavailable

260b2

Not Available As Spare Part - Friction Washer

Unavailable

260c

Steering Rod Nut

715900238

$2.31

260d

Tie Rod end

715900488

$41.51

265

Plate

709402975

$2.75

275

Screw Hex Cap M12 X 190

250000863

$5.47

280

Screw Hex Cap M12 X 160

250000875

$5.54

285

Elastic Flange Nut M12

233221466

$2.15

290

Flange Screw M12 X 85

250000859

$3.95

300

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$997.49

345

Torx Screw M6 X 16

250000755

$0.72

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

350

Cluster Holder

708400005

$20.74

360

Cluster Cover

708400212

$18.43

365

Hex. Flange Elastic Nut M6

233261494

$1.26

370

Torx Screw M6 X 16

250000755

$0.72

380

Torx Truss Screw K40 X 12

250000577

$1.74

390

Cluster Meter Support

707900737

$15.35
