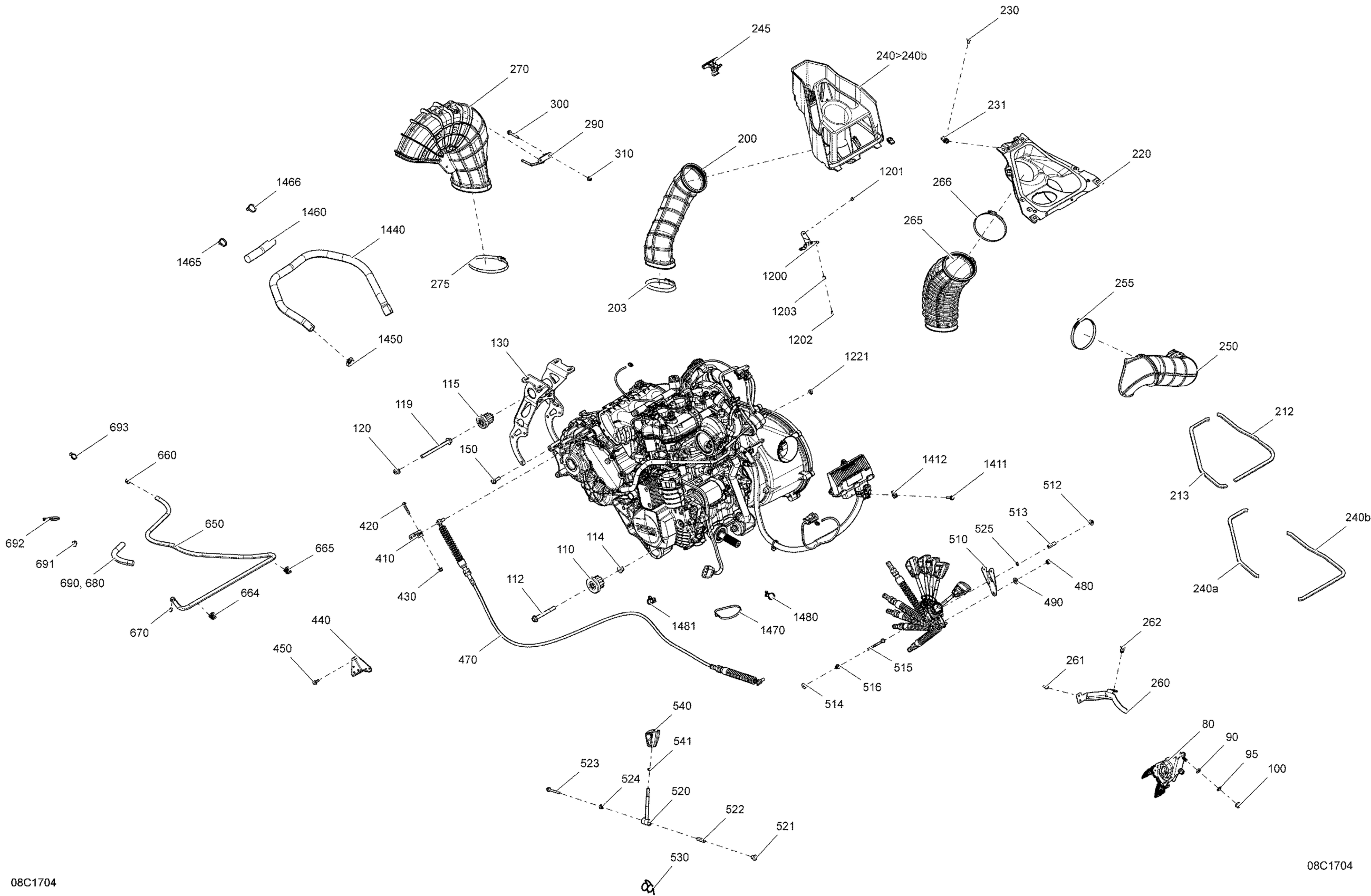

Can-Am Maverick X3, 2017 Engine And Engine Support Diagram

#

Description
Price

80

Throttle Pedal

707001803

$268.63

90

Bushing

707001990

$2.06

95

Push Nut

250100031

$6.66

100

Hex. Flange Nut M8

233081416

$1.87

110

Vibration Damper

707002952

$13.40

112

Hex. Flange Screw M10 X 90

207609046

$6.36

114

Hex. Flange Elastic Nut M10

233201436

$2.00

115

Anti-Vibration Mount

707001808

$13.40

119

Hex. Flange Screw M10 X 125

230602546

$6.99

120

Hex. Flange Elastic Nut M10

233201436

$2.00

130

Rear Engine Support

707001881

$96.99

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

200

Front Inlet Duct

706600077

$23.10

203

Norma Clamp

514052924

$12.15

212

Seal

706600137

$35.79

213

Seal

706600138

$34.30

220

Adaptor

706600129

$41.76

230

Torx Truss Screw M6 X 16

250000721

$1.60

231

Panel Nut M6 X 1.0

250100198

$1.99

240>240b

CVT Filter | Includes 240 to 240b

706600148

$57.43

240a

Seal

706600136

$35.79

240b

Seal

706600139

$34.30

245

Latch

708000909

$6.39

250

Front Outlet Duct

706600078

$24.60

255

Norma Gear Clamp

514052983

$14.90

260

Hose Support

706600147

$14.76

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

262

Tuflok Plastic Rivet

293150230

$1.39

265

Rear Inlet Duct

706600080

$23.10

266

Norma Gear Clamp

514052983

$14.90

270

Rear Outlet Duct

706600081

$89.52

275

Gear Clamp (Norma)

514052861

$7.57

290

Outlet Support

707002056

$10.82

300

Hex. Flange Screw M6 X 40

207664044

$2.12

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

440

Cable Support

707001614

$14.43

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

470

Shifting Cable

707001809

$63.40

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

510

Lower Lever Arm

707000828

$17.13

512

Flanged Bushing

707000847

$0.97

513

Bushing

707001376

$4.09

514

Flat Washer 6 mm

234062410

$0.73

515

Hex. Flange Screw M6 X 70

207667056

$4.15

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

520

Upper Lever Arm

707000711

$35.79

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

525

Circlip

504152282

$3.01

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$7.72

541

Hex. Jam Nut M8

232180491

$7.09

650

Hose

219704549

$46.24

660

Oetiker Clamp

293650042

$2.82

664

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

665

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

670

Straight Fitting

293710039

$6.75

680

Polyurethane Hose 10000Mm Long

219704410

$52.96

690

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

691

Tie-Rap 180 mm

414115200

$0.10

692

Tie-Rap 180 mm

414115200

$0.10

693

Tie-Rap 180 mm

414115200

$0.10

1200

Valve Support

707001981

$2.68

1201

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

1202

Hex. Flange Screw, Scotch Grip

207551634

$1.91

1203

Insert M5 X 0.8

293450268

$1.90

1221

Oeticker Clamp

293650262

$0.97

1411

Hex. Flange Screw M6 X 25

207662554

$1.43

1412

Panel Nut M6 X 1.0

250100198

$1.99

1440

Hose Vent

707001931

$46.99

1450

Tridon Gear Clamp

293650051

$4.15

1460

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$12.64

1465

Tie-Rap 180 mm

414115200

$0.10

1466

Tie-Rap 180 mm

414115200

$0.10

1470

Tie Wrap 368 mm

293750008

$0.97

1480

Dart Tie Rap 200MM

710003168

$6.57

1481

Clip Tie-Rap | Package North Edition

710005037

$7.84
