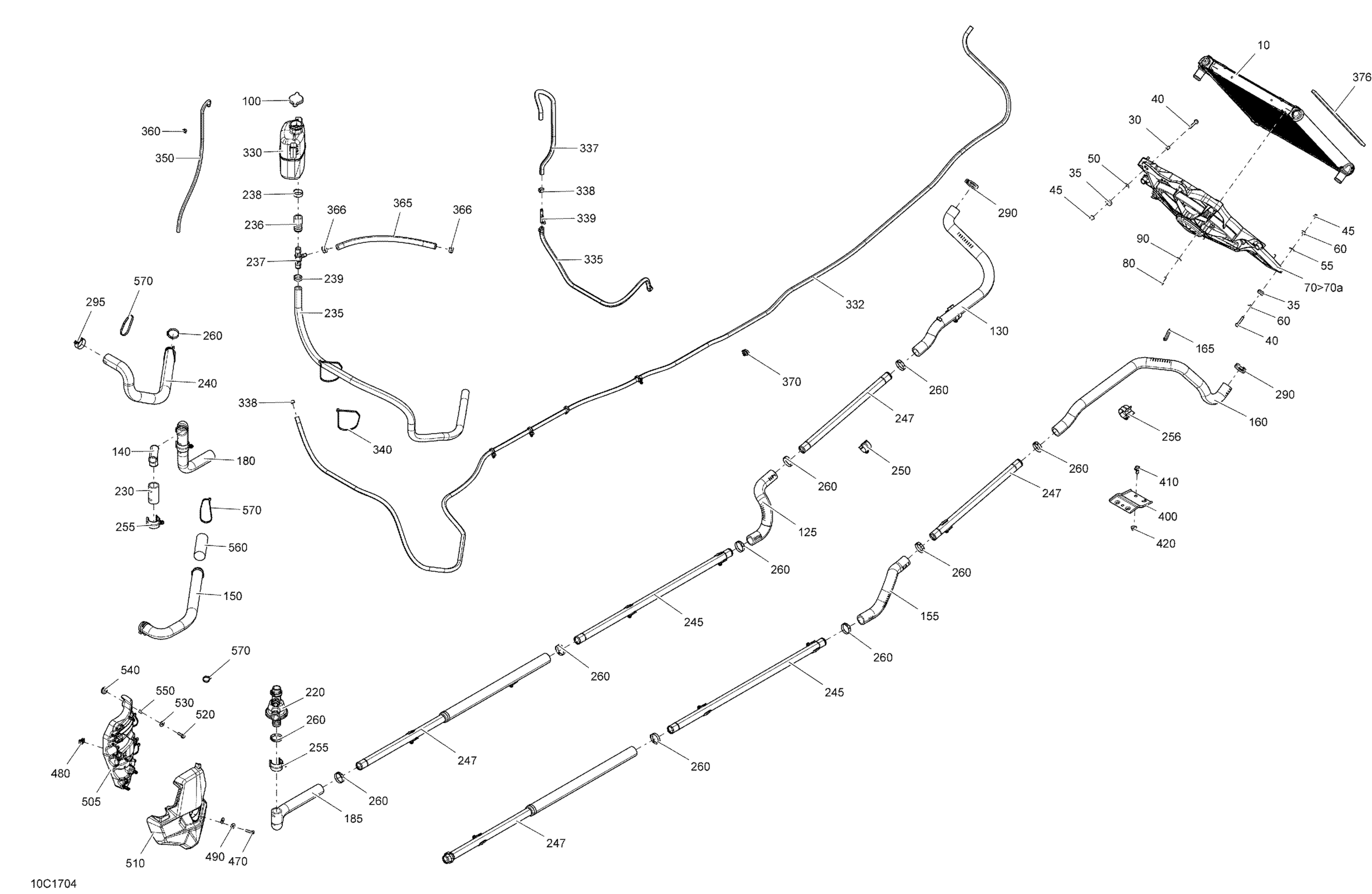

Can-Am Maverick X3, 2017 Cooling System Diagram

#

Description
Price

10

Radiator

709200576

Unavailable

30

Bushing

293900105

$6.07

35

Grommet

709000582

$4.25

40

Hex. Flange Screw M6 X 30

207663054

$4.15

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

50

Stainless Steel Flat Washer

234062670

$2.00

55

Stainless Steel Flat Washer

234062670

$2.00

60

Shoulder Bushing

710004749

$2.69

70>70a

Fan | Includes 70 to 70a

709200588

$217.88

70a

Shroud

709200589

$135.04

80

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Flat Washer 6 mm

234062410

$0.73

100

Radiator Pressure Cap

709200207

$21.61

125

Radiator Hose

709200764

$14.33

130

Radiator Hose

709200765

$56.52

140

T-Fitting

509000219

$14.90

150

Pump Hose

709200766

$15.64

155

Outlet Radiator Hose

709200670

$18.63

160

Outlet Radiator Hose

709200593

$33.55

165

Tie-Rap 180 mm

414115200

$0.10

180

Hose

709200769

$39.52

185

Hose

709200770

$38.03

220

Thermostat Housing

709200581

$91.76

230

Thermostat Hose

709200598

$14.33

235

Hose | Package Cab

219704443

$7.64

236

Tank Hose

709200771

$30.57

237

T Fitting

509000996

$10.61

238

Oetiker Gear Clamp

293650165

$4.96

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

240

Thermostat Hose

709200772

$32.81

245

Heater Tubing

709200657

$13.58

247

Heater Tubing

709200664

$13.58

250

Retainer

275500963

$4.09

255

Retainer

275500526

$4.28

256

Retainer

275500590

$8.24

260

Gear Clamp

509000162

$4.90

290

Norma Spring Clamp

293650166

$4.15

295

Aba Gear Clamp, 26-38 MM

509000443

$5.64

330

Coolant Tank

709201323

$72.36

332

Was 415129508 Bleeder Hose

219704416

$11.48

335

Was 415129508 Bleeder Hose

219704416

$11.48

337

Was 415129508 Bleeder Hose

219704416

$11.48

338

Crimp Clamp, 15.3-706R

293650047

$3.03

339

Y-Fitting

293710059

$9.40

340

Tie-Rap 180 mm

414115200

$0.10

350

Polyurethane Hose 10000Mm Long

219704410

$52.96

360

Spring Clamp

414554800

$0.81

365

Hose 9.5MM 3000MM Long

219704445

$61.16

366

Oetiker Clamp | Europe

293650030

$4.96

370

Dart Tie Rap 200MM

710003168

$6.57

376

Seal 3000MM Long

219704386

$26.09

400

Hose Support

709200668

$5.10

410

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

420

Hex. Flange Nut M8

233181414

$1.04

470

Torx Truss Screw M6 X 20

250000350

$5.04

480

Panel Nut M6 X 1.0

250100198

$1.99

490

Stainless Steel Flat Washer

234062670

$2.00

505

Hose Support

705010900

$19.37

510

Hose Support Cover

705010901

$16.39

520

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

530

Flat Washer 6 mm

234062410

$0.73

540

Grommet

709000582

$4.25

550

Bushing

293900105

$6.07

560

Tubing 35 MM 1000MM Long

219704428

$9.84

570

Tie-Rap 180 mm

414115200

$0.10
