Description

Price

10

Pump Support

271001976

$51.99

30

Square Stud

250300046

$14.82

90

Gasket

271002033

$1.67

100

Watertight Seal

293250084

$7.49

120

KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.

295501264

$312.49

120h

Torx Screw M6 X 14

250000384

$7.51

120j

Sealing Washer

250200114

$4.44

120k

Socket Drain Plug M6 X 12

250500005

$16.49

130

Venturi Bushing

293900007

$5.45

140

O-Ring

293300121

$8.32

150

Strait Fitting

293710124

$17.39

170

Hex Screw M6 X 20

250000965

$2.11

171

Hex Screw M6 X 20

250000965

$2.11

190

Hex Sems Screw M8 X 30

250000967

$2.85

191

Hex Sems Screw M8 X 30

250000966

Unavailable

200

Intake Grate - Anodized

271001983

$66.99

220

Hex Sems Screw M8 X 25

250000968

$2.85

221

Hex Sems Screw M8 X 25

250000930

Unavailable

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

223

Flat Washer M8.5 x 18

293050001

$3.07

224

Flat Washer

279000336

$11.57

225

Hex. Elastic Nut M8 Brass

232581200

$2.22

230

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

230

Carbon Ring Kit | Includes 280b to 280b5

295501202

$84.99

230a

Drive Shaft

271001974

$434.49

230a

Drive Shaft

271002004

$402.49

230a

Drive Shaft

271001974

$434.49

230c

C-Clip

271001577

$3.27

230c

C-Clip

271001575

$6.11

230c

C-Clip

271001577

$3.27

230d

O-Ring

293300107

$1.01

230d

O-Ring

293300044

$1.05

230d

O-Ring

293300107

$1.01

240

Drive Shaft Plug

272000173

$8.68

270

Carbon Ring

271002109

Unavailable

280

Bellow This part replaces 271001422.

271001933

$23.49

290

Norma Clamp

293650079

$11.60

1000a

Impeller Housing

271002018

$294.99

1000d

Wear Ring

267000917

$84.99

1000d

Wear Ring

267000419

$84.99

1000d

Wear Ring

267000372

$84.99

1010

Hex. Screw 10-32 X 3/8", Stainless

204100269

$1.14

1020

Black, Plastic Plug

267000469

$7.59

1030

Neoprene Seal

293200087

$12.63

1040

Water Outlet

271000785

$3.80

1050

Plug | Includes 370z to 370z1

267000282

$19.49

1060

Impeller Shaft

267000388

$116.49

1070

Angled Bearing This part replaces 267000030.

267000900

$80.99

1080

Elastic Flange Nut M20

250100104

$12.66

1100

O-Ring

293300090

$7.20

1110

Seal

271002071

$33.99

1120

Spacer

271001393

$8.59

1130

Oil Seal

293200089

$19.99

1140

Circlip

293370038

$8.79

1160

Impeller Assembly | Includes 360n to 360n3

267000951

$497.99

1160

Impeller Ass'y | Includes 1160 To 1160a

267001019

$391.99

1160

Impeller Ass'y | Includes 1160 to 1160a

267001021

$497.99

1160d

O-Ring

293300044

$1.05

1170

Guard

271002228

$12.99

1170

Guard

271002225

$11.99

1170

Guard

271002228

$12.99

1210

Impeller Cover

267000428

$18.49

1220

O-Ring

293300086

$3.59

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

1240

Stainless Flat Washer M6

234061600

$0.33

1250a

Venturi Anodized

271001999

$40.99

1250d

Siphon Tube

271001885

$2.49

1260

O-Ring

293300013

$8.18

1270

Hex Sems Screw M8 X 25

250000968

$2.85

1271

Hex Sems Screw M8 X 25

250000930

Unavailable

1280

Anode Zinc

271001920

$15.99

1290

Hex Screw M6 X 20

250000965

$2.11

1291

Hex Screw M6 X 20

250000965

$2.11

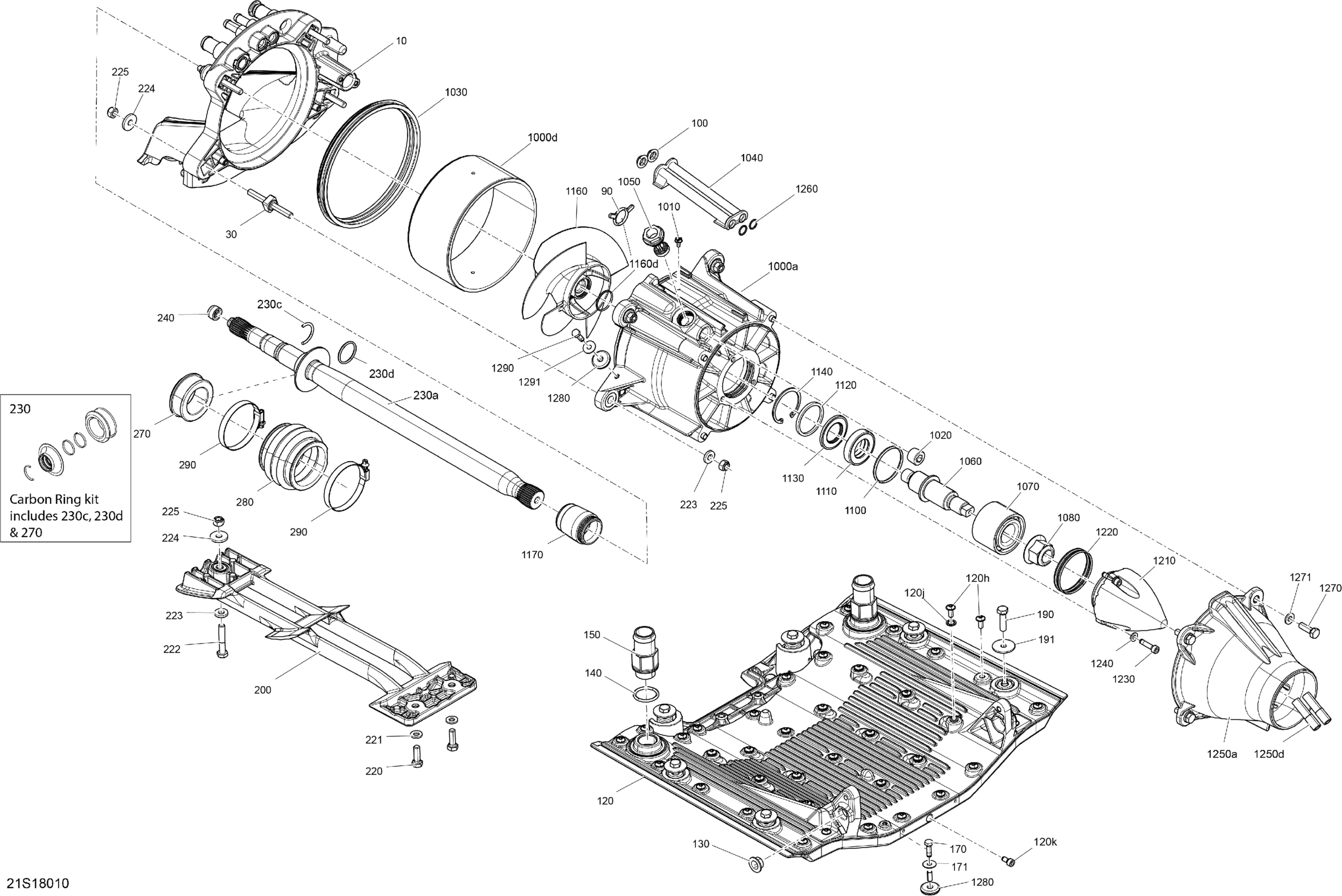

Sea-doo GTX 300, 2018 Propulsion - GTX - RXT 300 Diagram

Pump Support

Square Stud

Gasket

Watertight Seal

KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.

Torx Screw M6 X 14

Sealing Washer

Socket Drain Plug M6 X 12

Venturi Bushing

O-Ring

Strait Fitting

Hex Screw M6 X 20

Hex Screw M6 X 20

Hex Sems Screw M8 X 30

Hex Sems Screw M8 X 30

Intake Grate - Anodized

Hex Sems Screw M8 X 25

Hex Sems Screw M8 X 25

Hexagonal Head Cap Screw M8 X 45

Flat Washer M8.5 x 18

Flat Washer

Hex. Elastic Nut M8 Brass

Carbon Ring Kit | Includes 280b to 280b4

Carbon Ring Kit | Includes 280b to 280b5

Drive Shaft

Drive Shaft

Drive Shaft

C-Clip

C-Clip

C-Clip

O-Ring

O-Ring

O-Ring

Drive Shaft Plug

Carbon Ring

Bellow This part replaces 271001422.

Norma Clamp

Impeller Housing

Wear Ring

Wear Ring

Wear Ring

Hex. Screw 10-32 X 3/8", Stainless

Black, Plastic Plug

Neoprene Seal

Water Outlet

Plug | Includes 370z to 370z1

Impeller Shaft

Angled Bearing This part replaces 267000030.

Elastic Flange Nut M20

O-Ring

Seal

Spacer

Oil Seal

Circlip

Impeller Assembly | Includes 360n to 360n3

Impeller Ass'y | Includes 1160 To 1160a

Impeller Ass'y | Includes 1160 to 1160a

O-Ring

Guard

Guard

Guard

Impeller Cover

O-Ring

Socket Head Screw M6 X 25, Scotch Grip

Stainless Flat Washer M6

Venturi Anodized

Siphon Tube

O-Ring

Hex Sems Screw M8 X 25

Hex Sems Screw M8 X 25

Anode Zinc

Hex Screw M6 X 20

Hex Screw M6 X 20
