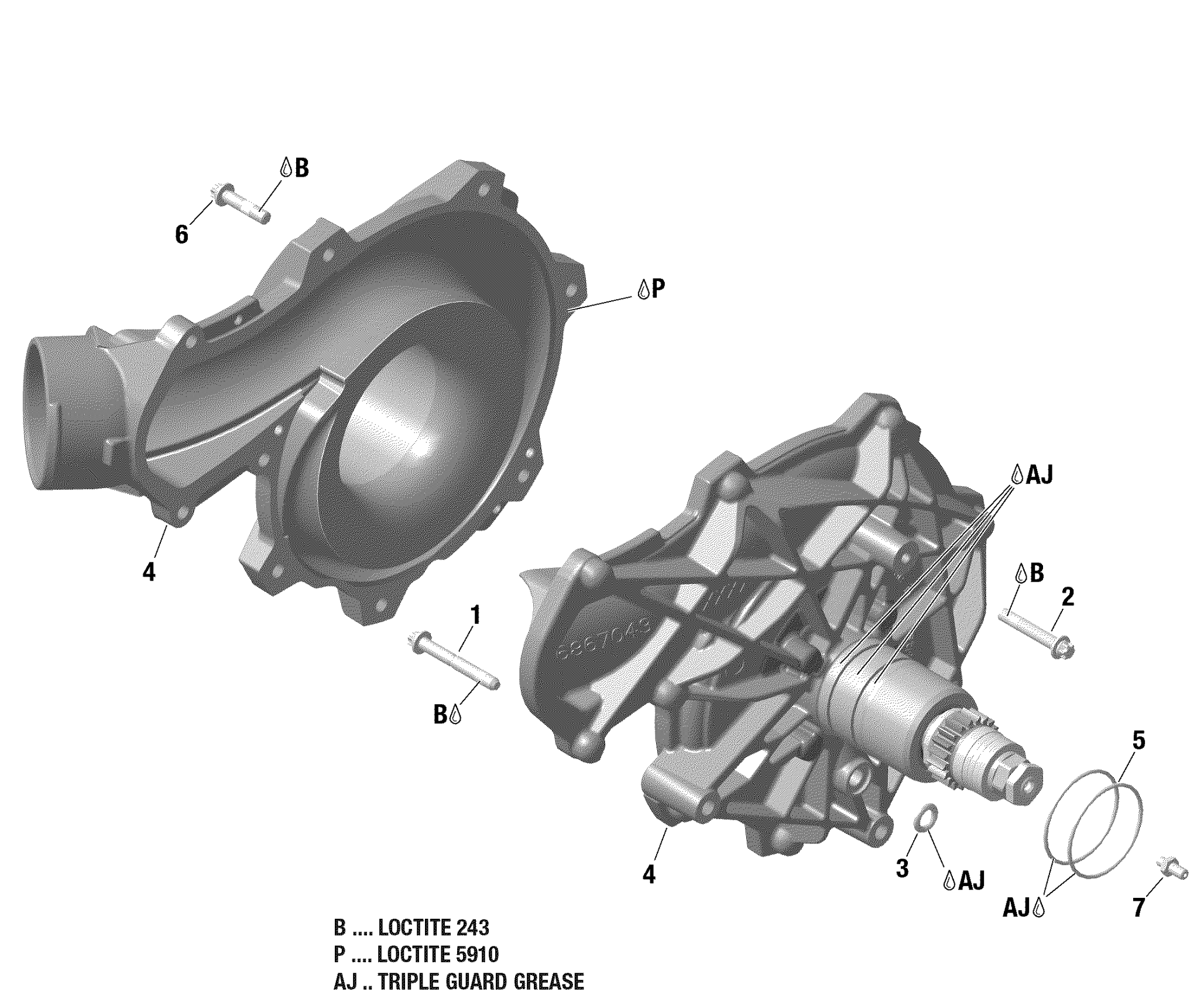

Sea-doo GTX 300, 2018 Supercharger Diagram

#

Description

Price

1

Torx Flange Screw M6 X 45

420641198

$3.38

2

Torx Flange Screw M6 X 35

420641258

$2.78

3

O-Ring

420950860

$3.20

4>6

Supercharger Ass'y | Includes no. 4-6

420490670

$1,487.17

5

O-Ring | Included in gasket kit

420650270

$5.99

6

Torx Flange Screw M6 X 25

420641238

$2.68

7

Oil Spraying Jet

420456431

$24.67
