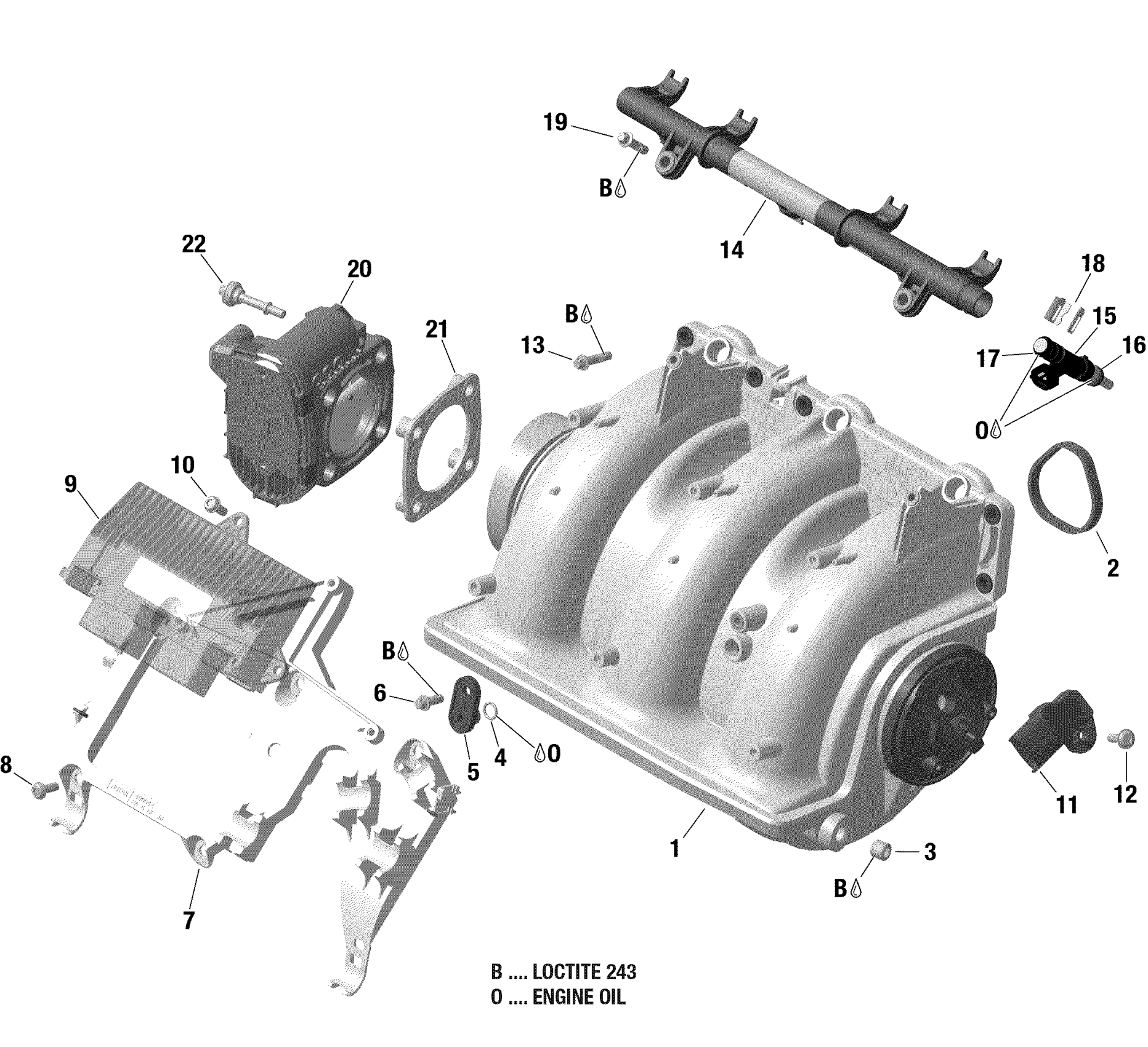

Sea-doo GTX 300, 2018 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1>6

Induction Manifold | Includes no. 1-6

420867946

$394.52

2

Gasket | Included in gasket kit

420950740

$3.61

3

Plug Screw M12

420840653

$11.18

4

O-Ring

420230461

$0.96

5

Cover

420460980

$2.68

6

Torx Flange Screw M6 X 16

420641048

$2.46

7

Base Plate

420460842

$19.47

8

Torx Flange Screw M6 X 16

420641588

$1.74

9

Electronic Module Programmable

420666064

$691.57

9

Electronic Module Programmable

420666064

$691.57

10

Torx Flange Screw M6 X 16

420641588

$1.74

11

Pressure Sensor And Air Temperature

515178563

$134.52

12

Torx Flange Screw M6 X 20

420841103

$2.54

13

Torx Flange Screw M6 X 25

420641238

$2.68

14

Fuel Rail

420874414

$120.22

15>17

Injector | Includes no. 12-14

420874000

$154.67

16

O-Ring

420831050

$4.51

17

O-Ring

420831060

$8.94

18

Injector Clip

420853030

$2.46

19

Torx Flange Screw M6 X 25

420641238

$2.68

20

Throttle Body Socket Ass’y

420892592

$401.67

21

Rubber Gasket

420950792

$8.89

22

Allen Screw M6 x 30,5

420440561

$3.67
