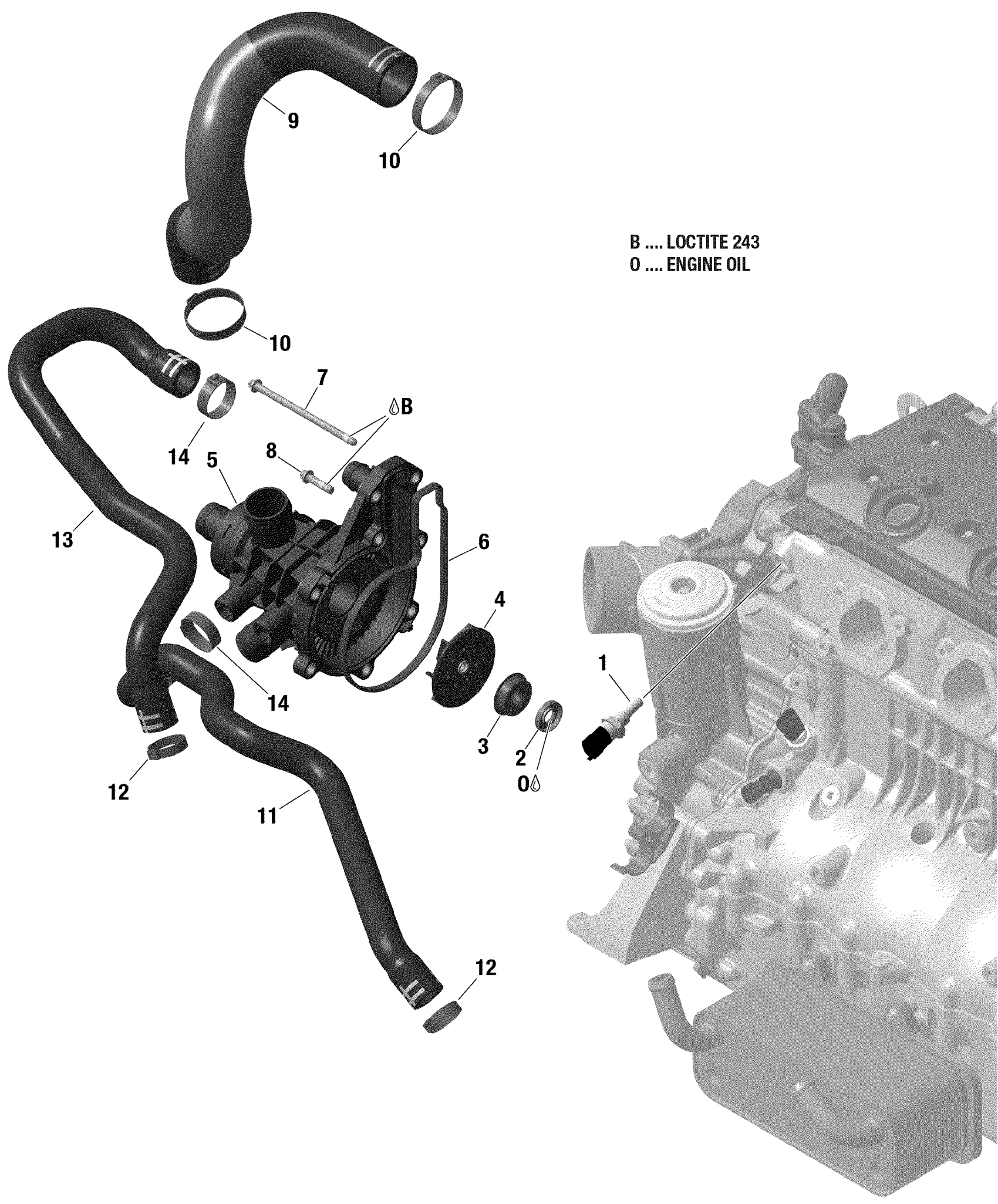

Sea-doo GTX 300, 2018 Engine Cooling Diagram

#

Description
Price

1

Temperature Sensor

278002895

$31.82

2

Oil Seal

420650315

$9.62

3

Rotary Seal

420650371

$35.72

4

Impeller

420922804

$14.27

5>6

Water Pump Housing Ass'y | Includes no. 5-6

420922934

$262.57

6

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

7

Torx Flange Screw M6 X 105

420641338

$6.11

8

Torx Flange Screw M6 X 25

420641238

$2.68

9

Formed Hose This part replaces 420822791.

5922823

Unavailable

10

Oetiker Clamp

420851687

$9.43

11

Formed Hose

420822763

$40.27

12

Clamp

420853161

$7.87

13

Formed Hose

420822768

$19.47

14

Clamp 28.4 31.6

420851671

$1.87
