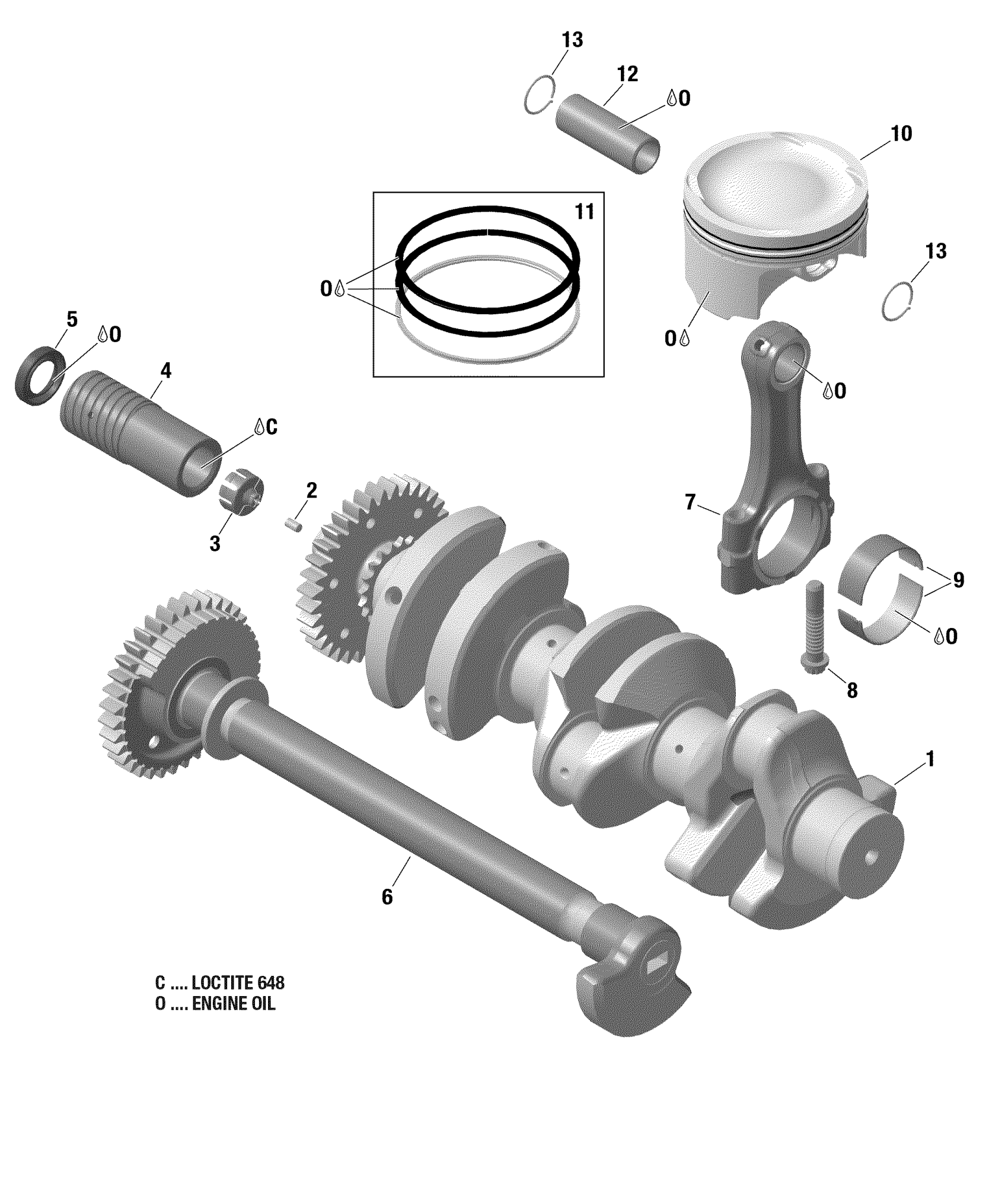

Sea-doo GTX 300, 2018 Crankshaft, Pistons And Balance Shaft Diagram

#

Description

Price

1>2

Crankshaft Ass'y

420819495

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.34

3

Stop Sleeve

420660280

$10.91

4

Output Sleeve This part replaces 420847952.

420947770

$98.12

5

Sealing Ring

420630551

$12.29

6

Balance Shaft Ass'y

420820276

$578.33

7>8

Connecting Rod Ass'y This part replaces 420917762.

420917764

$237.22

8

Connecting Rod Screw M10 X 1

420640996

$9.39

9

Half-Bearing

420933523

$14.27

10>11

Piston Ass'y, 99.94 mm | Includes no. 7-8

420892738

$253.47

11

Piston Set Ring, Standard

420890385

$59.12

12

Piston Pin

420916472

$27.27

13

Piston Circlip

420245436

$4.33
