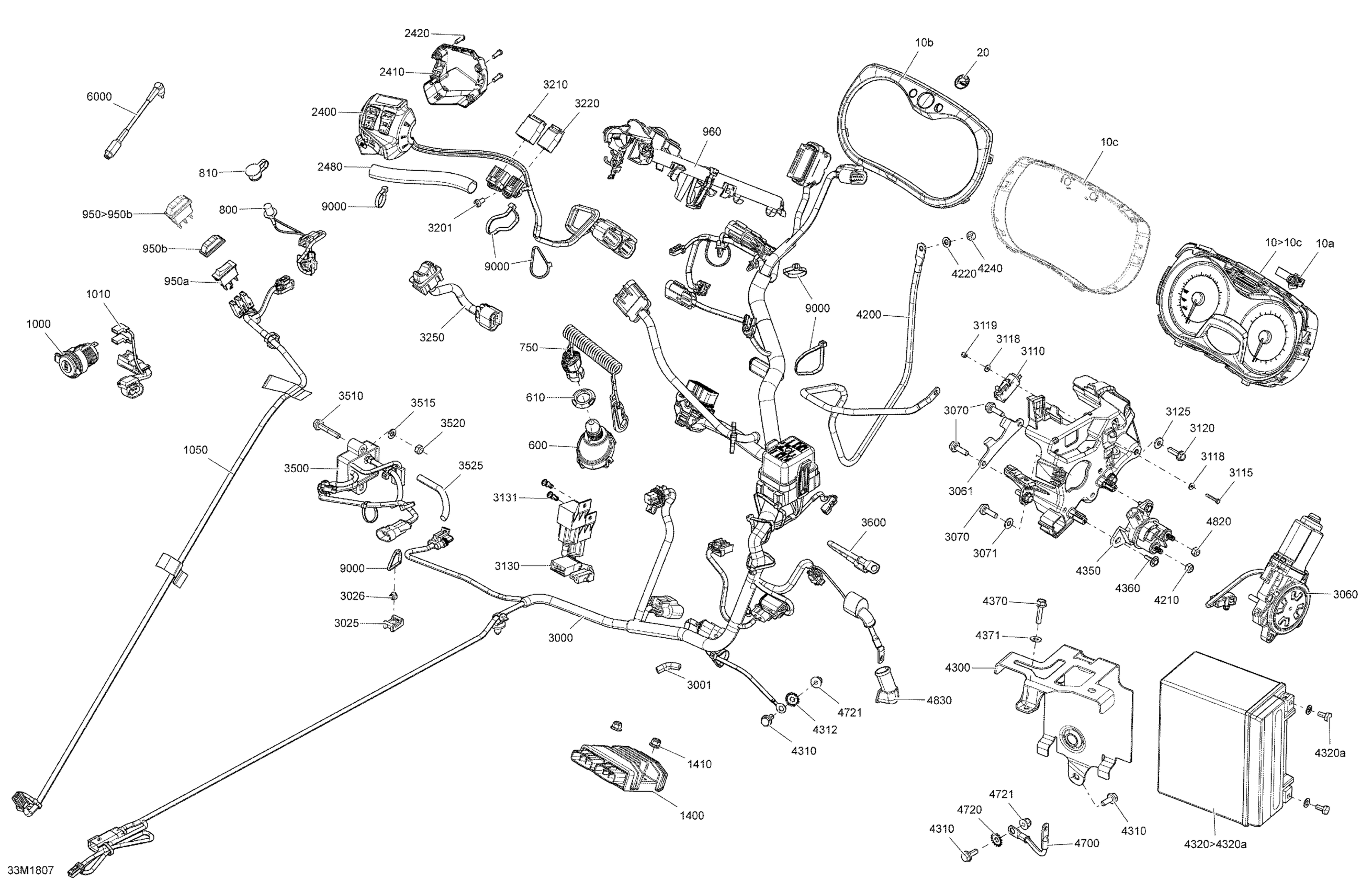

Ski-Doo 3- GRAND TOURING 900 ACE 2018 10- Electrical System Grand Touring - 900 ACE - Package SE Diagram

#

Description
Price

10

Indicator | Except Package SWT

515177913

$569.99

10.001

Speedometer Button | XTP

415129355

$15.80

10.002

Gauge Ring

415129348

$13.99

10.003

Lens | XTP

415129349

$24.49

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

750

Green - RF Key Ass'y | Includes 625 to 625d

515178287

$84.99

800

Visor Harness

515177837

$33.99

810

Cap

572103300

$10.49

950

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

950.001

Rocker Switch

510004413

$8.79

950.002

Switch Protector

510004414

$7.99

960

Connector Plate

515177134

$17.30

1000

DC Outlet

710001248

$37.99

1010

12 Volts Outlet Harness

515177400

$33.99

1050

Seat Harness

515178203

$38.99

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2400

LH Switch Housing

515178197

$264.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

3000

Main Harness | Includes 3000 to 3000c

515177990

$449.99

3001

Trim 1000Mm Long

219704354

$15.99

3025

Tie Rap Mount (screwable)

515176795

$5.39

3026

Avex Rivet

390909200

$0.30

3060

Electrical Motor Ass'y

515178574

$259.99

3061

PLATE - Call your local BRP dealership

515177039

Unavailable

3070

Hex. Flange Screw M6 X 20

207662044

$2.00

3071

Flat Washer

224061121

$0.53

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3118

Flat Washer M3, Stainless

234032600

$0.55

3119

Elastic Stop Nut M3

232531423

$0.55

3120

Hex. Flange Screw M6 X 20

210262040

$2.11

3125

Flat Washer

250200039

$0.74

3130

Reverse Harness | Reverse Harness

515177350

$57.99

3131

Rivet

515177929

$2.21

3201

Pan Screw Forming, 7500C

250000690

$2.11

3210

Male Terminal Housing, 6 Circuits

515175662

$8.79

3220

Male Terminal Housing, 4 Circuits

515175846

$8.79

3250

Switch

515177394

$77.49

3500

Compressor Module

515177234

$409.99

3510

Hex. Flange Screw M6 X 35

207663544

$0.90

3515

Flat Washer 6 mm

234061410

$1.36

3520

Elastic Stop Nut M6

232561434

$1.99

3525

Tubing 6 Mm 3000Mm Long

219704425

$13.75

3600

Ground Wire

515177014

$17.99

4200

Battery Wire

515177427

$30.99

4210

Elastic Stop Nut M6

232561434

$1.99

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561434

$1.99

4300

Battery Support

515177348

$31.99

4310

Hex. Flange Screw M6 X 16

207661644

$0.74

4312

Lock Washer Serrated M6

250200041

$1.15

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320.001

Battery Bolt Kit

250000282

$7.29

4350

Starter Relay

278003012

$42.49

4360

Screw M4 X 16

250000725

$3.49

4370

Hex. Flange Screw M6 X 25

250000793

$2.11

4371

Flat Washer

224061121

$0.53

4700

Ground Wire

515176358

$27.99

4720

Lock Washer Serrated M6

250200041

$1.15

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4820

Elastic Stop Nut M6

232561434

$1.99

4830

Protector Cap

710000495

$10.99

6000

Extension

515175851

$11.12

9000

Tie Wrap 142 mm

293750002

$1.25

9000

Tie-Rap 180 mm

414115200

$0.11

9000

Tie Wrap 368 mm

293750008

$1.04

9000

Tie Wrap 94 mm | 4X4

293750001

$1.03
