Description

Price

10

Black Handle Bar

506152711

$104.99

20

Grip

506152501

$12.58

25

LH HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152800

$33.99

25

RH HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152801

$33.99

50

Insulant

506153178

$12.99

400

HANDLEBAR EXTENSION 115 - Call your local BRP dealership

506152759

$73.99

405

LH HANDLEBAR SUPPORT - Call your local BRP dealership

506152729

Unavailable

406

RH HANDLEBAR SUPPORT - Call your local BRP dealership

506152730

Unavailable

410

Steering Support | Includes 40 to 40a

506152751

$13.99

420

Socket Head Screw M8 X 45

205084560

$3.59

425

Socket Head Screw M8 X 60

205086060

$4.12

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

500

STEERING PAD - Call your local BRP dealership

506152721

Unavailable

1000

Steering Column

506152964

$199.99

1010

Upper Half-Housing

506152508

$9.23

1012

Lower Half-Housing

506152217

$7.62

1014

Upper Anti-Vibration Gasket

506152509

$4.79

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 X 70

207667056

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 X 70

207667056

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1040

Housing Bushing

506152297

$12.99

1041

Hex. Flange Screw M6 X 70

207667056

$4.44

1042

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152297

$12.99

1051

Hex. Flange Screw M6 X 70

207667056

$4.44

1052

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1060

Plate

506152163

$12.99

1220

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

1230

Elastic Locking Nut M10

233601466

$2.11

1250a

Tie-Rod Ass'y

506152496

$62.49

1250b

LH Thread Ball Joint

506152081

$41.49

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250d

RH Threaded Ball Joint

506152684

$44.49

1250e

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1290

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

6000

Torx Screw Truss Head K50X20 T20

250000760

$2.11

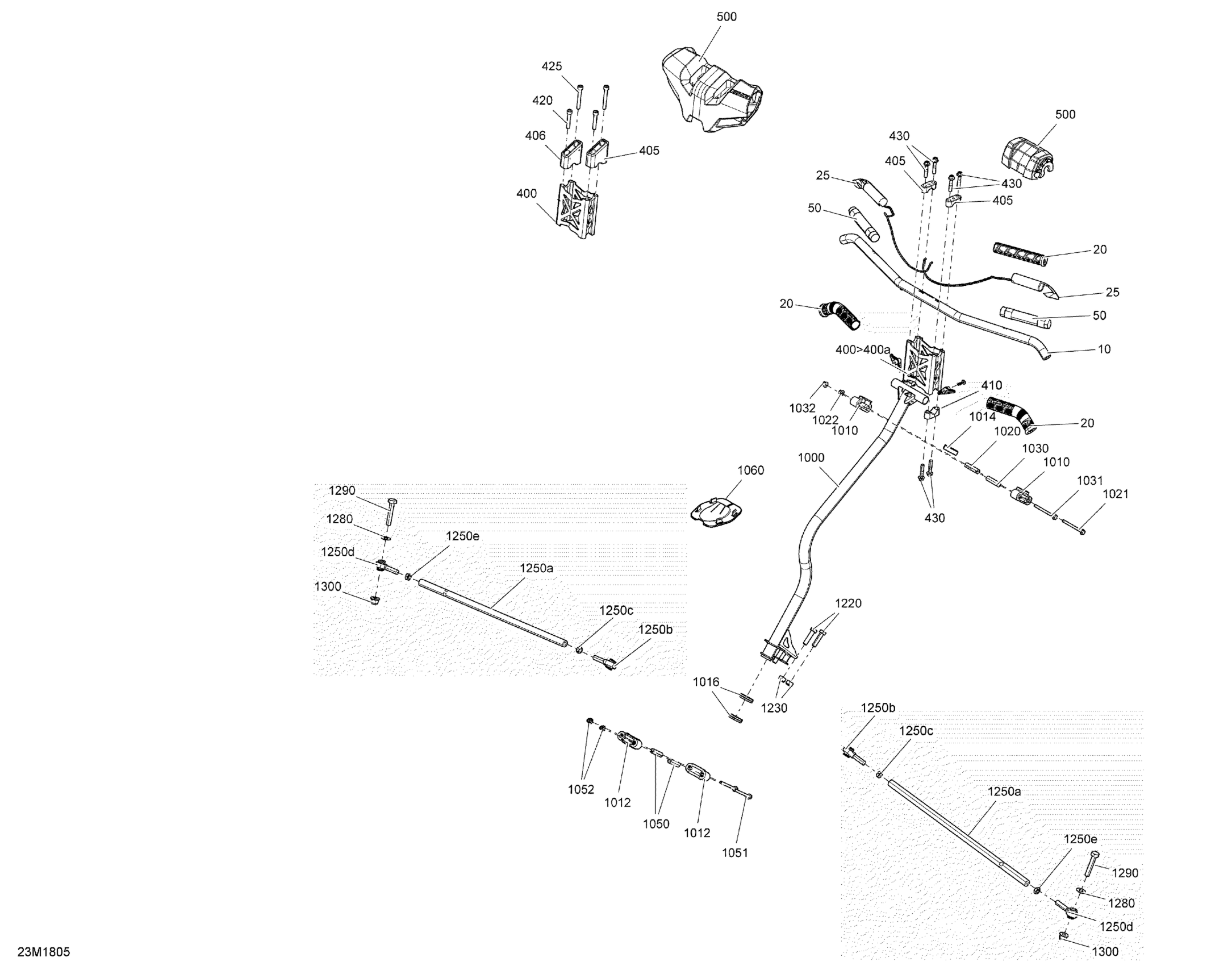

Ski-Doo GRAND TOURING 900 ACE 2018 Steering Diagram

Black Handle Bar

Grip

LH HEATING ELEMENT 20 WATT - Call your local BRP dealership

RH HEATING ELEMENT 20 WATT - Call your local BRP dealership

Insulant

HANDLEBAR EXTENSION 115 - Call your local BRP dealership

LH HANDLEBAR SUPPORT - Call your local BRP dealership

RH HANDLEBAR SUPPORT - Call your local BRP dealership

Steering Support | Includes 40 to 40a

Socket Head Screw M8 X 45

Socket Head Screw M8 X 60

Hex. Flange Screw M8 X 1.25 x 40

STEERING PAD - Call your local BRP dealership

Steering Column

Upper Half-Housing

Lower Half-Housing

Upper Anti-Vibration Gasket

Lower Vibration Ring

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Plate

Hex. Screw M10 X 1.5 X 40

Elastic Locking Nut M10

Tie-Rod Ass'y

LH Thread Ball Joint

LH Threaded Hex. Jam Nut M10

RH Threaded Ball Joint

RH Threaded Hex. Jam Nut M10

Washer

Hex Screw M10 X 1.5 X 55

Hex. Flange Elastic M10 x 1.5

Torx Screw Truss Head K50X20 T20
