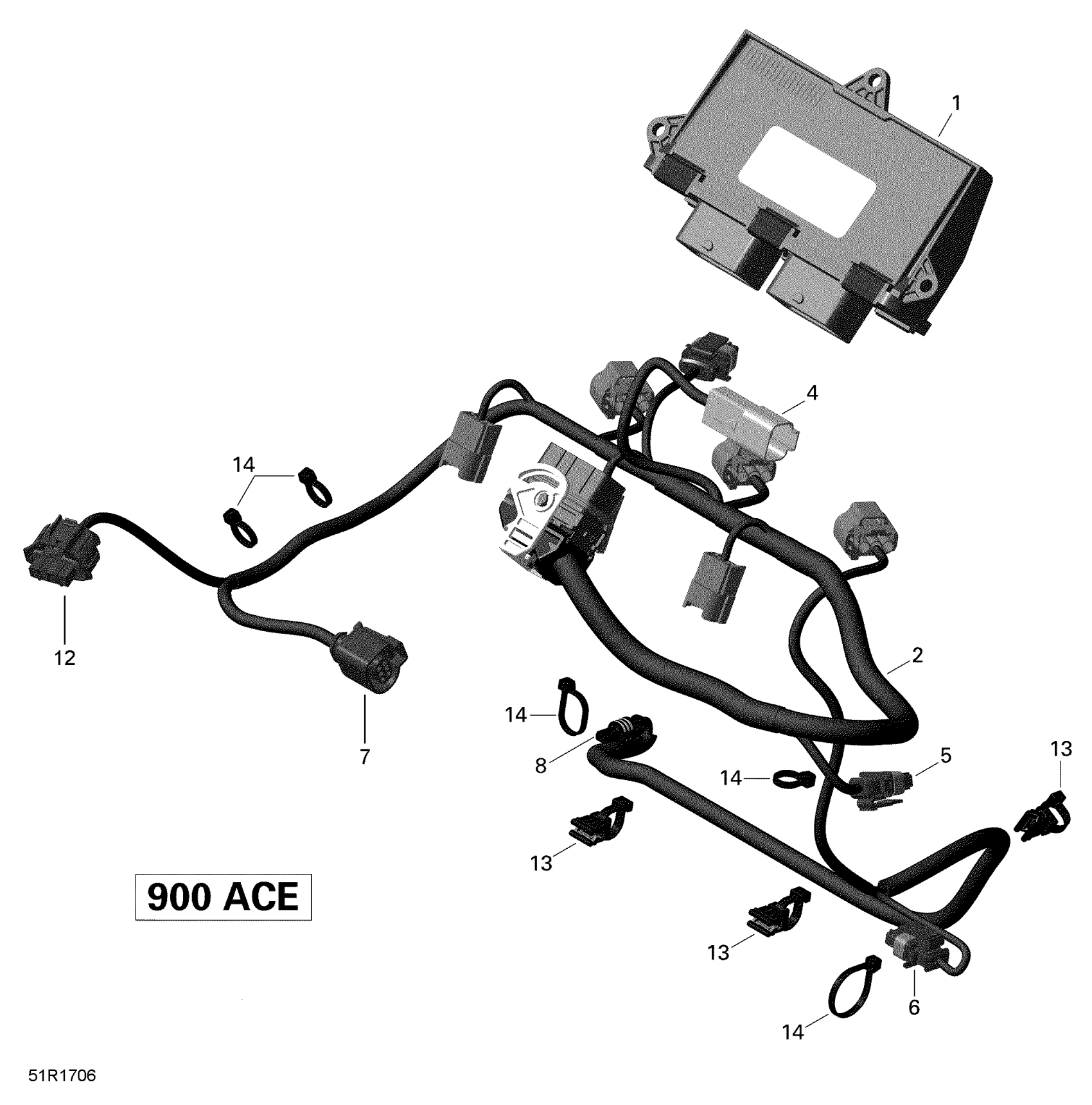

Ski-Doo EXPEDITION SPORT 900 ACE, 2018 Engine Harness and Electronic Module - 900 ACE Diagram

#

Description

Price

1

ECM, Engine Control Module | Except Renegade Enduro

420666934

$859.99

2

Wiring Harness Ass'y

420264420

$294.99

4

Female Housing, 4 Circuits

278000635

$16.49

5

Male Housing, 2 Circuits

278001005

$19.49

6

Male Housing, 2 Circuits

278001005

$19.49

7

Female Housing

515177406

$38.99

7a

Terminal | Except Package PRO, Except 6X6

415130049

$9.49

7b

SEAL-WIRE - Call your local BRP dealership

710001186

Unavailable

8

Male Housing, 1 Circuit

278001012

$16.86

12

Male Connector

515176410

$51.49

12a

Female Terminal

710001137

$4.55

12b

Wire Seal

710001135

$4.02

13

Cable Clamp 150mm

420951650

$4.44

14

Tie Rap

420866714

$1.90
