Description

Price

1

COVER - Call your local BRP dealership

420656700

Unavailable

2

Oil Filler Tube

420656900

$6.01

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Oil Lever Tube | Includes no. 5-6

420856667

$13.16

6

Gasket Ring

420431790

$8.57

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

$18.49

8

Torx Flange Screw M6 X 25

420841549

$2.00

9

Rubber Grommet

420860150

$5.39

10

Pressure Regulating Piston

420256591

$14.22

11

Spring

420239445

$14.22

12

O-Ring

420430622

$4.44

13

Plug Screw

420441372

$10.33

14

Oil Filter

420956124

$20.99

15

O-Ring

420230923

$3.17

16

Oil Filter cover

420612135

$11.63

17

Torx Flange Screw M6 X 20

420440207

$3.06

18

Oil Pressure Switch

420256915

$40.99

19

Oil Sieve

420656680

$11.60

20

Needle Pin

420232731

$4.01

21

Oil Pump Shaft

420820120

$13.16

22

Oil Pump Rotor

420256348

$77.99

23

Needle Pin

420929075

$2.11

24

Oil Pump Cover

420911080

$28.49

25

Torx Flange Screw M6 X 20

420440207

$3.06

26

Needle Pin

420232431

$4.39

27

Oil Pump Gear, 29 Teeth

420834882

$11.60

28

Gear 22 Teeths

420835400

$20.49

29

Spacer

420947394

$24.99

30

Torx Flange Screw M6 X 20

420440207

$3.06

31

Oil Pump Shaft

420837916

$24.99

32

O-Ring

420631830

$2.11

33

Oil Pump Cover

420611950

$56.99

34

Needle Pin

420632221

$4.44

35

Oil Pump Rotor

420256836

$75.99

36

Oil Pump Cover

420611980

$36.99

37

Oil Pump Gear, 28 Teeth

420834887

$11.60

38

Idle Gear, 26 Teeth

420835321

$24.99

39

Gasket

420431871

$11.60

40

Oil Water Heat Exchanger

420656698

$116.49

41

Torx Flange Screw M6 X 45

420440324

$0.98

42

Torx Flange Screw M8 X 16

420440852

$4.12

43

Sealing Ring

420950141

$2.00

44

Plug Screw M12 x 1,5

420241701

$12.63

45

Copper Washer

420250640

$0.98

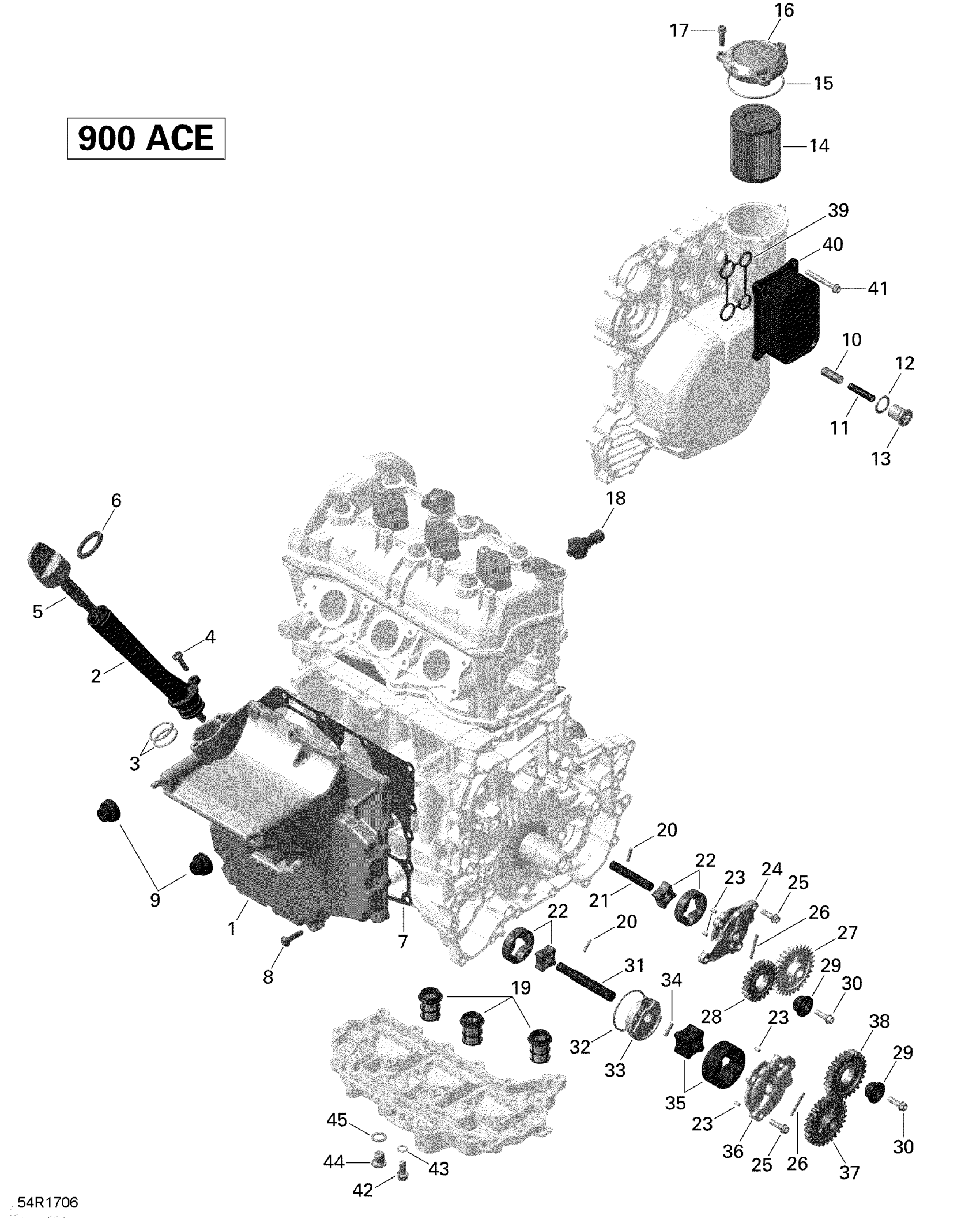

Ski-Doo 3- EXPEDITION SPORT 900 ACE, 2018 01- Engine Lubrication - 900 ACE Diagram

COVER - Call your local BRP dealership

Oil Filler Tube

O-Ring

Torx Flange Screw M6 X 20

Oil Lever Tube | Includes no. 5-6

Gasket Ring

Oil Sump Cover Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

Rubber Grommet

Pressure Regulating Piston

Spring

O-Ring

Plug Screw

Oil Filter

O-Ring

Oil Filter cover

Torx Flange Screw M6 X 20

Oil Pressure Switch

Oil Sieve

Needle Pin

Oil Pump Shaft

Oil Pump Rotor

Needle Pin

Oil Pump Cover

Torx Flange Screw M6 X 20

Needle Pin

Oil Pump Gear, 29 Teeth

Gear 22 Teeths

Spacer

Torx Flange Screw M6 X 20

Oil Pump Shaft

O-Ring

Oil Pump Cover

Needle Pin

Oil Pump Rotor

Oil Pump Cover

Oil Pump Gear, 28 Teeth

Idle Gear, 26 Teeth

Gasket

Oil Water Heat Exchanger

Torx Flange Screw M6 X 45

Torx Flange Screw M8 X 16

Sealing Ring

Plug Screw M12 x 1,5

Copper Washer
