Description

Price

10

Cargo Box Inside Kit

715006551

$449.99

50

Break Up Country, LH Open Carrier Trim | Package XT, Cab, Camo

708304247

$254.99

60

Break Up Country, RH Open Carrier Trim | Model Break Up Country

708304246

$309.99

70

Tuflok Plastic Rivet

293150230

$1.47

80

Torx Screw M6 X 25 | XT Models

250000728

$4.44

90

Flat Washer M6.6 X 22

250200162

$2.32

100

Carriage Bolt M8 X 60

207786044

$14.21

110

Flat Washer 8 mm

234082410

$1.47

120

Hex. Flange Elastic Nut M8

233281414

$1.47

180

Panel Nut M6 X 1.0

250100224

$2.11

190

Panel Nut M6 X 1.0

250100198

$2.11

300

Outside Tailgate

708301227

$124.99

305>305d

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$369.99

305a

Handle Support

708302913

$27.99

305b

Handle

708302911

$25.99

305c

Torx Screw Truss Head K50X20 T20

250000760

$2.11

305d

Washer M5

250200025

$0.74

340

Handle Rod

708301500

$6.59

350

Bushing Hinge

708304564

$3.39

360

Washer

708301653

$2.61

370

Hairpin Cotter

269800431

$1.29

380

Spring

705009468

$5.99

390

Spring

705009470

$13.49

400

Spring

705009471

$13.49

430

LH Tailgate Support

708304219

$24.49

440

RH Tailgate Support

708304221

$28.99

450

Hex. Flange Screw M6 X 35

207663554

$2.11

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

$2.32

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

490

Bushing

293900101

$7.87

500

Cable

708301491

$31.99

540

Latch Stopper

708304062

$10.99

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

$2.11

610

Flat Washer

224061121

$0.53

620

Bushing

293900101

$7.87

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

700

Torx Screw Truss Head K50X20 T20

250000760

$2.11

710

Washer M5

250200025

$0.74

720

Torx Truss Screw M6 X 25

250000807

$2.11

730

Flat Washer M6.6 X 22

250200162

$2.32

800

Cargo Box Frame

708302740

$339.99

830

Rubber Stopper

708001827

$6.89

840

Rubber Bumper

293830005

$8.09

1210

Support Pivot

708303735

$17.49

1220

O-Ring

293300131

$5.29

1600

Latch Ass'y

708302296

$85.99

1610

Cap Latch Lever

708300358

$6.59

1640

Half Ring

705500033

$8.29

1660

Clamp Retainer

708301479

$3.98

1670

Hex. Flange Screw M6 X 16

210261640

$2.11

1720

Spring

708301983

$8.69

1730

Spring

708301984

$4.79

1740

Deflector

708302267

$14.99

1750

Tuflok Plastic Rivet

293150230

$1.47

2000

Gas Shock Absorber

715007129

$54.99

2010

Clevis Pin

250400075

$5.99

2020

Hair Pin

414575600

$1.89

3000

Retaining Plate

708301480

$9.69

3020

Hex. Flange Screw M6 X 20

207662054

$1.01

3300

Reflector

704905074

$13.49

3500

Red Reflector

705011221

$14.49

3520

Elastic Stop Nut M5

232551414

$0.87

4000>4000m

Headache Rack Kit | Includes 4000 to 4000m

708302326

$479.99

4000a

Adjuster Foot

715003498

$158.99

4000b

LH Corner Support

708301759

$39.99

4000c

RH Corner Support

708301760

$39.99

4000d

Hex. Flange Screw M6 X 40

229000037

$2.00

4000e

Hex. Flange Elastic Nut M6

233261494

$1.58

4000f

Hex. Flange Screw M6 X 55

229000023

$2.00

4000g

Cap

705204964

$5.08

4000h

Plate

708301907

$15.87

4000j

Hex Flange Screw M6 X 25

250000841

$7.51

4000k

Bumper

293830179

$4.23

4000m

Pop Rivet 1/8" | SM5

390401600

$5.69

4010

Firearm Support

708302307

$254.99

4011

Hex. Flange Screw M8 x 60

207686044

$3.07

4012

Hex. Flange Elastic Nut M8

233281414

$1.47

4013

Flat Washer M8

250200158

$2.11

4020

FIREARM BOOT CASE - Call your local BRP dealership

705011442

Unavailable

4030>4030c

Tool Holder Kit | Includes 4030 to 4030d

715003059

$66.99

4030a

Tool Holder Base | Package Hunter

705010209

$7.09

4030b

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

4030c

Torx Screw M6 X 30

235563054

$4.44

4040

Firearm Mount

705011441

$129.99

4041

Hex. Flange Screw M10 X 125

230602546

$7.41

4042

Hex. Flange Elastic Nut M10

233201436

$2.11

4060>4060a

Adaptor Kit | Includes 4060 to 4060 a

715003058

$36.99

4060a

Rivet 3/16"

293150102

$0.70

4070

LH Protector Support

708302424

$37.99

4080

RH Protector Support

708302425

$37.99

4090

Flat Washer M8

250200158

$2.11

4100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4110

Hex. Flange Screw M6 X 35

207663554

$2.11

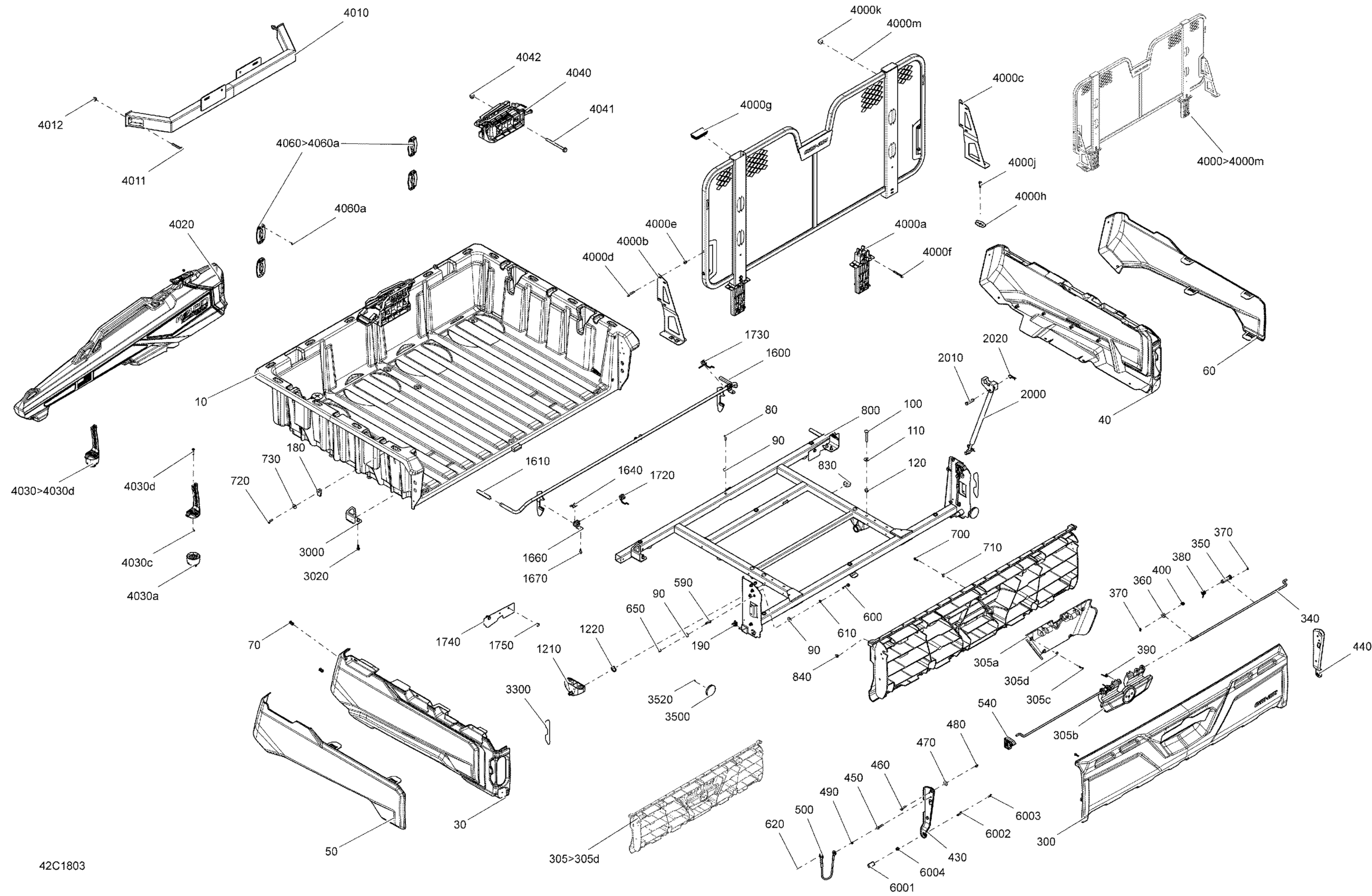

Can-Am Defender HD10, 2018 Rear Cargo Box Defender Package Hunter Diagram

Cargo Box Inside Kit

Break Up Country, LH Open Carrier Trim | Package XT, Cab, Camo

Break Up Country, RH Open Carrier Trim | Model Break Up Country

Tuflok Plastic Rivet

Torx Screw M6 X 25 | XT Models

Flat Washer M6.6 X 22

Carriage Bolt M8 X 60

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

Outside Tailgate

Panel Cargo Box Ass'y | Includes 305 to 305f

Handle Support

Handle

Torx Screw Truss Head K50X20 T20

Washer M5

Handle Rod

Bushing Hinge

Washer

Hairpin Cotter

Spring

Spring

Spring

LH Tailgate Support

RH Tailgate Support

Hex. Flange Screw M6 X 35

Hex. Flange Screw M6 X 25

Flat Washer M6.6 X 22

Hex. Flange Elastic Nut M6 x 1.0

Bushing

Cable

Latch Stopper

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 35

Flat Washer

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw Truss Head K50X20 T20

Washer M5

Torx Truss Screw M6 X 25

Flat Washer M6.6 X 22

Cargo Box Frame

Rubber Stopper

Rubber Bumper

Support Pivot

O-Ring

Latch Ass'y

Cap Latch Lever

Half Ring

Clamp Retainer

Hex. Flange Screw M6 X 16

Spring

Spring

Deflector

Tuflok Plastic Rivet

Gas Shock Absorber

Clevis Pin

Hair Pin

Retaining Plate

Hex. Flange Screw M6 X 20

Reflector

Red Reflector

Elastic Stop Nut M5

Headache Rack Kit | Includes 4000 to 4000m

Adjuster Foot

LH Corner Support

RH Corner Support

Hex. Flange Screw M6 X 40

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 55

Cap

Plate

Hex Flange Screw M6 X 25

Bumper

Pop Rivet 1/8" | SM5

Firearm Support

Hex. Flange Screw M8 x 60

Hex. Flange Elastic Nut M8
