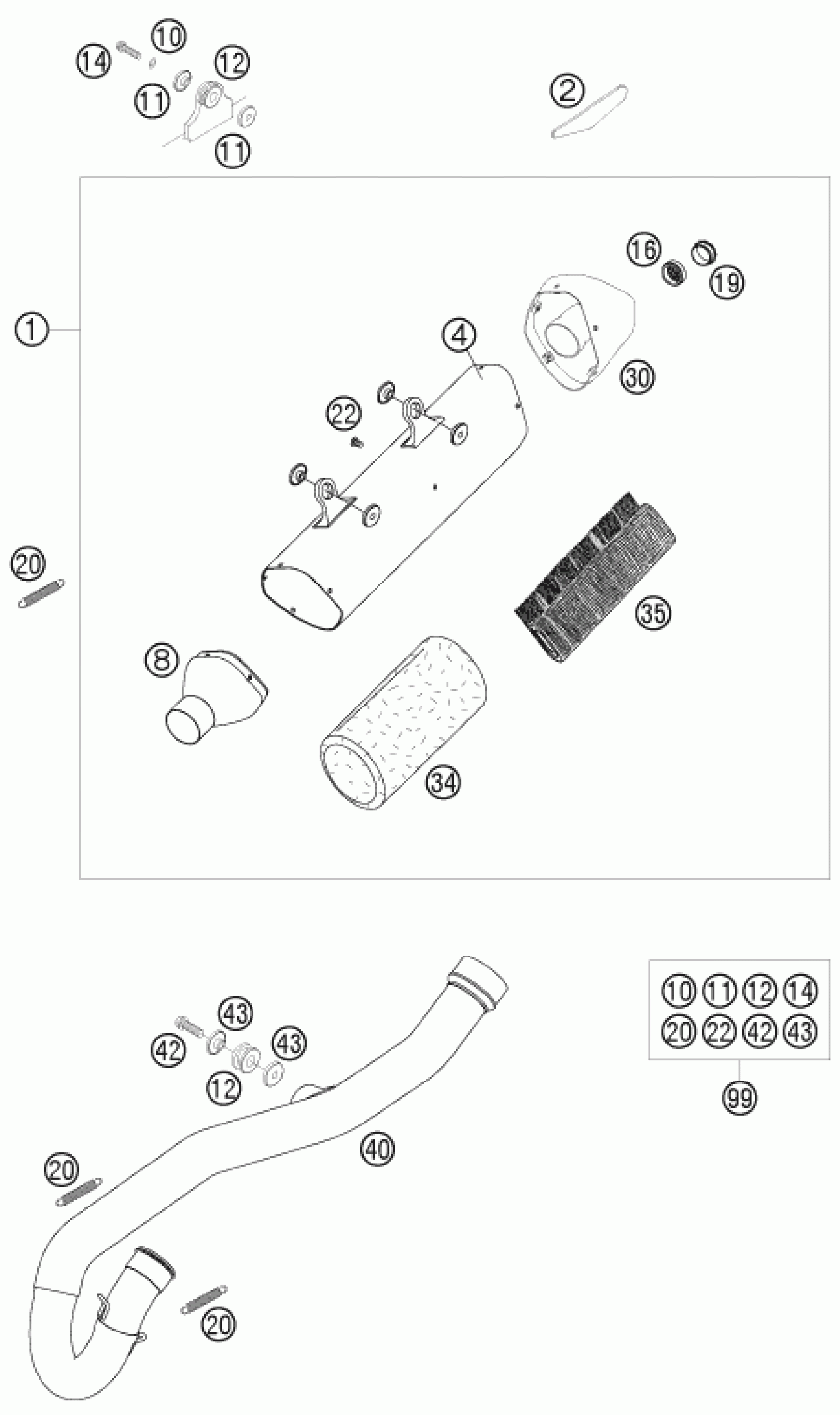

KTM 250 XCF-W SIX DAYS 2011 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST SILENCER SPARKY XCF-W

78005082000

$544.89

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

4

SILENCER HOUSING XC-F USA 08

78005082050

$122.03

8

SIL. CONNECT. CAP CPL.EXC-F 07

77005081009

$119.12

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x7.6 07

77305069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

14

HH collar screw M6x30 TX30

0025060306

$3.08

16

THROTTLE ELEMENT CPL. EXC 07

77005081065

$15.89

19

SIL. ELEMENT EXC-F 07

77005081055

$9.81

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

22

SCREW TORX M5X10 05

58605083010

$2.05

30

ENDCAP SPARKY ATV 08

83005082070

$91.74

34

STUFFINGYARN 315 GRAMS

77005078315

$78.53

35

STUFFING YARN EXC-F 07

77005081016

$41.04

40

EXHAUST MANIFOLD 250 EXC-F 07

77005007100

$409.33

99

EXHAUST PARTS KIT 10-11

00050000809

Unavailable

42

HH collar screw M8x25

0025080256

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54
