Partiron

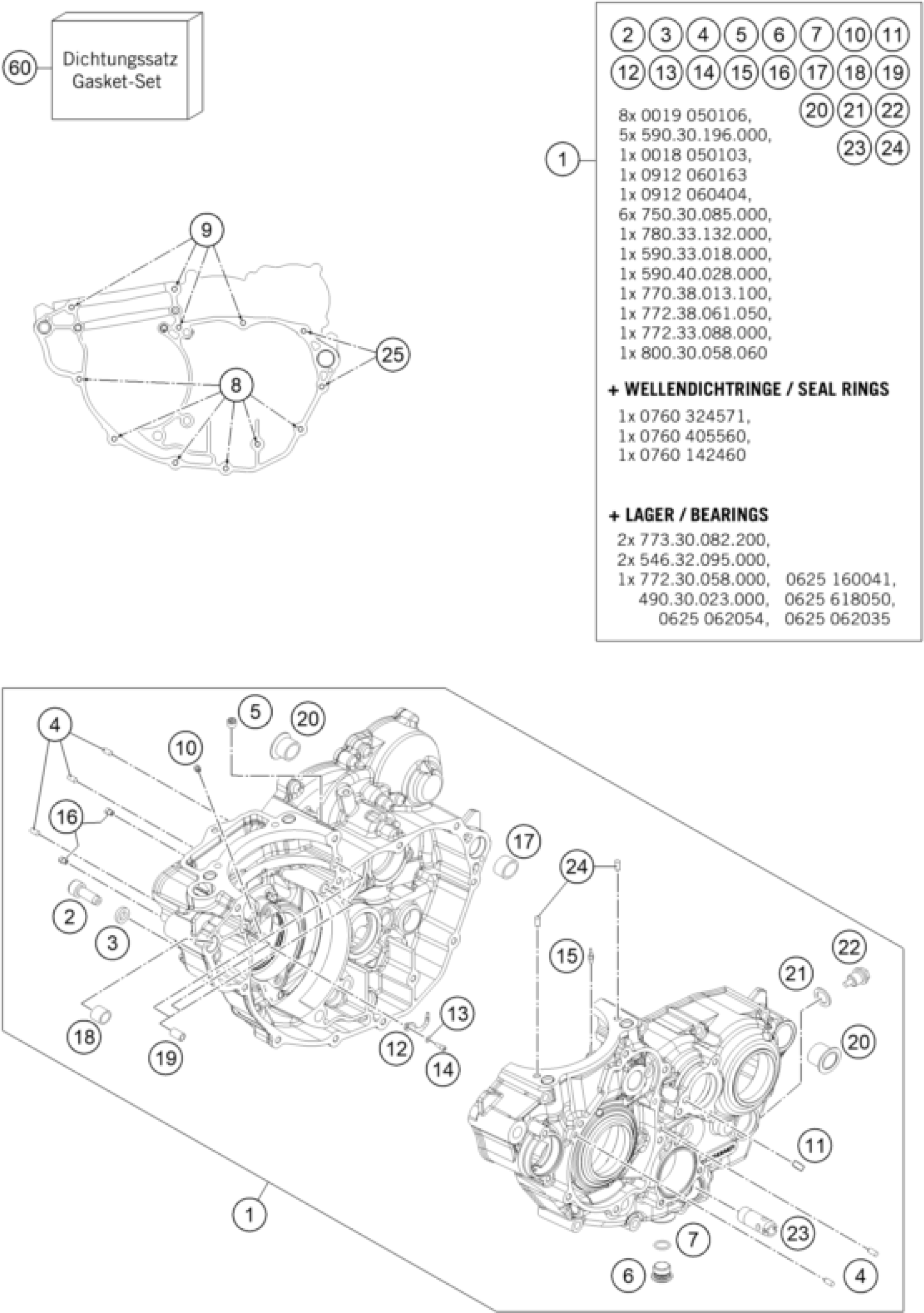

KTM 250 XCF-W 2016 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. 250

77730000344

$1,324.98

2

LOCATING SCREW M8 L=23

58030080000

$17.66

4

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

3

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

5

pipe plug DIN 906 M10x1

0906100100

$4.11

6

HOLDING BOLT M14X1,5

78036081000

$3.08

10

OIL JET ''60'' M4

80030058060

$11.87

11

THROTTLE M5X10X0,5

77230066000

$9.72

12

OIL JET ANGLED 50

81230164050

$11.30

13

O-RING 3,5X2,00 NBR

0770035020

$1.49

14

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

20

CASE BUSH

75030010100

$12.33

15

oil jet 50 M5

60030063050

$9.44

16

JET 100 BING(44-031/180) M4

59030058000

$4.11

17

DOWEL 17 X 19 X 12

59030024000

$5.23

18

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

19

dowel sleeve 6x8x11.5

59030023000

$1.49

21

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

22

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

23

OIL INTAKEPIPE

77038022000

$6.91

24

CYLINDER ROLLER ZRO 5X8

0402050080

$2.05

25

HH COLLAR SCREW M6X85 TX30

0025060856

$3.08

9

HH COLLAR SCREW M6X65 TX30

0025060656

$2.05

7

O-ring 11x1.5 VITON

0770110015

$5.23

8

HH collar screw M6x55 TX30

0025060556

$3.08

60

GASKET SET 250 SX-F

77730099000

$335.47
