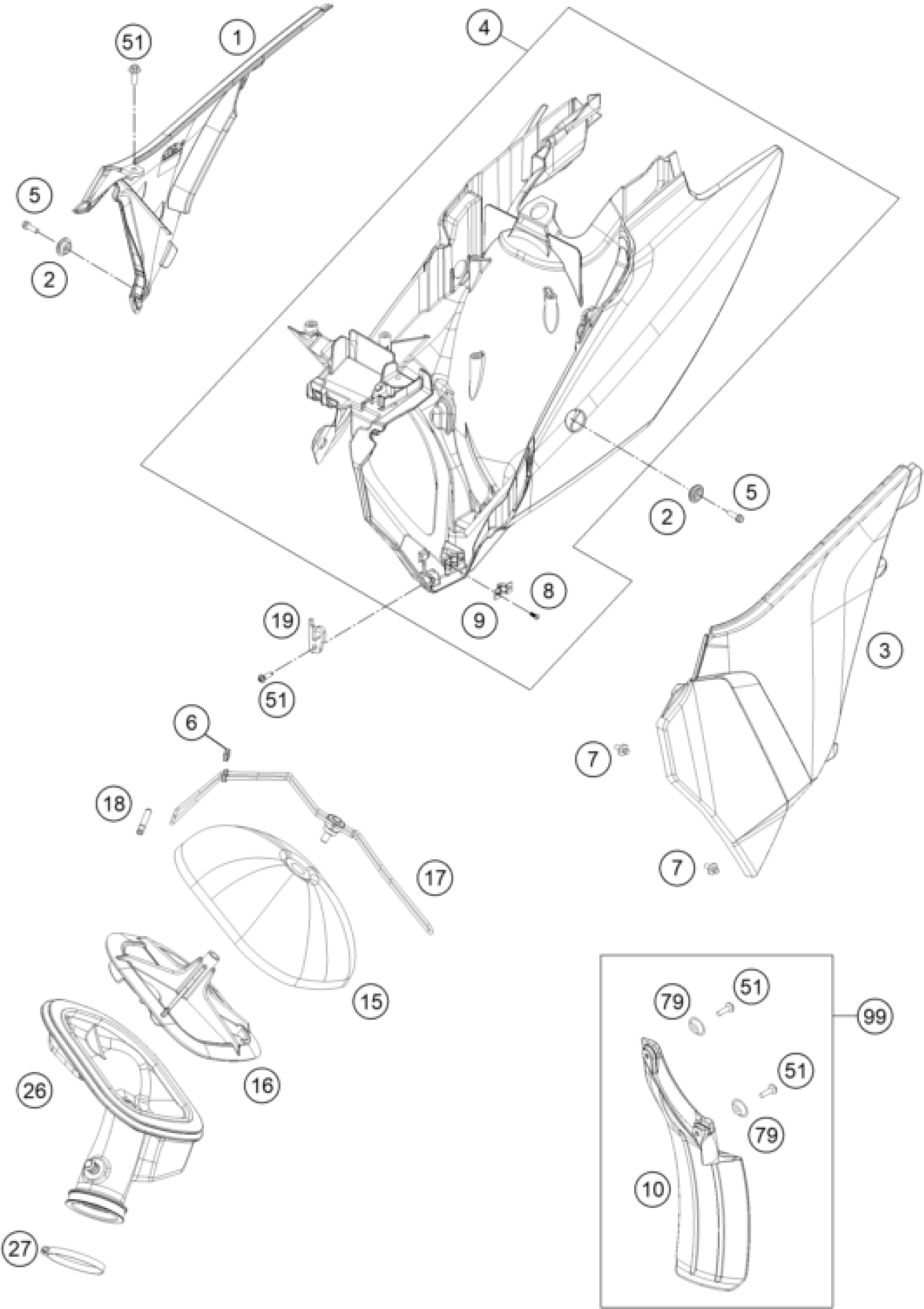

KTM 250 XCF-W 2015 AIR FILTER Diagram

#

Description
Price

2

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

1

AIR BOX COVER RS

7770600420028A

$23.46

4

FILTER BOX CPL. WHITE 13

7770600104428

$41.22

5

HH collar screw M6x20 TX30

0025060206

$3.08

7

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

6

RUBBER SLEEVE 15X22X26

50306017055

$4.11

15

AIR FILTER

77206015000

$32.12

16

FILTER CARRIER 11

77206016000

$24.77

17

FILTER SUPPORT CPL. 11

77206017000

$19.53

18

FILTER SUPPORT BUSH 07

77306018000

$3.08

51

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

79

chain slider bushing

77304066050

$1.49

3

AIR BOX COVER LS

7770600310028A

$22.71

19

FASTEN. DEVICE FILTER S. SX 11

77206019000

$8.41

99

SPLASH PROTECTOR KIT SX/EXC

77306010010

Unavailable

26

AIRBOXRUBBER 350 EFI

77506026000

$63.10

27

HOSE CLAMP 45-65MM

78006027000

$5.23

8

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

9

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

10

FENDER FOR FILTER BOX

77306010000

$20.84
