VALVE DRIVE

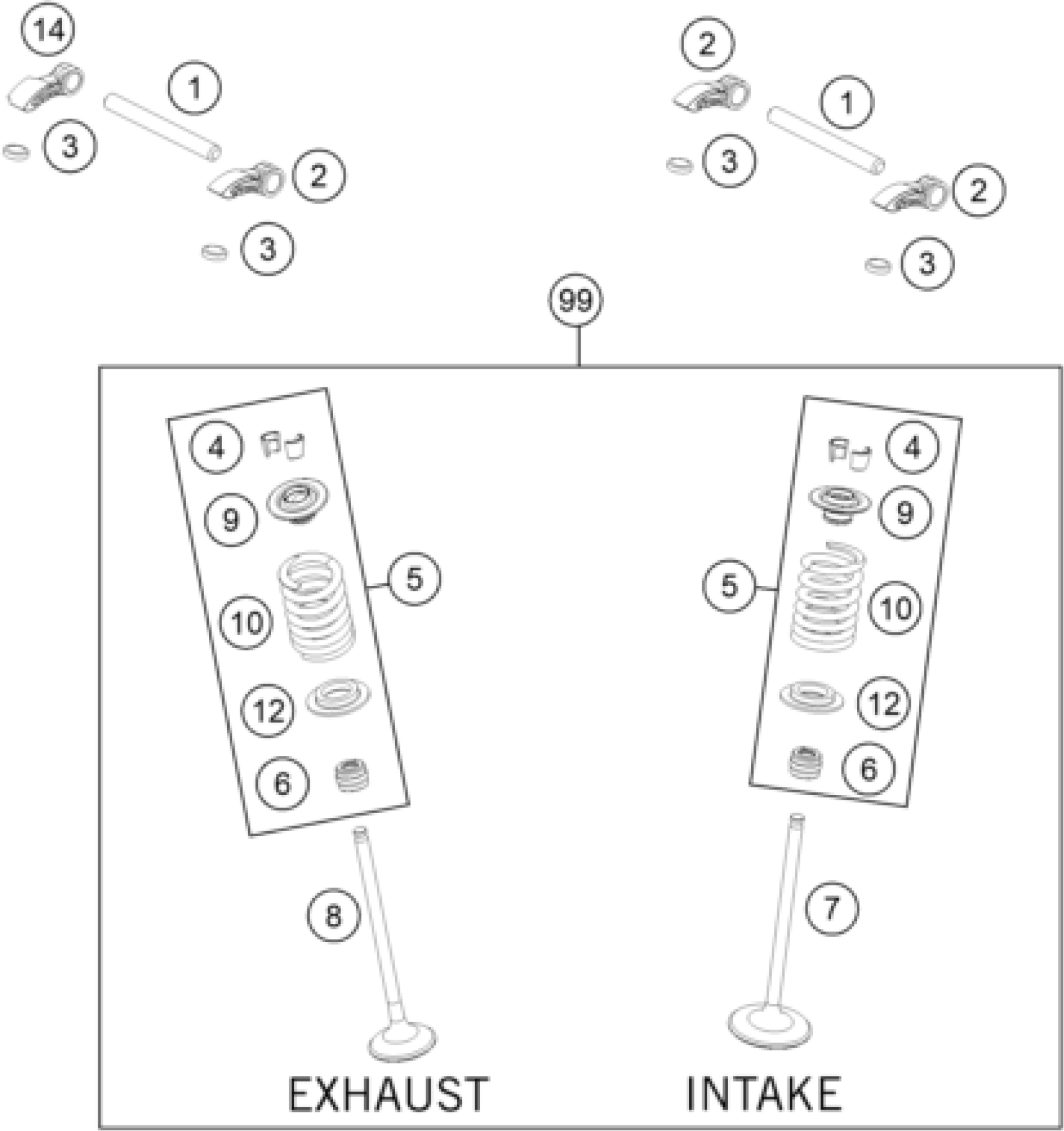

KTM 250 XCF-W 2014 VALVE DRIVE Diagram
#
1
VALVE LEVER SHAFT
77236056000
$7.00
2
VALVE LEVER
77236060000
$100.04
3
SHIM D=8,9/1,76
77036035176
Unavailable
3
SHIM D=8,9/1,80
77036035180
Unavailable
3
SHIM D=8,9/1,84
77036035184
Unavailable
3
SHIM D=8,9/1,88
77036035188
Unavailable
3
SHIM D=8,9/1,92
77036035192
Unavailable
3
SHIM D=8,9/1,96
77036035196
Unavailable
3
SHIM D=8,9/2,00
77036035200
Unavailable
3
SHIM D=8,9/2,04
77036035204
Unavailable
3
SHIM D=8,9/2,08
77036035208
Unavailable
3
SHIM D=8,9/2,12
77036035212
Unavailable
3
SHIM D=8,9/2,16
77036035216
Unavailable
3
SHIM D=8,9/2,20
77036035220
Unavailable
3
SHIM D=8,9/2,24
77036035224
Unavailable
3
SHIM D=8,9/2,28
77036035228
Unavailable
3
SHIM D=8,9/2,32
77036035232
Unavailable
3
SHIM D=8,9/2,36
77036035236
Unavailable
3
SHIM D=8,9/2,40
77036035240
Unavailable
3
SHIM D=8,9/2,44
77036035244
Unavailable
3
SHIM D=8,9/2,48
77036035248
Unavailable
3
SHIM D=8,9/2,52
77036035252
Unavailable
3
SHIM D=8,9/1,72
77036035172
Unavailable
3
SHIM D=8,9/2,56
77036035256
Unavailable
3
SHIM D=8,9/2,60
77036035260
Unavailable
4
valve collet
77036033000
$5.23
5
VALVE SPRING KIT
77736128244
$94.24
6
VALVE-STEM SEALING 05
77036027000
$6.44
7
INTAKE VALVE
77736030000
$105.90
8
EXHAUST VALVE
77736031000
$133.87
9
VALVE SPRING PLATE
77736232000
$18.88
10
VALVE SPRING INSIDE
77036028300
$18.69
12
VALVE SPRING HOLDER
77536036100
$7.56
14
VALVE LEVER
77736060000
$102.56
99
VALVE KIT 250 EXC-F,XCF-W 14
77736030110
$643.36
