CRANKSHAFT, PISTON

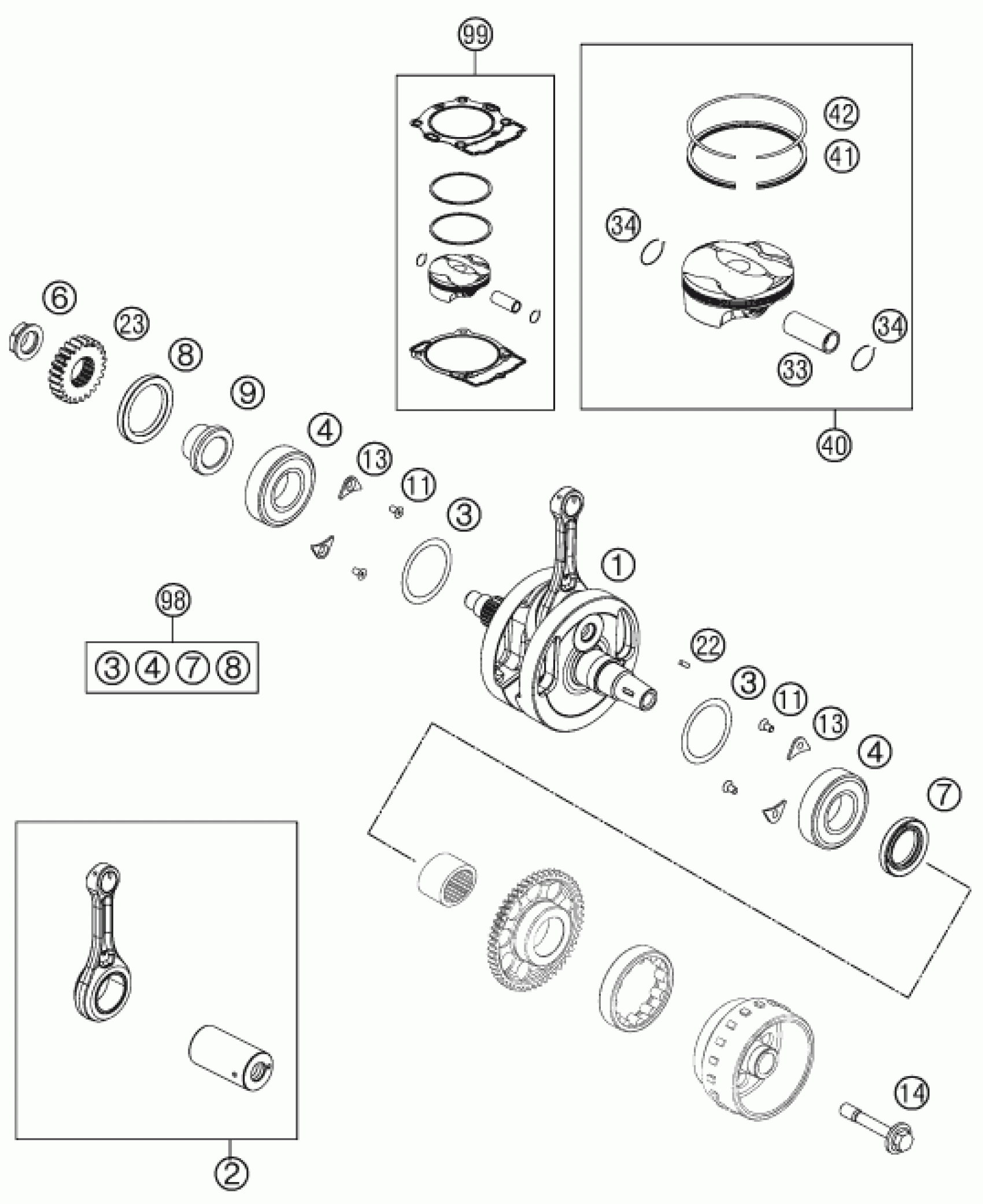

KTM 250 XCF-W 2014 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
CRANKSHAFT CPL.
77730118000
$963.79
2
CONNECTING ROD REPAIR SET
77730015144
$494.61
3
THRUST WASHER 988ST 32X0,1
0988324510
Unavailable
3
THRUST WASHER 988ST 32X0,15
0988324515
Unavailable
3
THRUST WASHER 988ST 32X0,30
0988324530
Unavailable
4
BEARING NJ 206 ECP/HN3C4HVA624
77330082200
$93.87
6
NUT PRIMARY WHEEL
77230029000
$4.29
7
SH.SEAL RING 30X47X7 BSL VITON
0760304772
$20.37
8
SHAFT SEAL RING A40x55x6 VITON
0760405560
$11.87
9
SPACER BUSHING PRIMARY GEAR
77232022000
$11.02
11
hex lobe countersunc screw M5x
0019050106S
$2.05
13
RETAINING PLATE F. CS BEARING
75030085000
$1.49
14
FLYWHEEL SCREW
77339010100
$5.60
22
WOODRUFF KEY DIN6888-3X3,7
0888030037
$2.05
23
PRIMARY GEAR 24T.
77232023024
$94.52
33
PISTON PIN
77730033200
$47.30
34
CIRCLIP 16X1.4 MM
77730074000
$11.30
40
PISTON I CPL. 250
77730007100 I
Unavailable
40
PISTON II CPL. 250
77730007100 II
Unavailable
41
SCRAPER RING 250
77730032000
$54.69
42
COMPRESSIONRING 250
77730030000
$40.94
98
CRANKSHAFT REP. KIT SX-F 13-15
00050002311
Unavailable
99
PISTON KIT GR.I 250 SX-F13-14
00050000222
Unavailable
99
PISTON KIT GR.II 250 SX-F 13
00050000223
Unavailable
