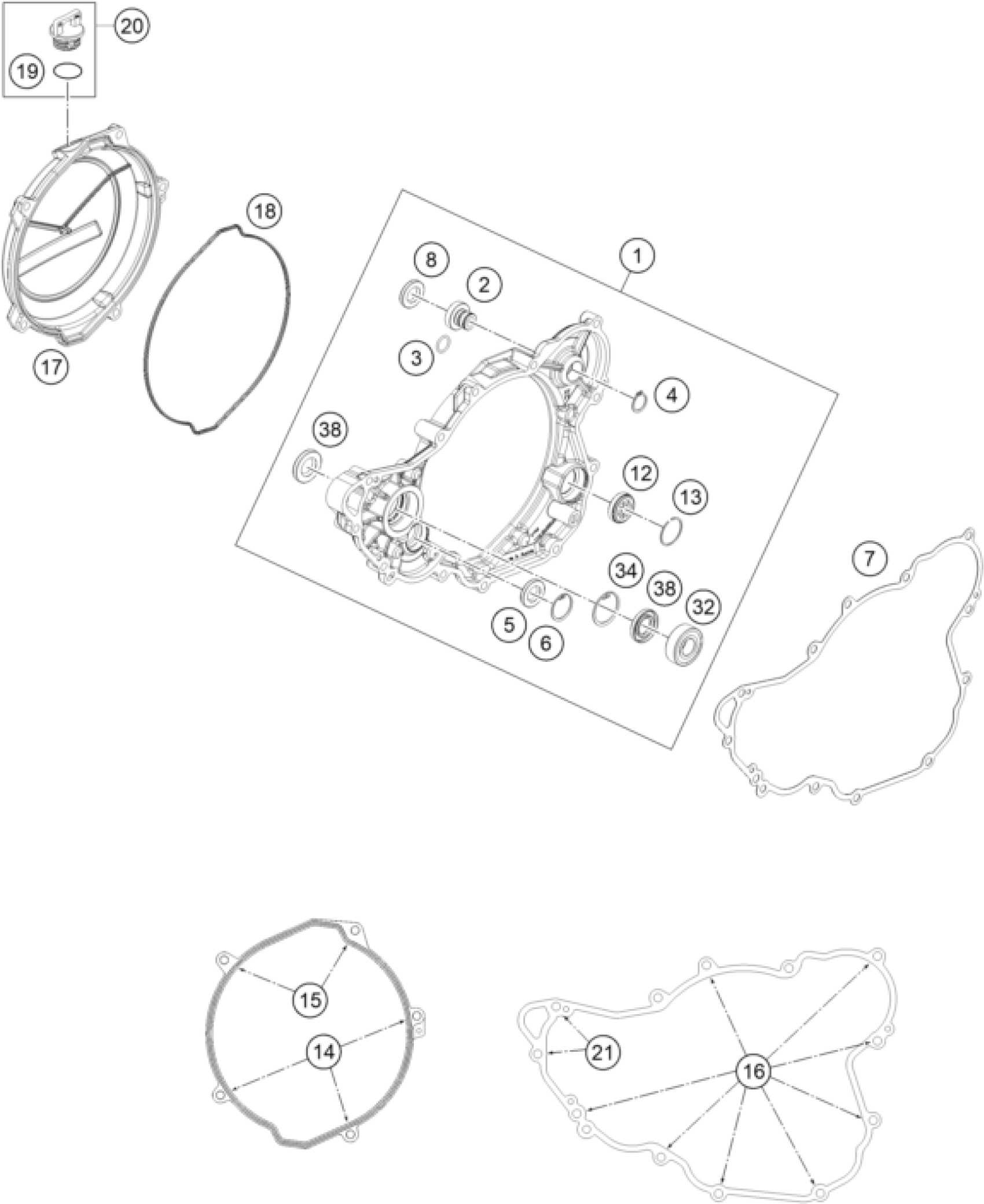

KTM 250 XCF-W 2014 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

77230001144

$199.05

2

PLUG STARTING LEVER

77230001010

$11.02

3

O-RING 14,00X2,00

0770140200

$2.05

4

CIRCLIP DIN0471-17X1

0471170010

$2.05

6

CIRCLIP DIN0472-24X1.2

0472024120

$1.49

7

CLUTCH COVER GASKET

77230025000

$24.40

8

SHAFT SEAL RING 17X28X7 B

0760172870

$8.03

5

SHAFT SEAL RING 14X24X5 VITON

0760142450

$16.07

12

OIL SIGHT GLASS

59030019200

$21.31

13

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

14

HH collar screw M6x20 TX30

0025060206

$3.08

15

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

16

HH collar screw M6x25 TX30

0025060256

$3.08

17

CLUTCH COVER OUTSIDE

7723002600015

$92.93

18

GASKET FOR OUTER CLUTCH COVER

77230027000

$13.83

19

O-RING 19,00X3,00 NBR

0770191015

$2.05

20

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

21

HH collar screw M6x40 TX30

0025060406

$3.08

32

BALL BEARING 6202 C0 2

0625062022

$14.48

34

CIRCLIP 30X1,2

0472300120

$1.49

38

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82
