Description

Price

13

CLAMP ABA 14MM

77507017000

$5.23

1

GASKET KIT

78107089000

$71.80

2

FILTER KIT

81207090000

$76.29

3

FUEL PUMP CPL. EXC

78107088000

$424.76

4

NUT FUEL PUMP M12

78107088114

$8.78

5

CONNECTOR FUEL PUMP 2012

78107088117

$11.40

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

FUEL HOSE TANK

78107116000

Unavailable

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE PREFORMED THR.BODY

77407016000

$20.94

11

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

PLUG CPC

7720701000030

$37.02

20

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

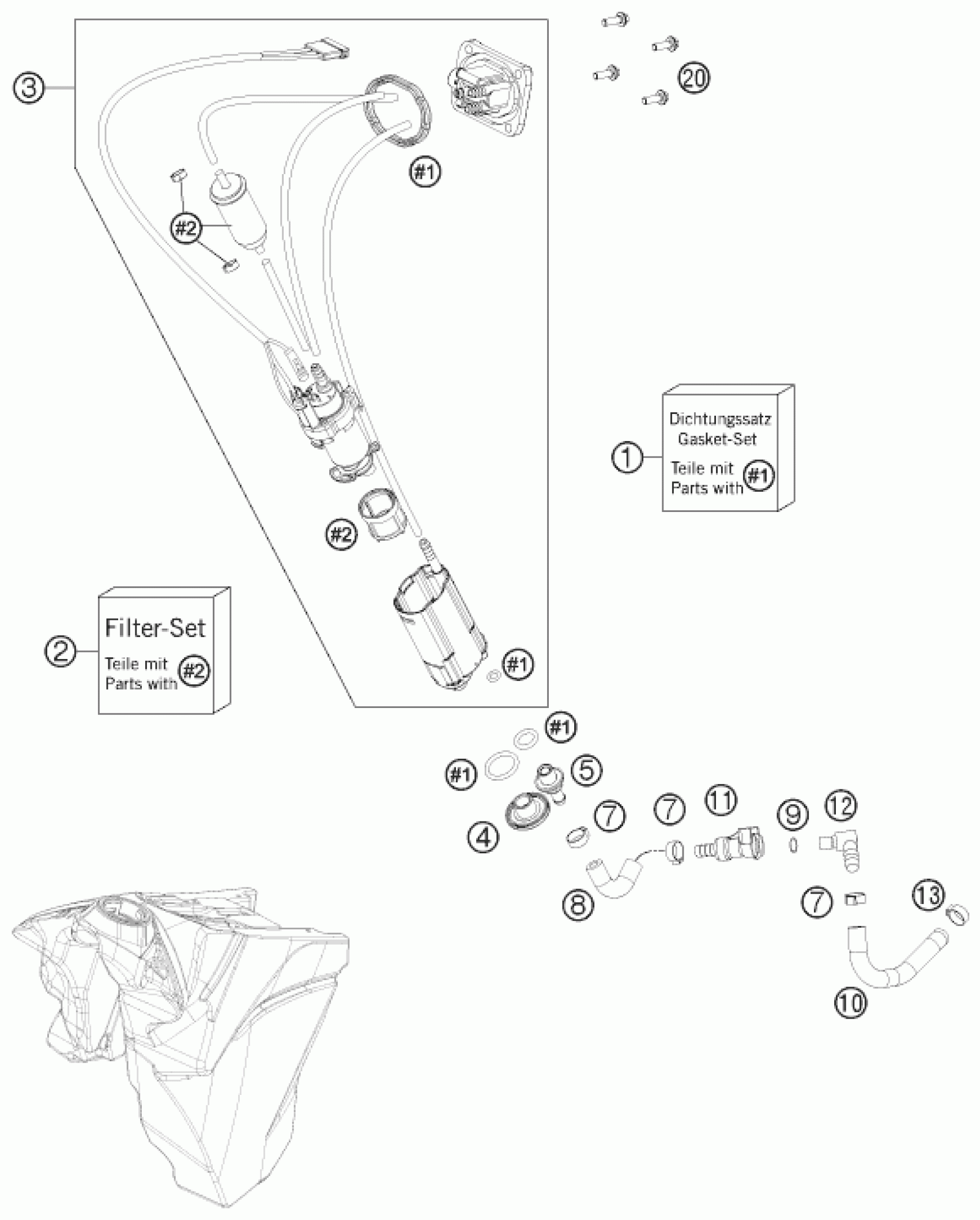

KTM 250 XCF-W 2012 FUEL PUMP Diagram
