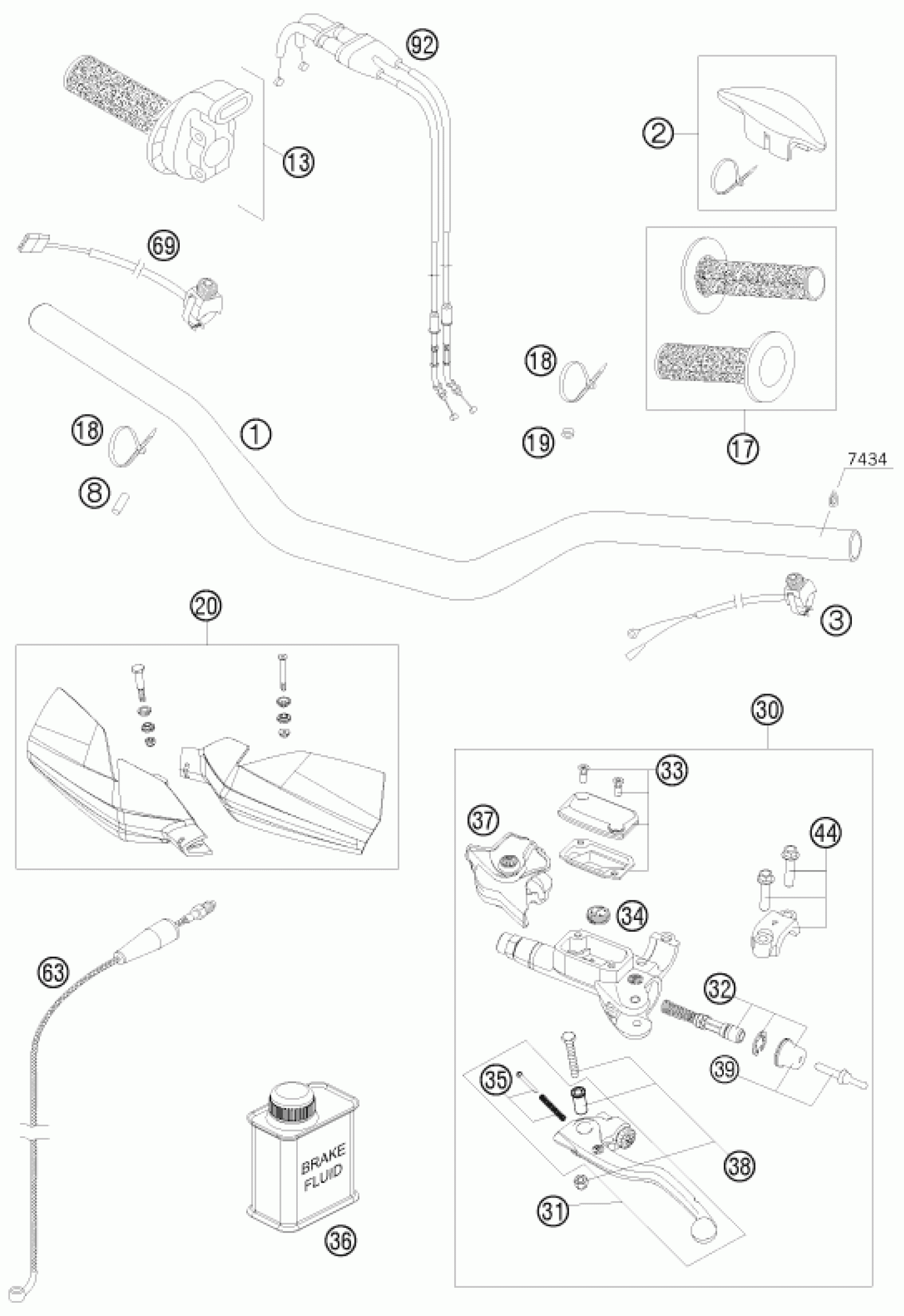

KTM 250 XCF-W 2010 HANDLEBAR, CONTROLS Diagram

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

$183.06

BAR PAD CPL.

77202002000

Unavailable

Kill switch

50311089200

$37.58

HOSE 7X11,5X15

78011016015

$3.48

THROTTLE GRIP CPL. 4-ST. 09

77002010100

$44.59

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

SPACER BUSHING 6X10X5

50301089000

$2.05

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

$34.85

MASTER CYLINDER CPL. 06

54802030044

$240.57

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

REP. KIT PISTON 06

54802032000

$49.92

COVER HYD. CLUTCH CPL.

54802003000

$33.46

VALVE

54802051000

$19.16

BOLT KPL.

54802052000

$29.35

Brake fluid DOT5.1 0,25L

00062030000

$12.52

PROTECTION CAP 06

54802037000

$20.94

Lever screw cmpl. 06

54802038100

$39.82

Push rod cmpl.

54802046000

$23.46

CLAMP CPL. 06

54802005100

$25.80

CLUTCH PIPE 06

54832063000

$100.32

STARTER CONTROL 04

59411074000

$42.91

THROTTLE CABLE 250 SXF 2005

77002091000

$75.17
