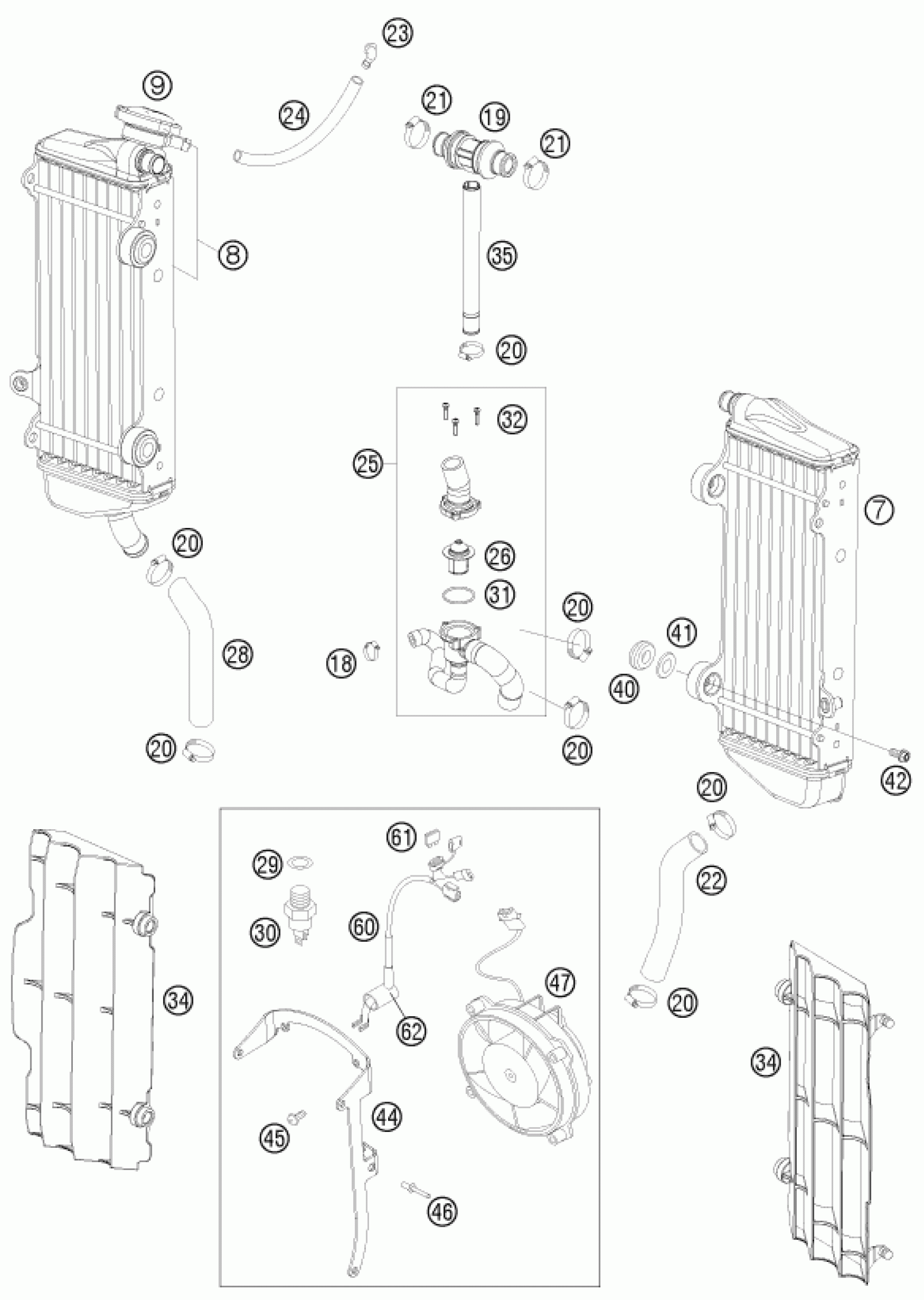

KTM 250 XCF-W 2008 COOLING SYSTEM Diagram

#

Description
Price

41

WASHER FOR RADIATOR 08

77335001000

$2.05

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

42

COLLAR SCREW M6X12 TX

0023060123

$2.05

29

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

30

THERMOSWITCH 95-100 DG

78035045000

$39.09

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

19

T-CONNECTOR CPL. ´07

77335026000

$53.57

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP GEMI 12/22

42013037200

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

COOL.HOSE CPL. W. THERM.70° 08

77035026033

$99.60

26

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

31

O-RING 32,00X2,00

0770320020

$2.05

32

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

34

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

22

RADIATOR HOSE L/S, R/S 250 SXF

77035025000

$11.40

28

RADIATOR HOSE R/S 07

77035027100

$10.93

8

RADIATOR R/S ''45556'' 08

78035008000

$269.27

7

RADIATOR L/S 250 SX-F 07

77035007100

$285.26

46

RIVET 4,0X 8 ALU

0011400800

$1.49

35

HOSE CONNECTOR 4 STROKE 07

77335073000

$18.97

44

FAN SUPPORT EXC

78035043000

$63.74

45

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

47

FAN CPL. 12V LC4 2000

58435041000

$137.53

60

FAN WIRING HARNESS 2001

59011079000

$41.13

61

FUSE 5 A 2003

58011109105

$2.05

18

HOSE CLAMP GEMI 10-16

58335099000

$4.11

62

PROTECTION CAP THERMOSWITCH

58311096000

$9.06
