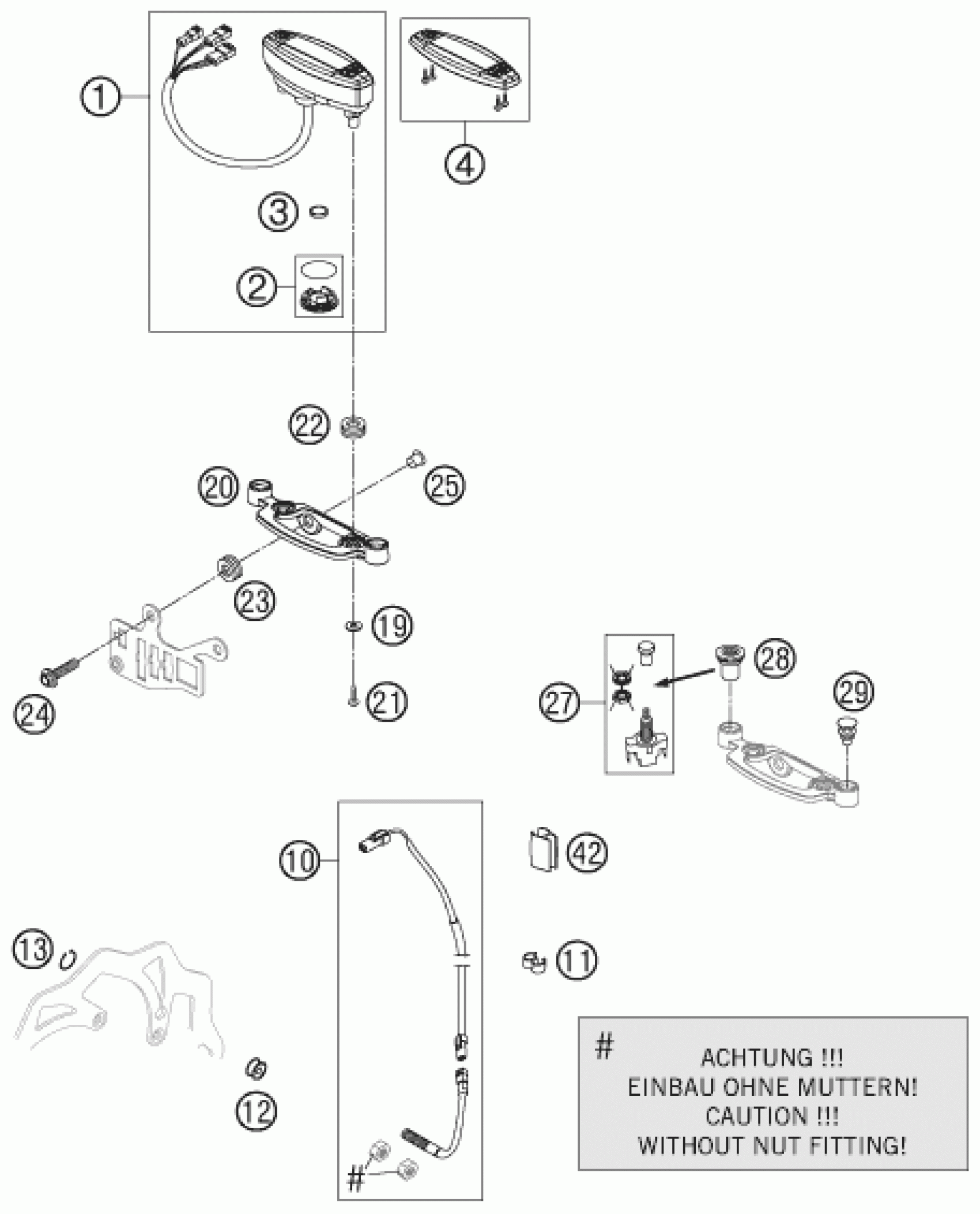

KTM 250 XCF-W 2007 INSTRUMENTS / LOCK SYSTEM Diagram

SPEEDOMETER KM/H F. 21'' 200

54814069000

$282.46

BATTERY COVER F. SPEEDOM. 2005

54814069010

$12.33

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

SPEEDOMETER TOP PART 05

54814069020

$35.80

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

CLAMP D=6/8MM, BLACK

55011022100

$2.05

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49

SCREW FOR PLASTIC 50X12

0016050121

$2.05

SPEEDOMETER BRACKET 05

54814060000

$5.51

rubber grommet 16x10.8x3

58214069051

$5.23

rubber grommet D=8mm open

31008060000

$2.05

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

spacer bushing for speedometer

58314060050

$5.23

PULL SWITCH LOOSE

55011599000

$23.09

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

Plug SFL16

50210086000

$3.08

CABLE SUPPORT 10/6MM 06

54813026000

$2.05
